As a facility manager or pool maintenance professional, understanding the intricacies of flow meters and water quality monitoring systems is crucial for operational excellence. This comprehensive guide will equip you with professional knowledge about proper installation, routine maintenance, and troubleshooting techniques for your pool's critical monitoring equipment. You'll learn how to ensure accurate measurements, maintain optimal water chemistry, and extend the lifespan of your monitoring devices.
Understanding Pool Flow Meters: The Heart of Your Circulation System
Flow meters are essential components that measure water movement through your pool's filtration system. Accurate flow measurement ensures proper chemical distribution, efficient filtration, and compliance with health regulations.

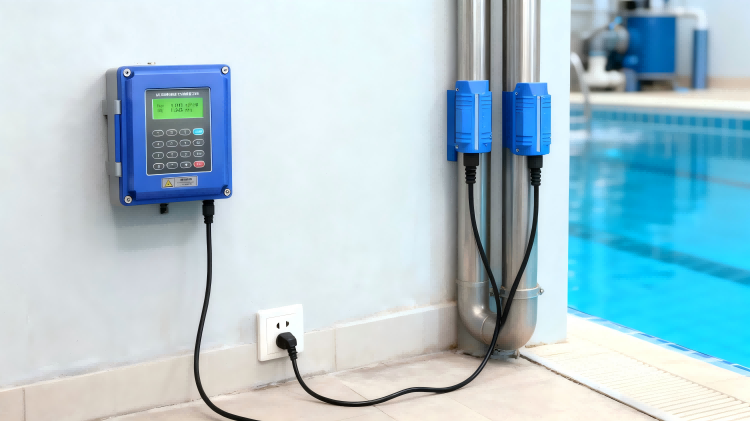

Figure 1: GAIMC GUF120A-W ultrasonic flow meter installed in pool circulation system
Installation Best Practices for Pool Flow Meters
Proper Positioning
Install flow meters in straight pipe sections (minimum 10 pipe diameters upstream and 5 downstream)
Sensor Alignment
Ensure proper sensor alignment for ultrasonic models like the GAIMC GUF120A-W
Mounting Specifications
Position according to manufacturer specifications for clamp-on or insertion models
Water Quality Monitoring Systems: Ensuring Safe Swimming Conditions
Modern water quality monitoring goes beyond basic pH and chlorine testing. Advanced systems track multiple parameters simultaneously to maintain perfect water balance.

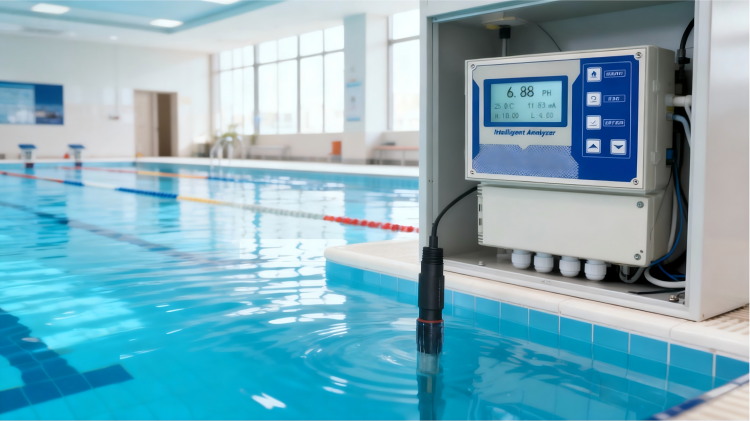

Figure 2: GAIMC GWQ-MP100 multi-parameter water quality monitoring system
Key Monitoring Parameters and Their Importance
pH Levels
Maintain between 7.2-7.6 for optimal disinfectant effectiveness
Chlorine Levels
Keep within 1-3 ppm for proper sanitation and swimmer safety
Total Alkalinity
Stabilize between 80-120 ppm to prevent pH fluctuation
GAIMC Product Comparison
|
Feature
|
GUF120A-W Ultrasonic Flow Meter
|
GWQ-MP100 Multi-Parameter Analyzer
|
|
Measurement Type
|
Non-invasive ultrasonic flow measurement
|
Multi-parameter water quality analysis
|
|
Key Parameters
|
Flow rate, total flow, velocity
|
pH, ORP, conductivity, temperature
|
|
Accuracy
|
±1% of reading
|
±0.1 pH, ±1°C temperature
|
|
Installation
|
Clamp-on, no pipe modification
|
Wall-mounted with sensor inputs
|
|
Communication
|
MODBUS, 4-20mA output
|
MODBUS RTU, relay outputs
|
GAIMC Professional-Grade Solutions
For commercial and institutional pool applications, consider these reliable monitoring solutions:
GUF120A-W Ultrasonic Flow Meter
Advanced clamp-on ultrasonic flow meter with exceptional accuracy for chemical dosing and circulation monitoring.
-
Non-invasive installation without pipe modification
-
High accuracy ±1% of reading
-
IP68 waterproof rating
-
MODBUS and 4-20mA output options
GWQ-MP100 Multi-Parameter Water Quality Analyzer
Comprehensive water quality monitoring system tracking multiple critical parameters simultaneously.
-
Simultaneous measurement of pH, ORP, conductivity, temperature
-
Automated chemical feed control outputs
-
Large LCD display with real-time data logging
-
Remote monitoring and alarm capabilities
Source References
This guide incorporates technical standards and best practices from:
-
National Swimming Pool Foundation (NSPF) Technical Standards
-
ANSI/APSP/ICC-11 2019 American National Standard for Water Quality
-
International Aquatic Facility Standards
-
GAIMC GUF120A-W & GWQ-MP100 Technical Documentation
Frequently Asked Questions
What are the advantages of ultrasonic flow meters like GUF120A-W for pool applications?
Ultrasonic flow meters offer non-invasive installation, no pressure drop, and minimal maintenance. The GUF120A-W specifically provides excellent accuracy without requiring pipe cutting or system shutdown during installation.
Can the GWQ-MP100 multi-parameter analyzer integrate with existing pool control systems?
Yes, the GWQ-MP100 features multiple communication protocols including MODBUS RTU, 4-20mA analog outputs, and relay contacts for seamless integration with most building management and pool control systems.
How does the GUF120A-W handle different pipe materials in pool systems?
The GUF120A-W ultrasonic flow meter is compatible with various pipe materials including PVC, CPVC, stainless steel, and copper commonly used in pool systems. The device automatically adjusts signal processing based on pipe material characteristics.
What maintenance is required for the GWQ-MP100's multiple sensors?
The GWQ-MP100 requires weekly calibration for pH and ORP sensors, monthly cleaning of all sensors, and quarterly performance verification. The system includes automated calibration reminders and sensor diagnostics to simplify maintenance.
Ready to Optimize Your Pool Monitoring Systems?
Get professional solutions tailored to your aquatic facility's specific needs with GAIMC's industrial-grade monitoring equipment.
All GAIMC systems include comprehensive technical support, installation guidance, and maintenance training.
