GTS100
  • GTS100

NTC Temperature Sensor

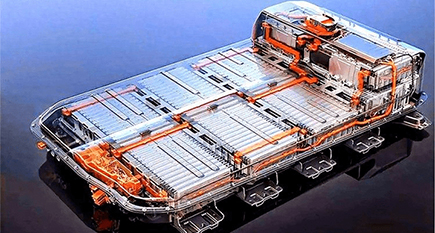

GTS100 ntc temperature sensor is an ntc thermistor with a negative temperature coefficient, which is packaged into a shell of different materials and structures using materials such as high thermal conductivity silicone grease, and the signal is led out through cables of different specifications to achieve temperature monitoring and control. It is widely used in various application scenarios such as household appliances (such as refrigerators, air conditioners, etc.), New energy vehicle(BMS, charging piles etc.) industry, and medical care.

> Solution

Temperature range: -40~+300℃

R value: 1KΩ~1400KΩ (1KΩ, 5KΩ, 10KΩ, 50KΩ, 100KΩ), etc.

Accuracy: ±1%

B value: 3270K~4650K ( 3470K, 3892K, 3950K, 3977K), etc.

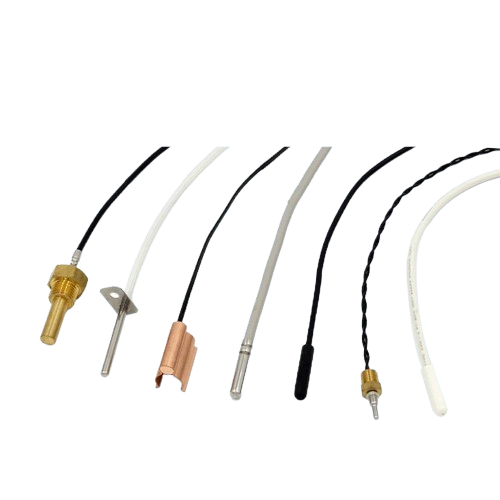

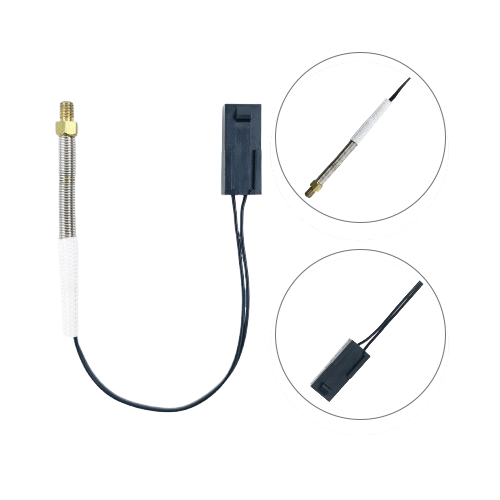

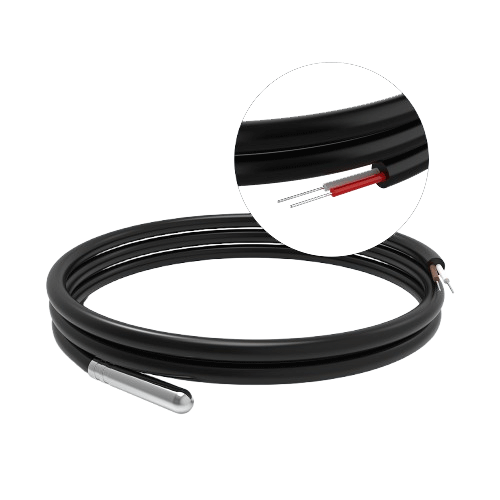

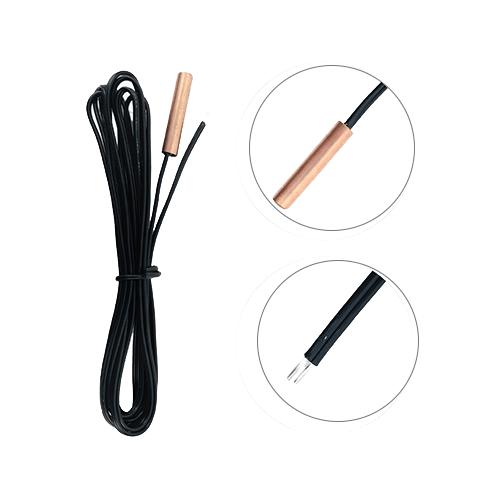

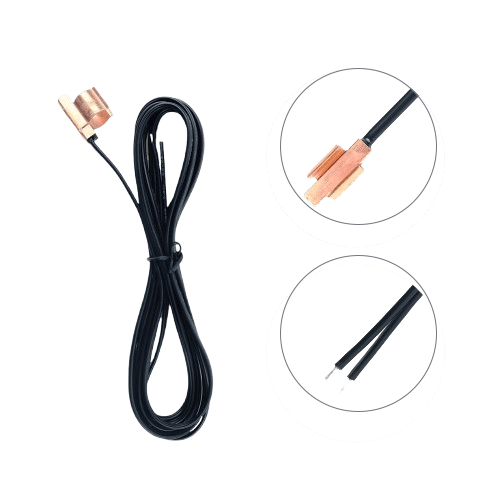

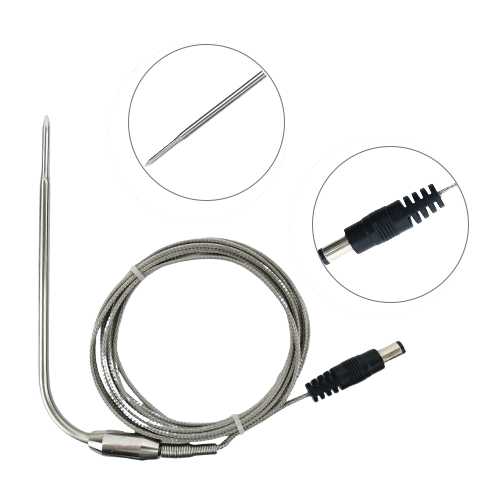

Probe type: straight pipe, thread, epoxy resin, etc.

Probe material: stainless steel, ABS, aluminum, PTFE, etc.

Cable material: PVC, TPE, silicone, PTFE, , glass fiber, etc.

Connectors: Molex, JST, DuPont, etc.

Characteristics

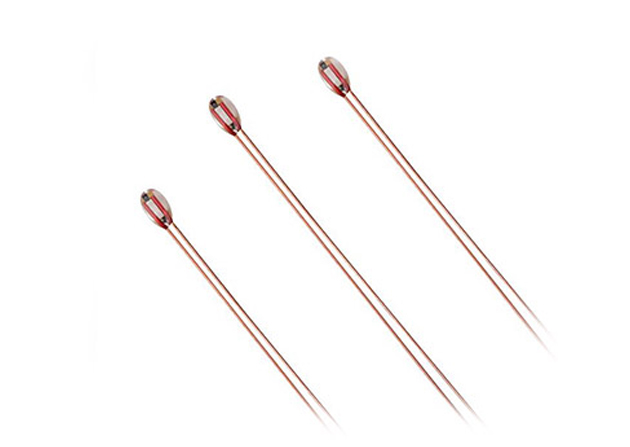

Single-ended glass thermistor

High sensitivity, high precision, fast response

It uses a dense fine ceramic thermistor chip, uses high-quality alloy electrodes to combine the wires and the thermistor chip, and uses high-sensitivity glass packaging to make the chip have excellent heat resistance and weather resistance. The overall performance is highly stable and the response is faster, higher precision, longer service life, and can be reduced in size and used more widely.

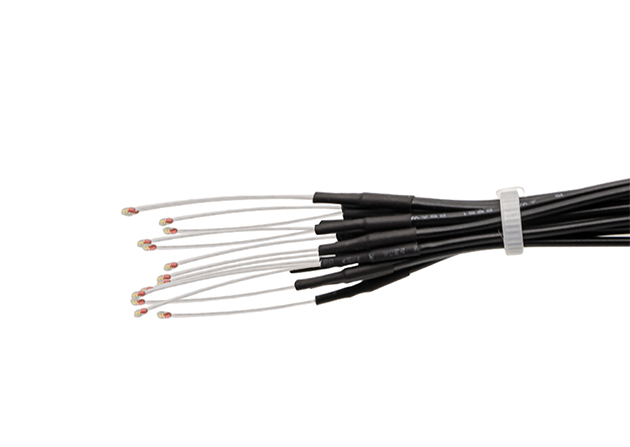

High quality welding process

Small thermal deformation, stable signal transmission

The connection between NTC chip pins and cables adopts high-quality welding processes such as laser welding or butt welding. The overall welding quality is good, the mechanical strength is high, and the thermal deformation is small. Compared with traditional soldering and other welding processes, it not only has small solder joints and beautiful appearance, but also can work normally in high-temperature environments. It will not cause the welding joint to disconnect due to excessive temperature, thereby causing signal disconnection.

Application
Customer Case

Fish tank/aquarium temperature sensor

Background

Temperature is one of the important factors for fish survival, and different types of fish have different temperature requirements. Temperatures that are too high or too low will have adverse effects on the health and growth of fish. By detecting the water temperature of the fish tank, it can be adjusted in time to ensure that the water temperature is within the appropriate range, thereby providing a good living environment for fish and promoting the healthy growth of fish.

Real-time monitoring of water temperature in fish tanks/aquariums

The dedicated temperature sensor for fish tanks/aquariums not only has high temperature measurement accuracy, but also can continuously monitor water temperature without manual reading, convert water temperature data into corresponding analog signals in real time and transmit them to the back-end adjustment system to realize automatic adjustment of the water temperature system.

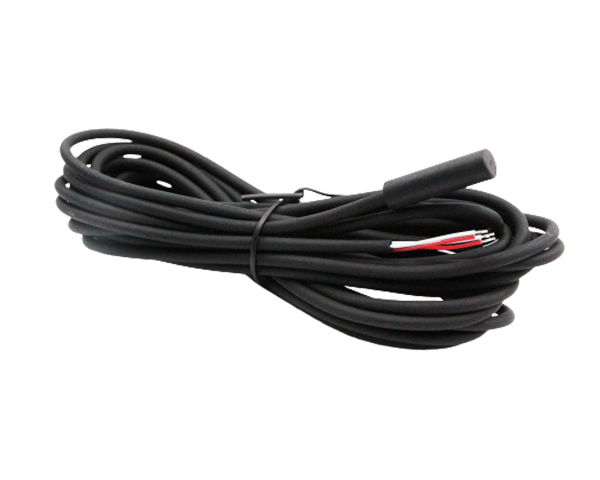

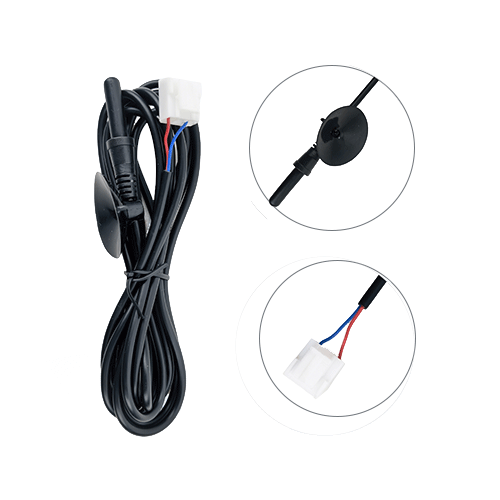

Fish tank/aquarium temperature sensors features

1. Injection molded one-piece probe, IP68 waterproof, can work normally underwater for a long time.

2. NTC thermistor chip has high temperature measurement accuracy, good sensitivity, short response time, and can quickly and accurately monitor water temperature changes.

3. The probe is small in size and will not take up too much installation space and will not cause interference to fish.

4. Suction cup installation, easy and fast installation.
