GAIMC-Temperature Sensor Type Selection

TIME: 2025.09.26 AUTHOR: Coco Li NUMBER OF VIEWS 2882

The temperature sensor is a temperature chip packaged into a variety of shells using materials such as high thermal conductivity silicone grease, and the signal is led to the back end through a wire so as to achieve temperature monitoring and control of the sensor.


No matter what style of temperature sensor you want, based on our extensive experience, we can manufacture it. In particular, we also support customization, which makes the final product meet your specified needs. We are a company that values customers' satisfaction. We always aim at producing and delivering quality temperature sensors that meet all your needs. With 10+ years of experience, you can trust us with your needs and expectations.


GAIMC temperature sensors mainly involves ntc temperature sensor, ds18b20 temperature sensor, pt100/pt1000 temperature sensor, and the temperature humidity sensor.

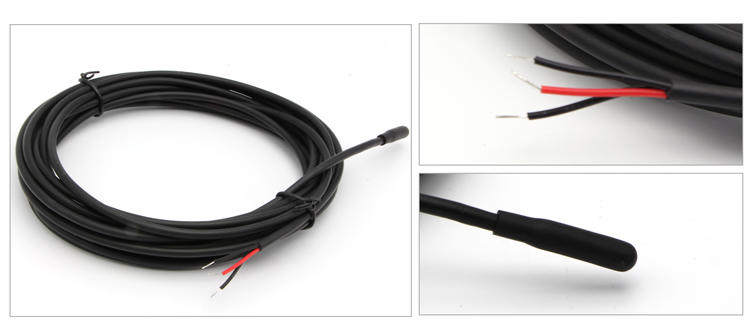

NTC temperature sensor


The GTS100 NTC temperature sensor connects a high-precision, high reliable NTC thermistor with wires , encapsulated with insulation, thermal conductivity, and waterproof material into the required shape. It's easy to install and remotely measure and control temperature.

Chips NTC
R value R25
1KΩ~1400KΩ (1K, 2K, 4.7K, 5K, 10K, 15K, 20K, 30K, 50K, 100KΩ), etc.
B value R25/50
3270K~4650K (3270K, 3380K, 3470K, 3550K, 3700K, 3950K, 4200K, 4650K)
Temperature range
-40~+300℃
Probe size
Diameter: ¢1.5~¢9 mm; length: 3 mm~1000 mm
Probe material
Stainless steel, copper, copper-plated nickel, aluminum, ABS, epoxy,
Cable
UL Series (such as UL1007), supply line number, using temperature range, outside diameter, and material requirements.
Connector
Molex, JST, DuPont, CWB, CJT, etc.
Drive pipe Heat shrinkable tube; PVC tube; glass fiber tube;

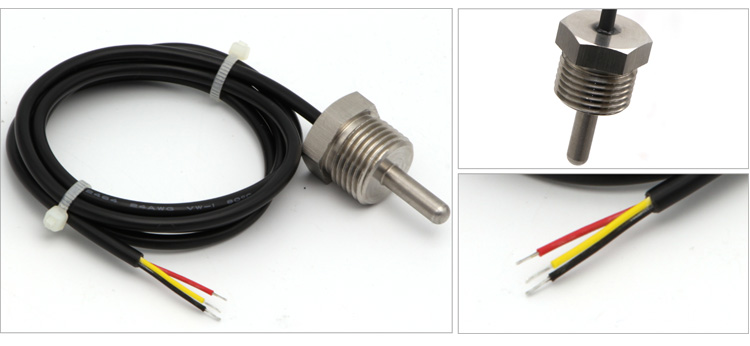

DS18B20 temperature sensor


The GTS200 DS18B20 is a single intelligent temperature sensor produced by Dallas Semiconductor companies in the United States. It belongs to a new generation of adaptive intelligent temperature sensors and can directly convert temperature signals to the serial digital signals for computer processing. Using a strict welding and assembly process, improve the measurement precision and lengthen the service life.

Chips DS18B20
Connection mode
Black: GND Yellow: DATA Red: VDD+
Probe size
Diameter: ¢ 6~ 6~¢ 9 mm, length: mm~1000 mm
Power supply
3.0~5.5 VDC
Temperature range
-50~+125℃ (when the temperature is -10~+85℃, the accuracy is ±0.5℃)
Cable material
PVC, TPE, PFA, Silicone, Braided, Shielded...
Cable end Coated tin, with connectors like JST, Molex, audio jack, RS45, M8, and so on.

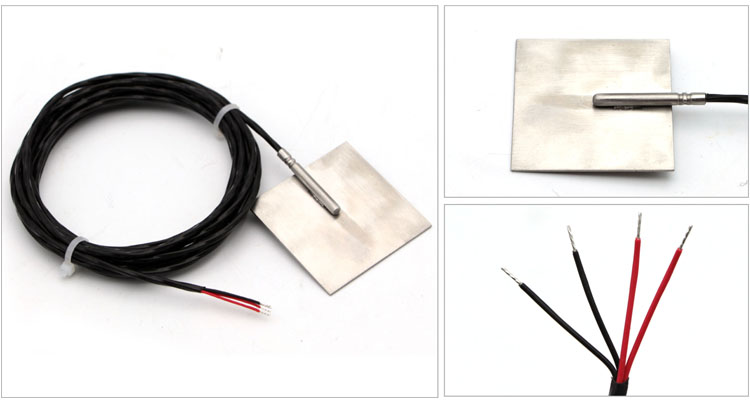

PT100/PT1000 temperature sensor


GTS300 pt100/pt1000 is a temperature sensor based on the resistance value of platinum (Pt) and the temperature being a certain function. GAIMC uses international imported chips (Heraeus, IST, etc.), uses high-quality thermally conductive silica gel, and fills and encapsulates the chips into probes of various materials. The temperature sensor made is in strict compliance with the IEC60751 standard. It has the characteristics of high temperature measurement accuracy, short response time, and good stability.

Chips pt100/pt1000
Accuracy and temperature range
1/3 DIN (±0.1℃): -50~+250℃;
Grade A (±0.15℃): -50~+450℃;
Grade B (±0.3℃): -50~+600℃;
Probe size
Diameter: ¢ 3~¢ 9 mm, length: mm~1000 mm
Cable material
PVC, TPE, PFA, Silicone, Braided, Shielded...
Cable end
Coated tin, with connector like JST, Molex, Audio jack, RS45, M8, etc.

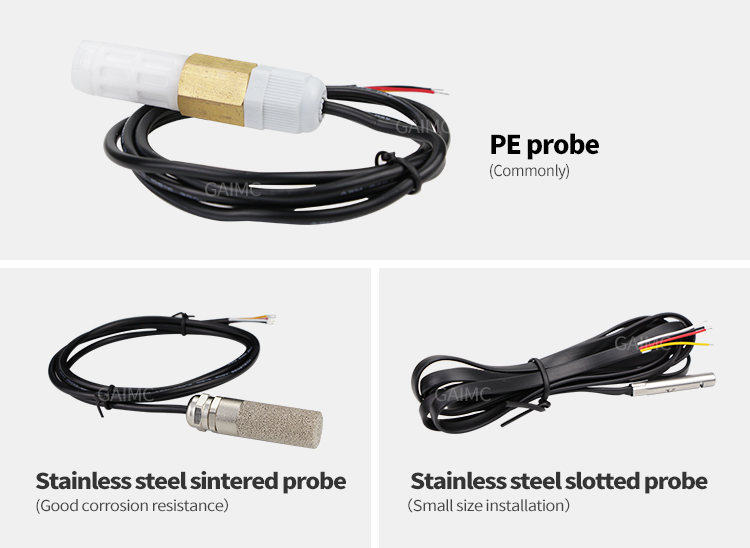

Temperature humidity sensor


The GHTS temperature and humidity sensor adopts the original imported SHT series digital temperature and humidity chip, and the probe is made of high-quality stainless steel or engineering plastic, which is anti-corrosion and anti-oxidation; the chip pins are isolated by high-temperature heat shrinkable tubes to effectively prevent short circuits. The sensor supports I2C bus output, with strong overall anti-interference, high reliability, convenient data reading, and convenient communication with various back-end devices.


Chips SHT20, SHT30, SHT31, SHT35, SHT40, etc.
Probe types
Stainless steel sintered, plastic brass, stainless steel slotted probe
Temperature range
-40~+125℃
Humidity range
0~100% RH
Humidity accuracy
±3%RH, ±2%RH, ±1.5%RH (Specific based on chip selection)
Temperature accuracy
±0.3℃, ±0.2℃, ±0.1℃ (specific based on chip selection)
Operating Voltage
2.15~5.5V (Specific based on chip selection)
Cable material
PVC, silicone etc. (customizable)
Cable end tinning,stereo plug etc. (customizable)



Contact us and learn more about our temperature sensor.


HOT keyword:
Recommend View More
TIME 2025.09.26

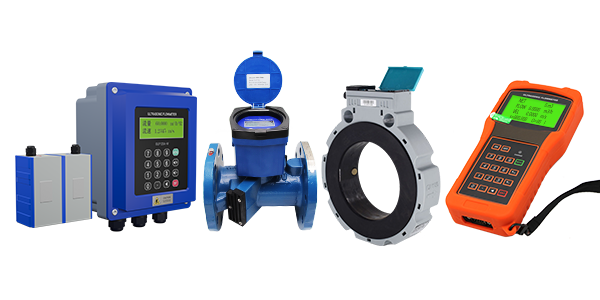

Learn More About Ultrasonic Flow Meter
