Introduction to ntc Temperature Sensor Components

TIME: 2025.03.26 AUTHOR: Coco Li NUMBER OF VIEWS 1435

NTC is an acronym for Negative Temperature Coefficient.An NTC thermistor is a temperature sensor that uses the resistance properties of ceramic/metal composites to measure the temperature. Our full spectrum NTC sensors offer many advantages in temperature sensing, including miniature size, excellent long-term stability, and high accuracy and precision.



Chip: (Single-ended glass-sealed thermistor)


It adopts a dense fine ceramic thermistor chip, uses high-quality alloy electrodes to combine the wire and the thermistor chip, and uses high-sensitivity glass packaging to make the chip have excellent heat resistance and weather resistance. The overall performance is highly stable, the response is faster, the accuracy is higher, the service life is longer, the size can be reduced, and the application is wider.


Probe:


The tail of the probe adopts a rolling groove design to prevent the chip from peeling off due to pulling force when the temperature sensor is used on site, thereby damaging the sensor. At the same time, the cable and the shell fit more closely, improving the overall airtightness of the temperature sensor, making the waterproof level reach IP68 level, so that it can be immersed in water for a long time and monitor the temperature stably and reliably.


Welding process:


The NTC chip pins and cable connections are connected by high-quality welding processes such as laser welding or butt welding, with good overall welding quality, high mechanical strength, and small thermal deformation. Compared with traditional soldering and other welding processes, not only are the solder joints small and beautiful in appearance, but they can also work normally in high-temperature environments without causing the solder joints to break due to excessive temperature, thereby causing signal disconnection.


Probe packaging form:


NTC sensors have a variety of packaging forms, such as glass packaging, epoxy resin packaging, metal shell packaging, etc., suitable for different environmental conditions (such as high temperature, humid or corrosive environments).


Application:


It is widely used in various application scenarios such as household appliances (such as refrigerators, air conditioners, etc.), new energy (new energy vehicle BMS, charging piles, etc.), industrial control, medical equipment, consumer electronics, etc.


-The medical industry relies on NTCs in various applications, including catheters, dialysis equipment, and patient monitoring.
- Appliances from dryers to coffee makers use NTC thermistors to accurately measure temperature.
-HVAC and refrigeration equipment use NTC sensors to measure temperature in building controls and processes, resulting in increased efficiency and control.
-Automotive and aerospace industries use NTC thermistors for test and measurement as well as production applications.

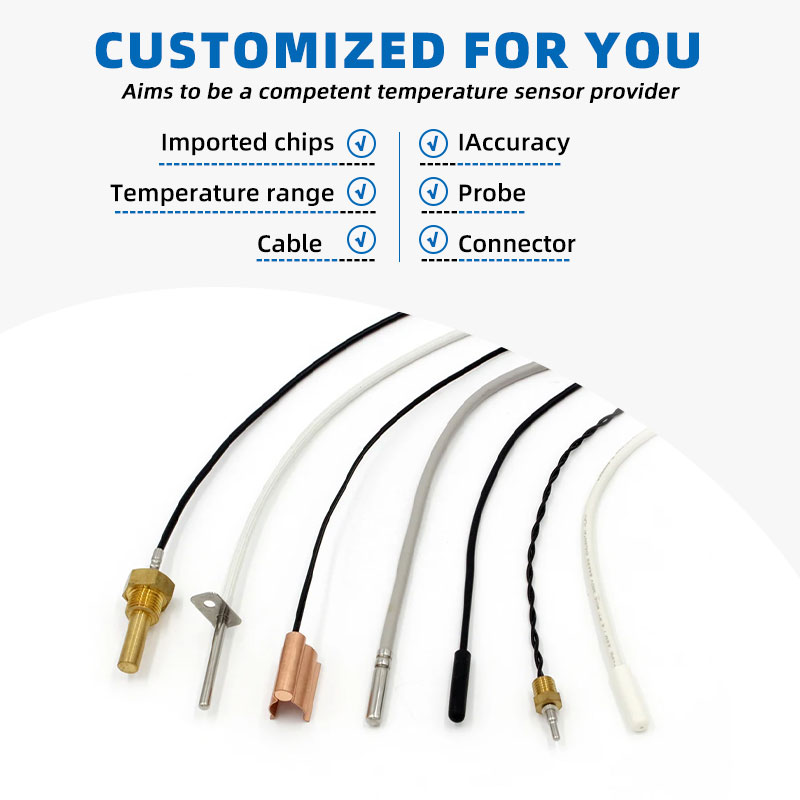

Customized:


We provide customized temperature sensor solutions, customized according to your specific needs, to ensure that the product is perfectly adapted to your application scenario. All products undergo strict quality testing to ensure that their performance is stable and reliable to meet your long-term use needs.



Contact us and learn more about our temperature measurement.
