NTC Thermistors: A Key Component in Temperature Sensing

TIME: 2025.03.26 AUTHOR: Coco Li NUMBER OF VIEWS 607

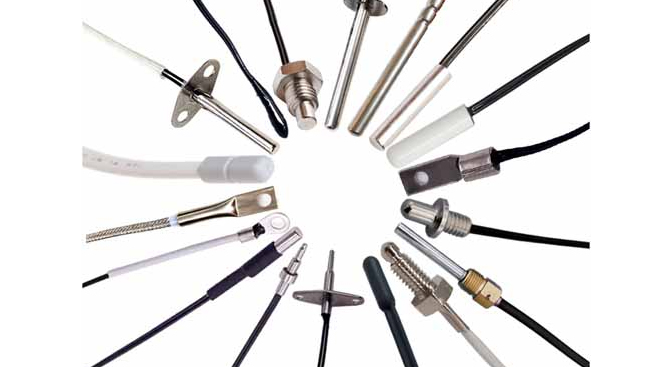

    An NTC thermistor (Negative Temperature Coefficient thermistor) is a type of temperature-sensitive resistor whose resistance decreases as its temperature increases. It is made from semiconductor materials, typically metal oxides like manganese, nickel, or cobalt, sintered into a ceramic form.


Key Characteristics of NTC Thermistors:

  1. Negative Temperature Coefficient (NTC):

    -Resistance drops as temperature rises (unlike PTC thermistors, which have a positive coefficient).
    -Highly nonlinear response but very sensitive to small temperature changes.
   2. High Sensitivity:

    -More responsive than RTDs (Resistance Temperature Detectors) or thermocouples in certain ranges.
    -Best suited for narrow to moderate temperature ranges (typically -50°C to 150°C, though some go higher).

   3. Nonlinear Resistance-Temperature Curve


Applications of NTC Thermistors:

  1.Temperature Sensing & Control:
    -Used in thermostats, battery packs, automotive cooling systems, and medical devices.
   2. Inrush Current Limiting:
    -Acts as a self-regulating surge suppressor in power supplies (high resistance at startup, then drops as it heats up).
   3.Consumer Electronics:
    -Smartphones, laptops (battery temperature monitoring), and HVAC systems.


Advantages VS Disadvantages:

    -Small size, fast response, and low cost.
    -High sensitivity in its operating range.
    -Nonlinearity requires calibration or lookup tables.
    -Limited temperature range compared to RTDs/thermocouples.
    -Self-heating can affect accuracy if not properly designed.


Contact us and learn more about our temperarture measurement.
