📍 Project Location: Smart Agriculture Industrial Park / Highland Vegetable Base
🌾 Application Scenarios: Greenhouse soilless cultivation, fertigation integrated irrigation, seedling water quality control
📅 Implementation: 2024 – present | Equipment: GAIMC GWQ-MP200 Multi-parameter Water Quality Analyzer (1-6 channels, supports pH/EC/DO/Residual Chlorine/Turbidity etc.)
🌾 Application Scenarios: Greenhouse soilless cultivation, fertigation integrated irrigation, seedling water quality control
📅 Implementation: 2024 – present | Equipment: GAIMC GWQ-MP200 Multi-parameter Water Quality Analyzer (1-6 channels, supports pH/EC/DO/Residual Chlorine/Turbidity etc.)
🌾 Water Quality Challenges in Agriculture & GWQ-MP200 Solution
In modern facility agriculture, irrigation water quality directly affects root vitality, fertilizer efficiency, and soil-borne disease risks. Traditional single-parameter testing is inefficient and lacks real-time insight, making it difficult to precisely control nutrient solution EC/pH fluctuations, leading to reduced yields or physiological disorders. The GWQ-MP200 Multi-parameter Water Quality Analyzer features a real-time operating system (RTOS) and can simultaneously connect digital sensors for pH, conductivity (EC/TDS), dissolved oxygen, residual chlorine, turbidity, COD, and more. It enables 24/7 continuous online monitoring of irrigation water, return solution, and source water. With RS485 and 4-20mA outputs, it seamlessly integrates with fertigation controllers, making every irrigation data-driven.
📟 Core Monitoring Parameters & Agricultural Value
| Parameter | Agricultural Value | GWQ-MP200 Capability |
|---|---|---|
| 💧 pH / ORP | Maintain nutrient solution balance, prevent nutrient antagonism | Supports 1-6 channels flexible combination, plug-and-play digital sensors |
| ⚡ Conductivity / TDS / Salinity | Precise fertilizer concentration control, real-time EC feedback | |
| 🐟 Dissolved Oxygen | Improve root respiration in hydroponics, reduce root rot | High-precision optical DO sensor with automatic temperature compensation |
| 🧪 Residual Chlorine / Ozone | Control disinfection byproducts, ensure irrigation water safety | 2 isolated 4-20mA outputs + 2 RS485 Modbus-RTU |
| 🌫️ Turbidity / Suspended Solids | Early warning of source water contamination, prevent drip emitter clogging | Built-in 8GB TF card (expandable to 32GB) for local backup |
| 🌱 COD / Ammonia Nitrogen / Cyanobacteria | Assess organic pollution and eutrophication risks | Multi-channel relay control, supports remote actuation |
🎛️ Flexible Multi-parameter Combo
Choose pH+EC+DO+residual chlorine (up to 6 parameters) based on crop needs. Different cable lengths available for open-field/greenhouse/hydroponics.📲 Smart Communication & Integration
2x RS485 Modbus-RTU, connect to agricultural IoT cloud platform for mobile alerts and automatic fertigation control.💾 Massive Data Storage
Standard 8GB TF card records years of water quality trends, supporting agronomists with traceable fertilization decisions.
📈 Proven Results: 12% Yield Increase, 15% Water Savings
In a large-scale greenhouse tomato cultivation area, the GWQ-MP200 continuously monitors pH and EC in the main irrigation line and return tank, automatically adjusting the fertigation machine. After 6 months of operation, nutrient solution pH remained stable between 5.8-6.2, EC fluctuation reduced by 64%, tomato blossom-end rot incidence dropped by 42%, total yield increased by 12%, and water/fertilizer efficiency improved significantly. Meanwhile, residual chlorine monitoring ensured effective biofilm control in end pipelines, reducing emitter clogging by 35%.
🔧 Technical Highlights (Based on GWQ-MP200 Product Manual)
✅ High-reliability real-time OS, fast response, touch configuration & automatic temperature compensation.
✅ Multi-channel isolated 4-20mA outputs (load < 750Ω), two RS485 Modbus-RTU ports.
✅ Relay control for acid/fertilizer pumps or alarms, wide power supply 100-250VAC.

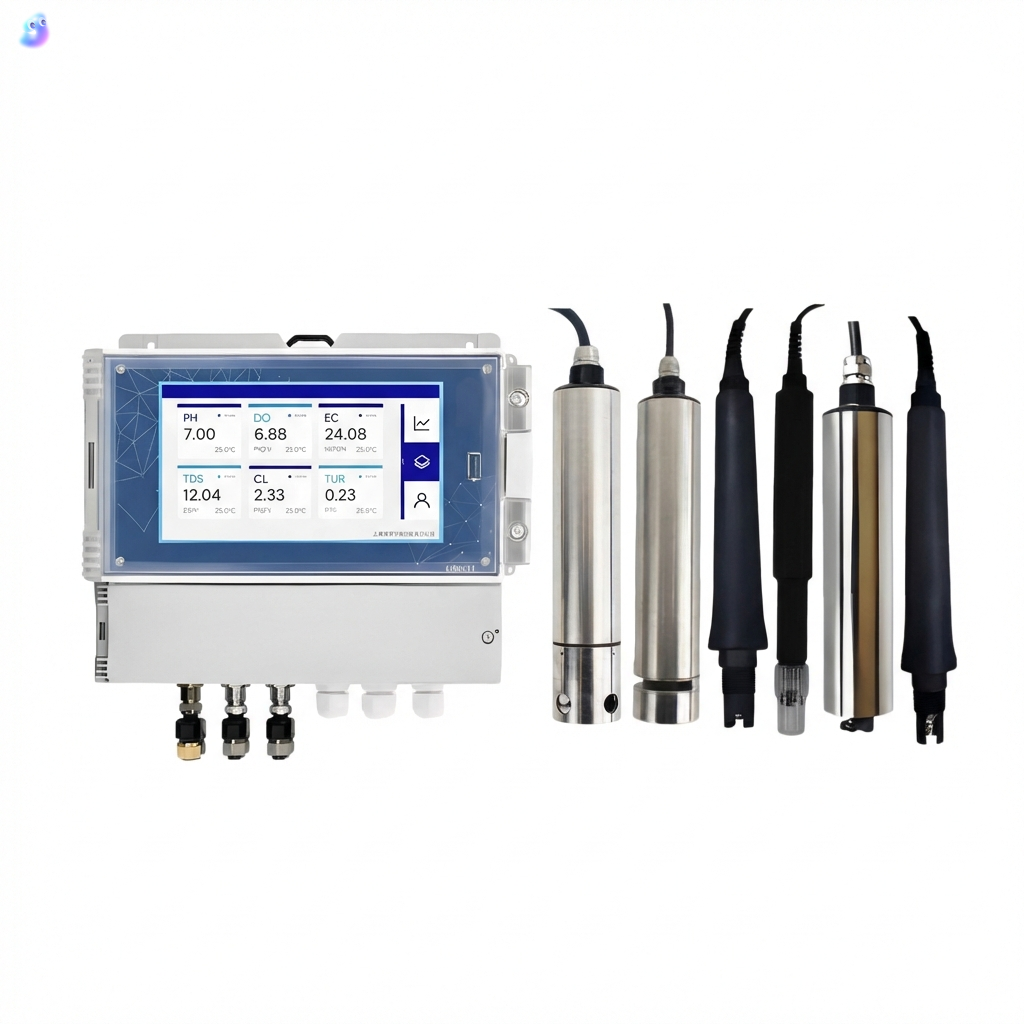

✅ Wall-mount main unit (223*200*120mm) + immersion/threaded electrodes, suitable for agricultural environments.
✅ Expandable parameters: pH, ORP, DO, residual chlorine, ozone, turbidity, COD, ammonia nitrogen, chlorophyll, cyanobacteria, etc., meeting smart agriculture upgrade needs.
✅ High-reliability real-time OS, fast response, touch configuration & automatic temperature compensation.
✅ Multi-channel isolated 4-20mA outputs (load < 750Ω), two RS485 Modbus-RTU ports.
✅ Relay control for acid/fertilizer pumps or alarms, wide power supply 100-250VAC.
✅ Wall-mount main unit (223*200*120mm) + immersion/threaded electrodes, suitable for agricultural environments.
✅ Expandable parameters: pH, ORP, DO, residual chlorine, ozone, turbidity, COD, ammonia nitrogen, chlorophyll, cyanobacteria, etc., meeting smart agriculture upgrade needs.
📦 Recommended Configurations for Agriculture
Based on farm scale and monitoring requirements, the GWQ-MP200 flexibly adapts to digital water quality sensors. Basic package: pH+EC+temperature (3 parameters) for small/medium greenhouses. Advanced package: pH/EC/DO/residual chlorine/turbidity (5 parameters) for hydroponics/NFT systems. Comprehensive package: add COD/ammonia nitrogen monitoring for surface water source protection or organic certification. When ordering, specify number of channels, parameter type per channel, measurement range, and cable length. The main unit supports up to 6 different parameters simultaneously.
🌿 Customer Feedback
“Since adopting the GWQ-MP200 water quality analyzer, the scientific level of water and fertilizer management on our farm has greatly improved. The touchscreen interface is intuitive, and our operators quickly mastered it. The multi-channel data stability and seamless integration with our existing PLC system have enabled truly precision irrigation.” — Technical Director, Agricultural Technology Company
📐 GWQ-MP200 Agriculture System Architecture
💧 Raw water / Nutrient tank
→
GWQ-MP200 Analyzer
→
📡 RS485/4-20mA
→
Fertigation controller / Solenoid valve
Real-time multi-parameter data, threshold alarms, automatic adjustment for closed-loop precision irrigation
📞 Get Agriculture Custom Solution & Quote
Contact us now for GWQ-MP200 agriculture-specific configuration list
