Choosing the right water flow meter can feel overwhelming with so many types and technical specs. In this guide, you will learn the key differences between meters for home, industrial, and irrigation use. We'll break down the selection criteria to help you make an informed decision that ensures accurate measurement, cost-efficiency, and long-term reliability for your specific application.
Understanding Water Flow Meters: The Basics
A water flow meter is a device that measures the volume or velocity of water passing through a pipe. Accurate flow measurement is critical for process control, billing, resource management, and leak detection across various sectors.
How to Choose the Right Water Flow Meter: Key Selection Criteria
Before diving into specific applications, consider these universal factors. Matching these criteria to your needs is the first step to a successful purchase.
Flow Rate & Pipe Size
Know your minimum and maximum expected flow rates, as well as your pipe's diameter and material. A meter sized incorrectly for its range will be inaccurate.
Accuracy Requirements
Industrial processes often demand high accuracy (<±1%), while for some irrigation or general monitoring, a lower accuracy (±2-5%) may be sufficient and more cost-effective.
Fluid Properties
Consider the water's purity, temperature, and whether it contains particulates or chemicals. These factors can disqualify certain meter technologies.
Installation Environment
Assess the available straight pipe run before and after the meter, electrical power availability, and environmental conditions like humidity or potential for submersion.
Output & Connectivity Needs
Determine if you need a simple local display, analog (4-20mA) output, pulse output, or modern digital communication (e.g., MODBUS, HART) for integration into a SCADA or IoT system.
Water Flow Meters for Home Use
-
Common Types:
Mechanical (Turbine, Pelton Wheel), Ultrasonic.
-
Key Considerations:
Low cost, ease of installation and reading, minimal maintenance.
-
Typical Applications:
Whole-house water monitoring, submetering for apartments, monitoring well pump output, and solar water heating systems.

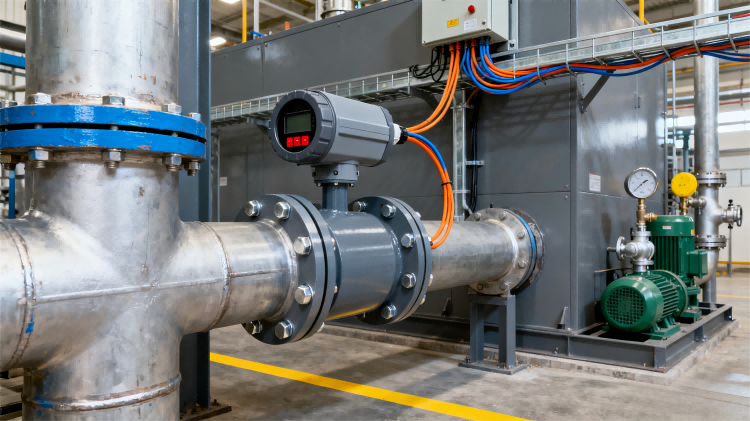

Water Flow Meters for Industrial Use
-
Common Types:
Electromagnetic (Magmeter), Ultrasonic (Transit-Time, Doppler), Vortex, Coriolis.
-
Key Considerations:
High accuracy and repeatability, chemical compatibility with process fluids, ability to handle high pressures and temperatures, and robust output signals.
-
Typical Applications:
Chemical dosing, cooling water monitoring, boiler feedwater measurement, and wastewater treatment processes.
Water Flow Meters for Irrigation
-
Common Types:
Mechanical (Woltmann), Ultrasonic, Multi-jet.
-
Key Considerations:
Resistance to silt and debris, low pressure drop, and suitability for large pipe diameters. Battery-powered options are common for remote areas.
-
Typical Applications:
Agricultural field irrigation, golf course watering, and parkland management.
FAQs on Water Flow Meters
What is the difference between a flow meter and a water meter?
A "water meter" is a specific type of flow meter designed primarily for custody transfer and billing of potable water, often meeting specific legal standards. A "flow meter" is a broader term for any device measuring the flow rate of any liquid or gas.
How often should a water flow meter be calibrated?
Calibration frequency depends on the meter type, the criticality of the measurement, and the operating conditions. As a general rule, industrial meters should be checked annually, while less critical applications may extend to 2-3 years. Always follow the manufacturer's recommendation.
Can a flow meter be installed vertically?
It depends on the technology. Magnetic and ultrasonic meters can typically be installed in any orientation. Vortex meters often require horizontal installation. Mechanical meters may have specific orientation requirements to ensure the internal mechanism functions correctly. Always consult the installation manual.
What happens if my flow meter is oversized or undersized?
An oversized meter will fail to accurately measure low flow rates, leading to "unaccounted-for" water losses. An undersized meter will create a high pressure drop, can cause cavitation, and may be damaged by sustained high flow rates, leading to inaccurate readings and premature failure.
Sources & Further Reading
-
International Society of Automation (ISA) - Standards for Flow Measurement
-
International Organization of Legal Metrology (OIML) - Guidelines for Water Meters
-
Instrument Society of America - "Flow Measurement Engineering Handbook"
Get the Right Solution with GAIMC
Selecting the perfect flow meter is crucial for your operation's efficiency and cost-control. GAIMC offers a comprehensive range of precision instruments for flow, water quality, and temperature monitoring, tailored for industrial and agricultural applications.
Contact Us Today Request a Quote

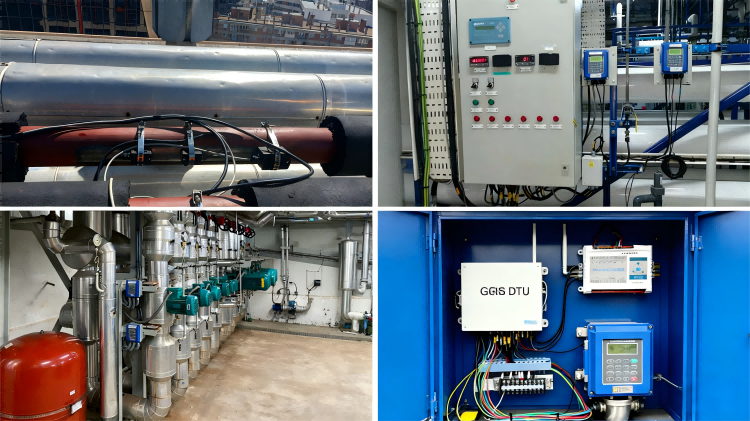

Featured Product: GAIMC Ultrasonic Flow Meter
