Struggling to choose the right gas flow meter for your industrial needs? This expert guide covers vortex, turbine, oval gear, and mass flow meters - their working principles, advantages, and ideal applications. You'll gain the knowledge to select the optimal meter for your specific gas measurement requirements.
Why Accurate Gas Flow Measurement is Critical
Precise gas flow measurement directly impacts process efficiency, cost control, and regulatory compliance across industries. Selecting the wrong meter technology can lead to measurement errors exceeding 5%, resulting in significant financial losses and operational issues. Understanding each meter's capabilities is essential for optimal performance.
Comprehensive Gas Flow Meter Technologies
Vortex Flow Meters
Utilizes the von Kármán effect, where vortices shed alternately from a bluff body, with frequency proportional to flow velocity.
Ideal Applications: Saturated steam measurement, compressed air systems, natural gas distribution
Key Advantages: No moving parts, wide rangeability, suitable for high temperatures
Limitations: Requires minimum flow velocity, sensitive to vibration
Turbine Flow Meters
Measures flow rate through the rotational velocity of a rotor, with each rotation corresponding to a specific fluid volume.
Ideal Applications: Natural gas custody transfer, CNG dispensing, process gas measurement
Key Advantages: High accuracy at stable flows, excellent repeatability, cost-effective
Limitations: Bearing wear over time, sensitive to contamination

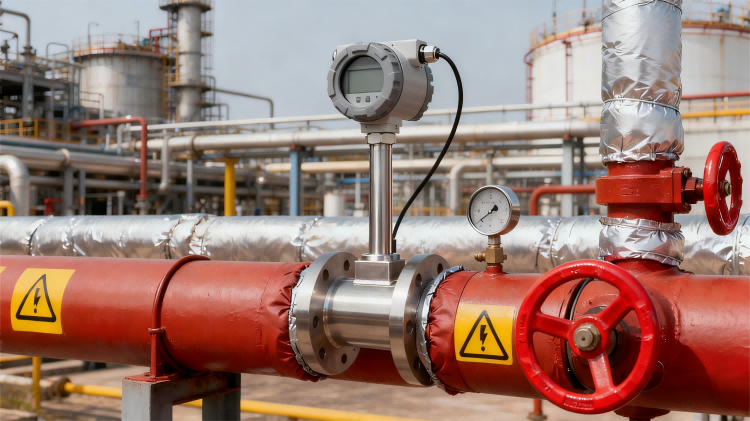

Vortex flow meters provide reliable gas measurement with no moving parts
Oval Gear Flow Meters
Positive displacement technology where oval-shaped gears rotate in precise proportion to the fluid volume passing through.
Ideal Applications: LPG measurement, chemical additive injection, viscous gas applications
Key Advantages: High precision at low flows, unaffected by viscosity changes, direct volume measurement
Limitations: Limited to clean gases, pressure drop considerations
Mass Flow Meters
Utilizes Coriolis effect or thermal dispersion to directly measure mass flow, independent of temperature and pressure changes.
Ideal Applications: Chemical processes, biogas measurement, combustion control
Key Advantages: Direct mass measurement, high accuracy, multi-parameter capability
Limitations: Higher initial investment, potential pressure drop in Coriolis types

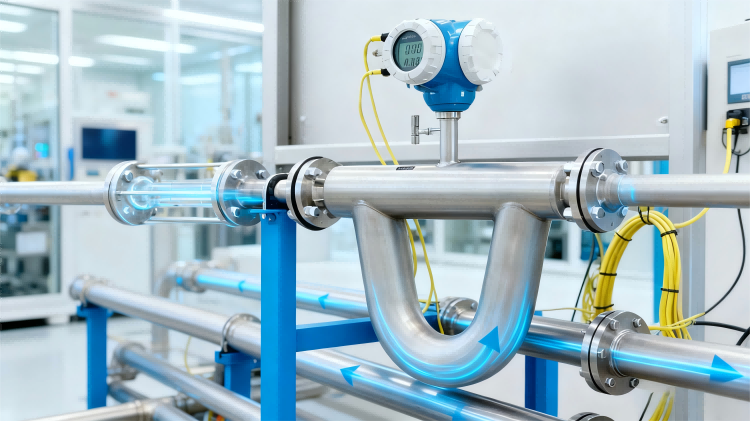

Mass flow meters deliver unmatched accuracy for critical gas applications
Application-Specific Selection Guide
Oil & Gas Industry Applications
For natural gas custody transfer, turbine flow meters dominate due to their proven accuracy and reliability. In process applications, GAIMC's mass flow meters provide the precision needed for fiscal measurement and process control.
Chemical & Pharmaceutical Industries
Mass flow meters excel in chemical processes where precise control of gas reactants is critical. Oval gear meters handle specialized applications involving liquefied gases and chemical additives with exceptional accuracy.
Energy Management & Utilities
Vortex flow meters provide cost-effective solutions for steam and compressed air measurement, while turbine meters serve natural gas distribution networks. GAIMC's energy management solutions integrate these technologies for comprehensive monitoring.

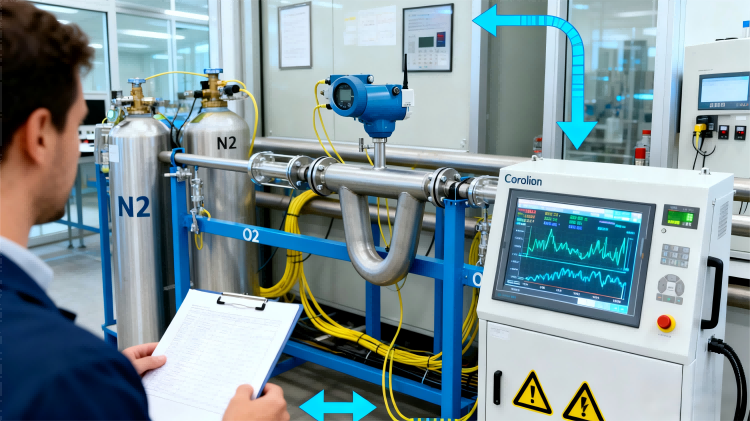

Integrated flow metering systems for industrial gas applications
Industry Standards & Compliance
Gas flow measurement devices must adhere to international standards ensuring accuracy and safety. Key governing standards include:
ISO 10790Coriolis flow meters for gas measurement
ISO 5167Pressure differential devices
AGA Report No. 11Coriolis meter gas measurement
OIML R137Gas meters volume conversion
EN 12261Turbine gas meters requirements
API MPMS Chapter 5.3Turbine meter measurement
Frequently Asked Questions
Mass flow meters typically provide the highest accuracy (±0.1-0.5%), followed by turbine meters (±0.5-1%) and vortex meters (±1-1.5%). Oval gear meters achieve ±0.5-1% in calibrated applications.
Vortex meters excel in dirty gas applications with no moving parts, while turbine meters offer superior accuracy in clean gas services. Consider GAIMC's selection service for application-specific recommendations.
While primarily used for liquids, oval gear meters effectively handle liquefied gases like LPG and specific high-value gas applications where precise volumetric measurement is critical.
Turbine meters need periodic bearing inspection, vortex meters require bluff body cleaning, while mass flow meters are virtually maintenance-free. Regular calibration ensures ongoing accuracy across all types.
Mass flow meters directly measure mass flow unaffected by composition changes. Other meters may require density compensation using GAIMC's temperature and pressure sensors for accurate measurement.
Optimize Your Gas Flow Measurement System
Get expert guidance selecting the perfect flow meter technology for your specific application. Our engineers provide comprehensive solutions ensuring accuracy, reliability, and regulatory compliance.
