Are you optimizing your HVAC system's performance and energy efficiency? In this comprehensive guide, you'll discover how ultrasonic flow meters revolutionize heat exchange station operations by providing precise flow and heat measurements for supply water and makeup water pipelines. Learn how advanced flow measurement technology can enhance your system's reliability and reduce operational costs.

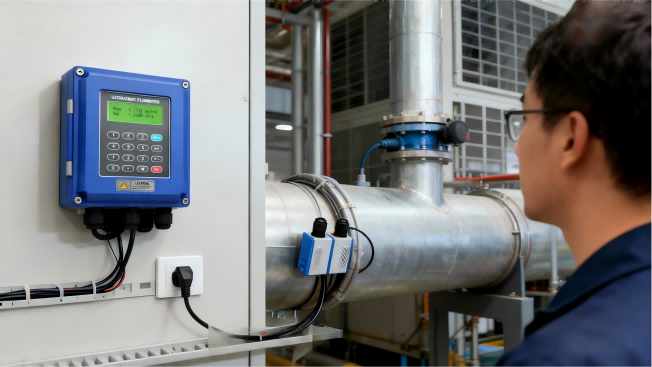

In modern heating, ventilation, and air conditioning (HVAC) systems, accurate flow measurement is essential for optimal performance, energy efficiency, and cost management. Heat exchange stations, which form the heart of district heating and cooling systems, rely heavily on precise flow data to balance energy distribution and maintain system stability.
High Accuracy Measurement
Ultrasonic technology provides ±1% accuracy for both flow and heat measurements, ensuring precise energy billing and system optimization in supply and makeup water pipelines.
Non-Intrusive Operation
Clamp-on designs eliminate pressure drops and don't require system shutdowns for installation, minimizing disruption to HVAC operations and reducing installation costs.
Bidirectional Flow Capability
Measure flow in both directions, essential for complex HVAC systems with reversing flow patterns and seasonal operation changes in district heating networks.
Minimal Maintenance
No moving parts and non-contact measurement reduce maintenance needs and extend service life in demanding HVAC environments, lowering total cost of ownership.
Heat Measurement and Energy Efficiency

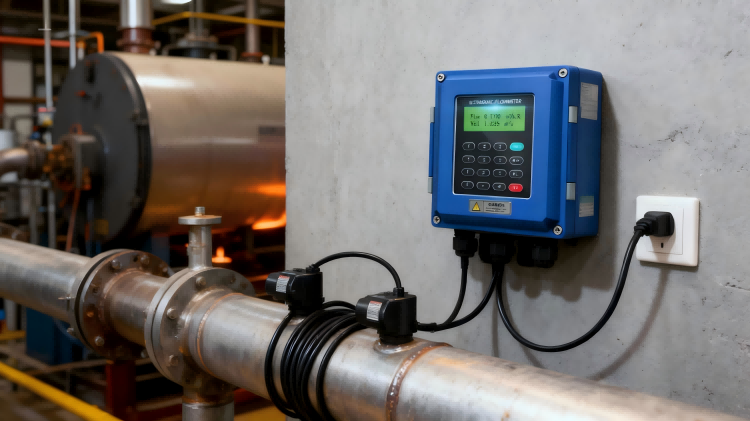

Ultrasonic flow meters integrated with temperature sensors provide comprehensive heat energy measurement, enabling accurate energy billing and system optimization. The combination of precise flow data and temperature differentials allows for real-time heat calculation according to international standards.
Advanced ultrasonic flow meters with integrated temperature measurement capabilities provide complete energy monitoring solutions for HVAC systems. These systems support sustainability initiatives, reduce carbon footprint, and enable precise energy allocation in multi-tenant buildings and district heating networks.
GAIMC Ultrasonic Flow Meters for HVAC Applications
For superior performance in heat exchange applications, consider GAIMC's ultrasonic flow meters specifically designed for HVAC systems. Our solutions offer:
-
High-precision flow and heat measurement for energy billing compliance
-
Clamp-on and insertion models for flexible installation without system shutdown
-
Integrated temperature and pressure compensation for accurate energy calculation
-
MODBUS, BACnet, and other building automation protocols for seamless integration
-
Robust construction for harsh HVAC environments and long-term reliability
Discover our complete HVAC and building automation solutions tailored for modern heat exchange stations and energy management systems.
How accurate are ultrasonic flow meters for heat measurement in HVAC systems?
Modern ultrasonic flow meters like GAIMC's ultrasonic flow meter achieve ±1% accuracy for flow measurement and, when combined with precision temperature sensors, provide heat measurement accuracy that meets international standards for energy billing and system optimization. This level of precision ensures reliable energy accounting and efficient system operation.
Can ultrasonic flow meters handle variable flow rates in HVAC systems?
Yes, ultrasonic flow meters excel in variable flow conditions common in HVAC systems. Their wide turndown ratio (typically 100:1 or better) allows accurate measurement from minimal to maximum flow rates, making them ideal for seasonal load variations and part-load operation in heat exchange stations. This capability ensures precise measurement during both peak demand and low-usage periods.
What maintenance is required for ultrasonic flow meters in HVAC applications?
Ultrasonic flow meters require minimal maintenance due to their non-intrusive design and lack of moving parts. Routine verification of signal quality and periodic calibration checks are typically sufficient. GAIMC offers comprehensive maintenance services to ensure long-term accuracy and reliability, including remote diagnostics and preventive maintenance programs.
How do ultrasonic flow meters contribute to energy efficiency in HVAC systems?
By providing precise flow and heat measurements, ultrasonic flow meters enable optimal control of pumps, valves, and heat exchangers. This data-driven approach reduces energy consumption, minimizes heat losses, and supports energy efficiency initiatives in building automation systems. Accurate measurement helps identify inefficiencies and optimize system performance for maximum energy savings.
Source Reference: This article incorporates technical information from ASHRAE standards, International Energy Agency guidelines, and GAIMC's extensive experience in providing flow measurement solutions for HVAC and district energy systems worldwide.
Optimize Your HVAC System with Precision Flow Measurement
Our experts at GAIMC can help you implement the perfect flow measurement solution for your heat exchange station and HVAC applications. Get professional guidance on system design, installation, and optimization.
Contact us for a free system assessment and technical consultation!
