Common Flow Meter Failures and Troubleshooting Guide
Flow meters are critical components in various industrial applications, from water treatment to chemical processing. Understanding common failure modes and their solutions is essential for maintaining operational efficiency and accuracy in your measurement systems.
Proper installation is crucial for accurate flow measurement. Ensure adequate straight pipe runs before and after the meter to maintain stable flow profiles and prevent measurement errors.
1. Zero Flow Reading or No Flow Indication
Symptoms: The flow meter shows zero reading when there should be flow, or displays no indication at all.
Possible Causes:
-
Power supply failure or electrical connection issues
-
Sensor failure or damage
-
Complete pipe blockage or closed valves
-
Incorrect parameter settings
-
Air bubbles in liquid applications
Troubleshooting Steps:
-
Verify power supply and check all electrical connections
-
Inspect for physical damage to the sensor or electronics
-
Confirm valves are open and check for pipe blockages
-
Reset to factory defaults and reconfigure parameters
-
Install air release valves or check system for air entrapment
2. Inaccurate Readings or Measurement Drift
Symptoms: Flow measurements don't match expected values or show gradual deviation over time.
Possible Causes:
-
Calibration drift due to aging components
-
Changes in fluid properties (viscosity, density, temperature)
-
Sensor fouling or buildup
-
Improper installation location
-
Electrical interference
Troubleshooting Steps:
-
Perform calibration against a known standard
-
Verify fluid properties match meter specifications
-
Clean sensors and check for buildup
-
Ensure proper straight pipe runs before and after meter
-
Check grounding and shield cables from interference
3. Erratic or Unstable Readings
Symptoms: Flow readings fluctuate wildly without corresponding changes in actual flow.
Possible Causes:
-
Turbulent flow conditions
-
Cavitation in the system
-
Loose electrical connections
-
Sensor damage or degradation
-
Two-phase flow (gas in liquid or vice versa)
Troubleshooting Steps:
-
Install flow conditioners to stabilize flow profile
-
Check system pressure to prevent cavitation
-
Tighten all electrical connections and inspect cables
-
Test with known good sensor if available
-
Ensure single-phase flow or use appropriate meter technology
4. No Output Signal or Communication Failure
Symptoms: The flow meter appears operational but sends no signal to control systems.
Possible Causes:
-
Output circuit failure
-
Configuration errors in output settings
-
Wiring issues or broken cables
-
Communication protocol mismatch
-
PLC/DCS interface problems
Troubleshooting Steps:
-
Verify output configuration (4-20mA, pulse, etc.)
-
Check wiring continuity and connections
-
Test with simulation mode if available
-
Confirm communication settings (baud rate, address, protocol)
-
Check receiving device configuration and wiring

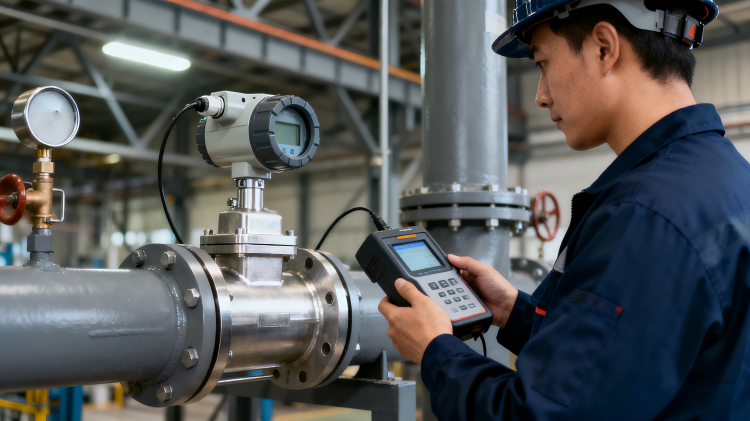

Preventive Maintenance Tips
Regular maintenance can prevent many common flow meter problems:
-
Establish a regular calibration schedule based on application criticality
-
Implement routine visual inspections for damage or leaks
-
Clean sensors according to manufacturer recommendations
-
Maintain proper filtration to prevent particulate buildup
-
Keep accurate records of performance and maintenance history
Flow Meter Technology Comparison
|
Feature
|
Ultrasonic
|
Magnetic
|
Turbine
|
Coriolis
|
|
Accuracy
|
±1%
|
±0.5%
|
±1.5%
|
±0.1%
|
|
Moving Parts
|
No
|
No
|
Yes
|
No
|
|
Pressure Drop
|
None
|
None
|
High
|
Medium
|
|
Corrosive Fluids
|
Excellent
|
Good
|
Poor
|
Excellent
|
|
Maintenance Required
|
Low
|
Low
|
High
|
Low
|
Recommended Solution: GAIMC Ultrasonic Flow Meters
For reliable flow measurement with minimal maintenance, consider GAIMC's ultrasonic flow meters. These non-intrusive meters offer:
-
No moving parts for reduced maintenance
-
High accuracy across various fluid types
-
Bidirectional flow measurement capability
-
Minimal pressure drop in the system
-
Advanced diagnostics and self-monitoring features
Explore our complete flow measurement solutions for your specific application needs.

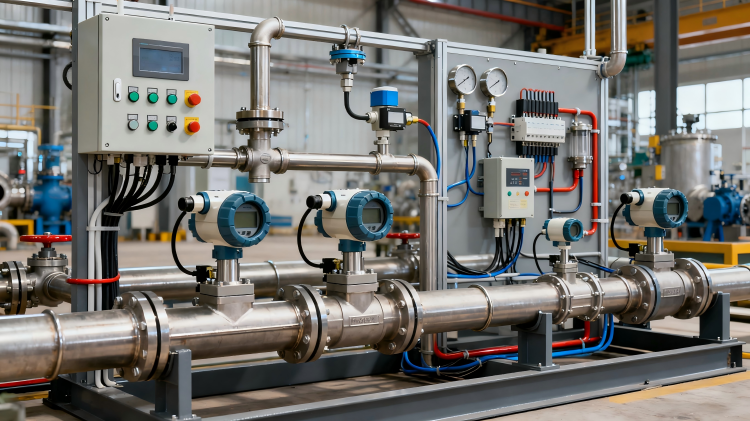

Modern flow measurement systems integrate multiple technologies to provide comprehensive monitoring and control capabilities for industrial processes.
