Are you managing pharmaceutical manufacturing processes that require precise liquid handling and strict hygiene standards? Discover how sanitary turbine flow meters and ultrasonic flow meters deliver exceptional accuracy for filling applications, small flow detection, and CIP-compliant installation. This article will show you how to optimize your pharmaceutical processes with flow measurement technologies designed for sanitary applications.
The Critical Role of Flow Measurement in Pharmaceutical Manufacturing
Pharmaceutical manufacturing demands uncompromising precision in liquid handling, from active pharmaceutical ingredient (API) transfer to final product filling. Flow measurement accuracy directly impacts product quality, batch consistency, and regulatory compliance in an industry where margins for error are virtually nonexistent.
Sanitary Turbine Flow Meters: Precision in Pharmaceutical Applications
Sanitary turbine flow meters offer exceptional accuracy for low-viscosity pharmaceutical fluids, providing reliable measurement for precise batching and filling operations. Their simple mechanical design ensures consistent performance in critical pharmaceutical processes.

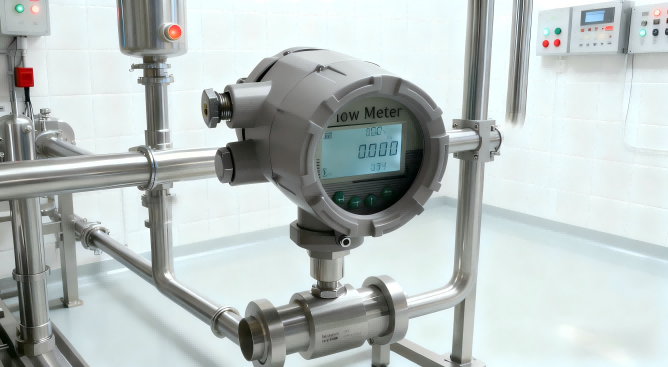

Tri-clamp sanitary turbine flow meter designed for pharmaceutical clean-in-place systems
Key Advantages for Pharmaceutical Applications
High Precision Filling
±0.5% accuracy ensures precise volume measurement for vial and syringe filling operations.
Small Flow Capability
Accurately measures flow rates as low as 0.1 L/min for micro-dosing applications.
Sanitary Design
316L stainless steel construction with Ra ≤ 0.8 μm surface finish meets FDA and cGMP requirements.
Easy Disassembly
Tri-clamp connections allow quick disassembly for cleaning and sterilization.
CIP/SIP Compatible
Withstands clean-in-place and sterilize-in-place procedures without performance degradation.
Material Traceability
Full material certification and traceability for regulatory compliance.
Ultrasonic Flow Meters: Non-Contact Pharmaceutical Measurement
Clamp-on ultrasonic flow meters provide completely non-intrusive measurement, eliminating contamination risks and maintaining system integrity. Ideal for applications where product purity is paramount and system modifications are restricted.
Pharmaceutical-Grade Ultrasonic Technology
- Zero Contamination Risk - External mounting prevents product contact and maintains sterility
- No Pressure Drop - Maintains system pressure integrity without flow obstruction
- Bidirectional Measurement - Monitors forward and reverse flow for complex process lines
- Multi-Point Calibration - Factory-calibrated for pharmaceutical fluid characteristics

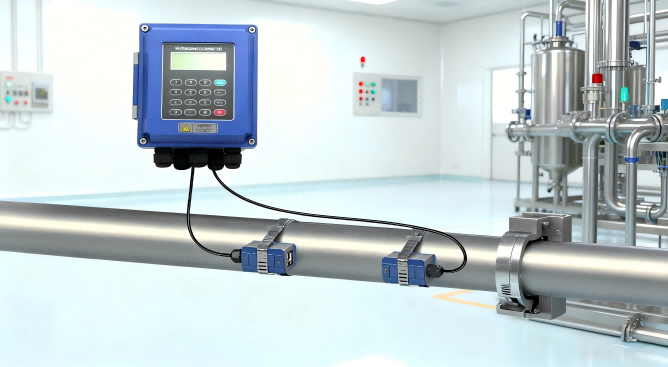

Non-contact ultrasonic flow measurement maintains system sterility and integrity
Critical Pharmaceutical Applications
Precision Filling and Dosing
Sanitary turbine flow meters provide the accuracy required for automated filling machines, ensuring consistent fill volumes for vials, syringes, and IV bags. Real-time feedback enables immediate correction of filling deviations.
API and Excipient Batching
Accurate measurement of active pharmaceutical ingredients and excipients during batching operations ensures formulation consistency and compliance with master batch records.
Purified Water and WFI Systems
Monitor and control water for injection (WFI) and purified water distribution systems with flow meters designed for high-purity applications and validation requirements.
CIP System Monitoring
Verify cleaning solution flow rates and distribution during clean-in-place operations to ensure effective cleaning and regulatory compliance.
Selecting the Right Flow Technology
Choosing between sanitary turbine and ultrasonic flow meters depends on your specific pharmaceutical application requirements:
| Application Factor | Sanitary Turbine | Ultrasonic |
|---|---|---|
| Accuracy Requirements | ±0.5% to ±1% of reading | ±1% to ±2% of reading |
| Small Flow Capability | Excellent (down to 0.1 L/min) | Good (down to 1 L/min) |
| Installation Requirements | In-line installation required | External clamp-on mounting |
| Cleaning Validation | Requires disassembly for inspection | No impact on cleaning validation |
| Fluid Compatibility | Low viscosity fluids only | All fluid types |
GAIMC Pharmaceutical Flow Solutions
GAIMC offers specialized sanitary flow meters and ultrasonic flow meters designed specifically for pharmaceutical applications. Our solutions integrate with comprehensive pharmaceutical manufacturing systems.
Recommended Products
GTF400 Sanitary Turbine Flow Meter
Tri-clamp connections, 316L stainless steel, ±0.5% accuracy, ideal for filling applications
Flow Range: 0.1-100 L/min
GUF120A-W Ultrasonic Flow Meter
Clamp-on design, CIP-compatible, no system modification required
Flow Range: 1-500 L/min
Compliance and Standards
Our pharmaceutical flow meters comply with FDA 21 CFR Part 11, cGMP requirements, and ISO 2852 (sterile couplings). All materials meet USP Class VI requirements and provide full material traceability. Validation support packages include IQ/OQ documentation and calibration certificates traceable to NIST standards.
Frequently Asked Questions
Our sanitary turbine flow meters typically achieve ±0.5% accuracy for filling applications, with some models reaching ±0.25% under controlled conditions. This precision ensures consistent fill volumes and minimizes product giveaway while maintaining regulatory compliance.
All wetted surfaces feature 316L stainless steel with Ra ≤ 0.8 μm surface finish, self-draining design, and crevice-free construction. Tri-clamp connections allow quick disassembly for visual inspection and cleaning validation, meeting strict pharmaceutical hygiene standards.
Sanitary turbine meters are ideal for low-viscosity fluids (typically below 20 cP). For viscous products, we recommend our ultrasonic flow meters which are unaffected by fluid viscosity and maintain accuracy across a wide range of pharmaceutical products.
We provide comprehensive validation support packages including Installation Qualification (IQ), Operational Qualification (OQ) documentation, material certificates, calibration records traceable to NIST, and ongoing support for audit requirements.
Yes, both our sanitary turbine and ultrasonic flow meters are designed to withstand clean-in-place (CIP) and sterilize-in-place (SIP) procedures. They can handle typical pharmaceutical cleaning solutions and sterilization temperatures up to 130°C.
