Instock DS18B20
  • Instock DS18B20

Instock DS18B20

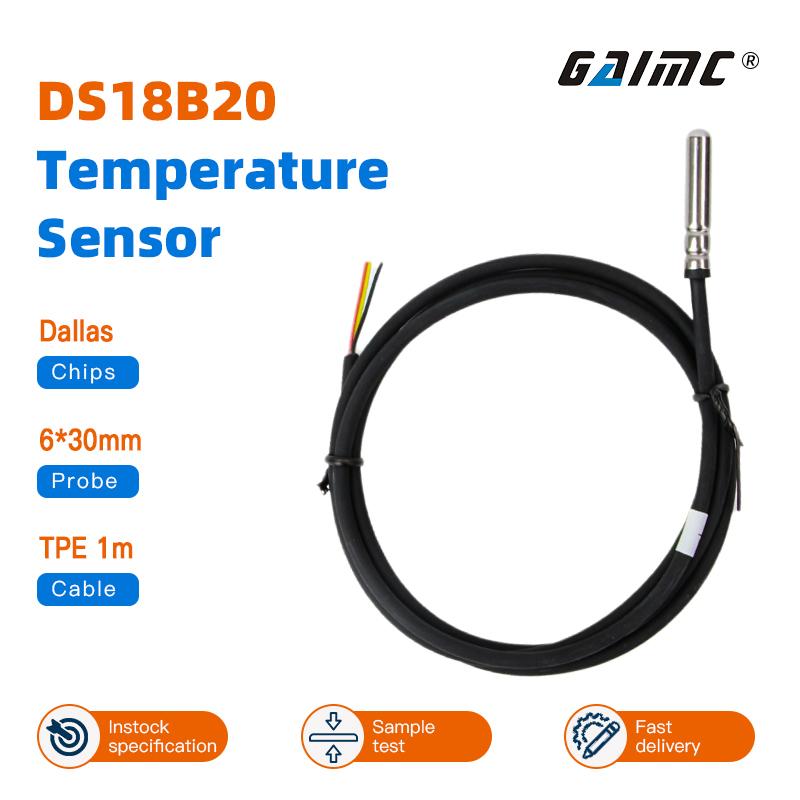

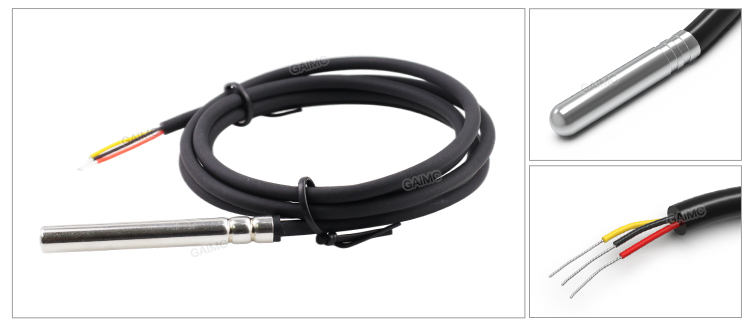

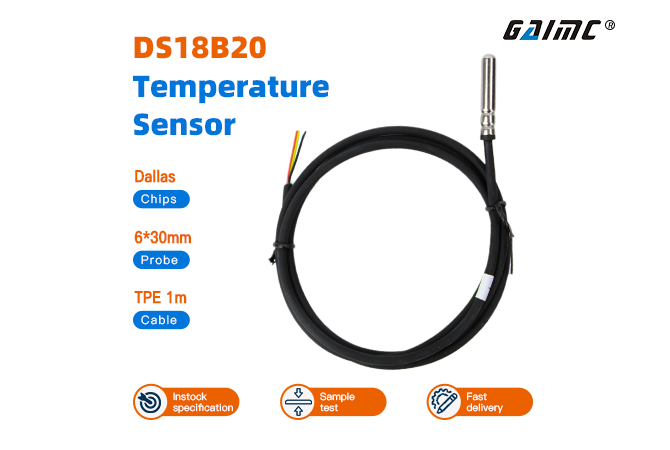

DS18B20 temperature senor

1. Digital signal output
2. Temperature sensing quickly,Accurate ,
3. Impact resistance, strong waterproof, long service life
4. Without external components, the unique single bus interface
Get Quotes

INSTOCK Temperature Sensor（NTC+DS18B20+PT100+PT1000）

We have a special inventory temperature sensor to provide customers with sample support, cheap price, fast delivery, to help you save the time cost of samples.Our temperature sensors are widely used in air conditioners, BBQ, refrigerators, ovens, 3D printers, aquariums and so on .

Sample testing

We provide following instock specifications of ds18b20 temperature sensors, if you want a quick sample, please Send Inquiry immediately. Of course, we also provide customized services, please Send your application, parameters or drawings.

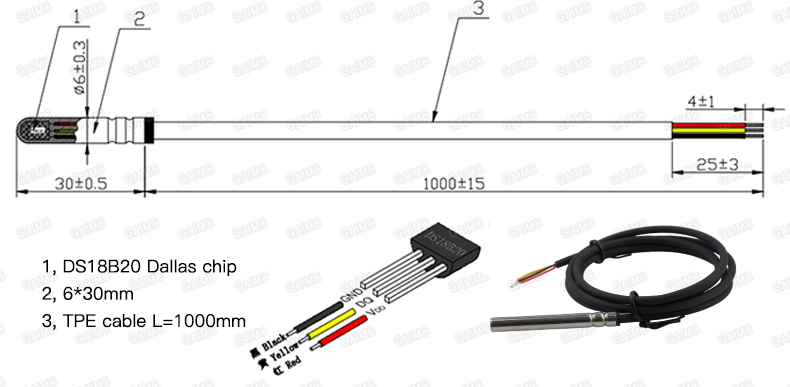

Parameters

Element ds18b20
Connection mode
 Black:GND Yellow:DATA Red:VDD+
Probe size
 Diameter: ¢ 6~ ¢ 9mm, length: 10mm~1000mm
Power supply
 3.0~5.5VDC
Temperature range
 -55~+125℃(when the temperature is -10~+85℃,the accuracy is±0.5℃)
Cable material
 PVC, TPE, PFA, Silicone, Braided, Shielded...
Wire end
 Coated tin, with connector like JST, Molex, Audio jack, RS45, M8 and so on.
Support customization
