NTC temperature sensor

INSTOCK Temperature Sensor（NTC+DS18B20+PT100+PT1000）

We have a special inventory temperature sensor to provide customers with sample support, cheap price, fast delivery, to help you save the time cost of samples.Our temperature sensors are widely used in air conditioners, BBQ, refrigerators, ovens, 3D printers, aquariums and so on .

Sample testing

We provide following 2 kinds of instock specifications of NTC temperature sensors, if you want a quick sample, please Send Inquiry immediately. Of course, we also provide customized services, please Send your application, parameters or drawings.

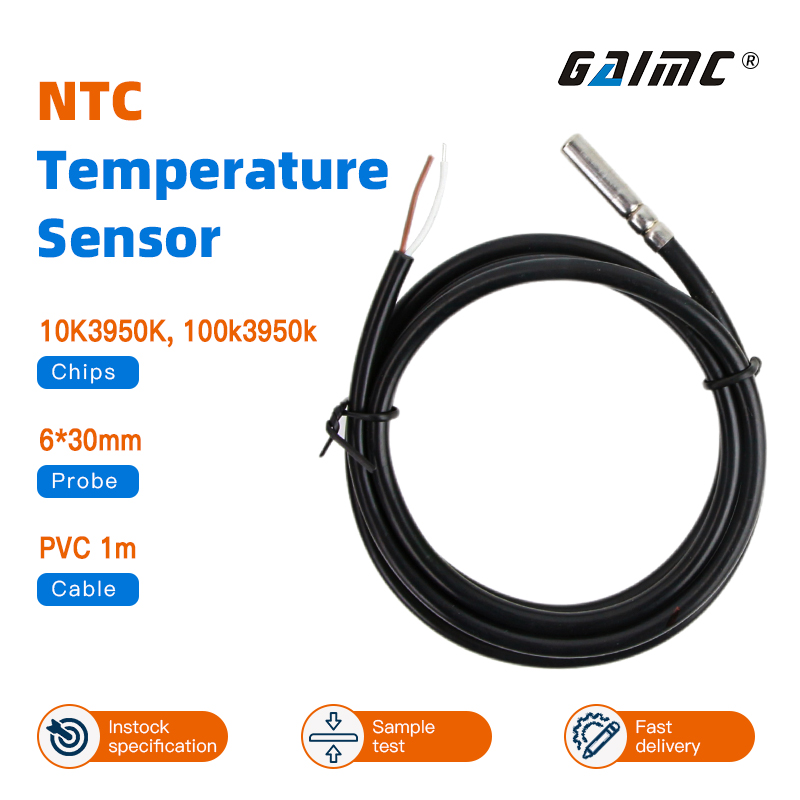

TYPE1：

TYPE2：

Parameters

Element	NTC
R value R25	1KΩ~1400KΩ (1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ)etc.
B value R25/50	3270K~4650K(3270K,3380K,3470K,3550K,3700K,3950K,4200K,4650K)
R25 accuracy	±1%,±2%
B value accuracy	±1%
Temperature range	-40~+300℃
Probe size	Diameter:¢1.5~¢9mm;length:3mm~1000mm
Probe material	Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC, epoxy
Support customization
