Ultrasonic Water Meter

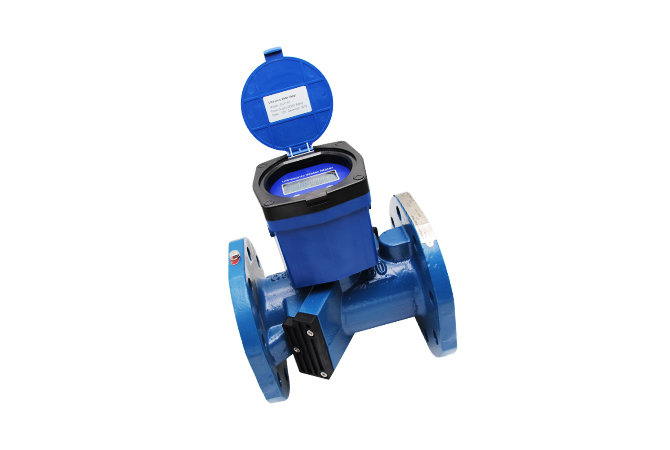

GUF142 Ultrasonic Water Meter | GAIMC

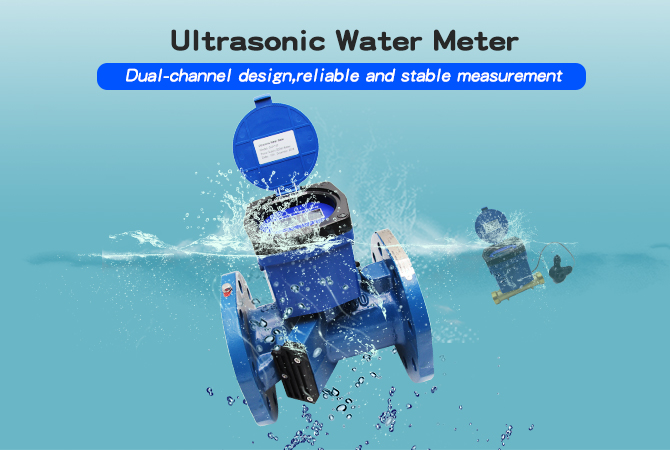

Product Overview

The GUF142 ultrasonic water meter adopts advanced transit-time measurement technology, featuring low power consumption, wide measuring range ratio, and stable reliable performance. With IP68 protection class for all components, it can operate continuously even submerged in 2 meters of water.

Equipped with a 58×22mm LCD display and smart touch keys, it supports bi-directional flow measurement (forward/backward instantaneous and accumulative flow) and multiple unit selection (m³, GAL, L, m³/h, GPM, etc.). Built-in lithium battery (3.6V, 19Ah) provides 6 years of service life, with optional DC8-36V external power supply.

Widely used in urban water supply, water resources management, irrigation, landscape management, industrial production and automation. Compatible with water, sewage, seawater (other liquids customizable) and pipe diameters from DN15 to DN300, with working pressure up to 1.6MPa (2.5MPa optional).

GUF142 Water Meter Pipeline Installation

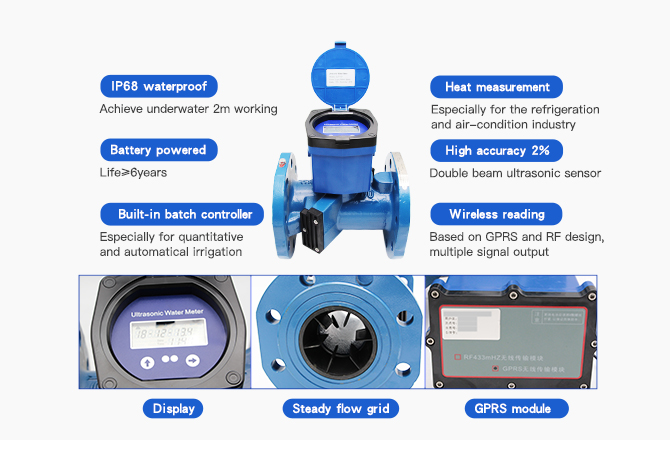

Key Features

🌊

Bi-directional Measurement

Measures forward/backward instantaneous and accumulative flow separately for comprehensive monitoring.

🛡️

IP68 Protection

All components reach IP68 class, operable 2 meters underwater for long-term stable use.

💻

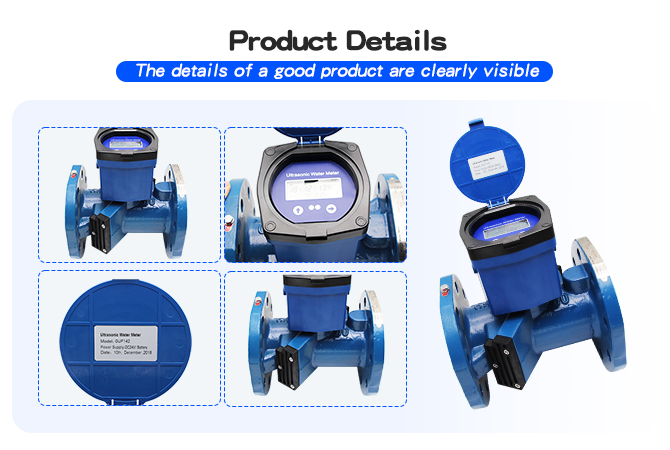

Intuitive Display & Touch Keys

58×22mm LCD shows flow data/working status; smart touch keys for easy operation.

🔗

Multiple Communication Options

RS485/M-BUS/MODBUS; optional GPRS/RF module for wireless meter reading.

🔋

Long Battery Life

Built-in 3.6V lithium battery, 6 years service life; optional DC8-36V external power.

📏

Wide Pipe Compatibility

DN15~DN300 pipe range, compatible with copper/ductile iron/carbon steel pipes.

Technical Specifications

Parameter	Details
Measuring Medium	Water, sewage, seawater (other liquids customizable), liquid must fill the pipeline
Medium Temperature	0.1~30℃
Working Environment	Temperature: -10~45℃; Humidity: ≤100% RH
Working Pressure	1.6MPa (2.5MPa optional)
Pipe Diameter Range	DN15~DN40 (Single Channel, Copper); DN50~DN300 (Dual Channel, Ductile Iron/Carbon Steel)
Flow Range Ratio (R)	DN15~DN40: R=200; DN50~DN300: R=100
Power Supply	Built-in lithium battery (3.6V, 19Ah); Optional DC8~36V external power
Power Consumption	≤2.7Ah/Year, 6 years battery life
Protection Level	IP68 (operable 2 meters underwater)
Communication Interface	Standard: RS485/M-BUS/MODBUS; Optional: GPRS/RF module
Output Signal	OCT pulse output, TTL pulse output, 4-20mA two-wired output
Data Storage	EEPROM/FLASH, automatically records last 512 days accumulative flow

Ordering Code & Configuration

Example: GUF142-DN100-1-1-1-0 (DN100, Casted Ductile Iron, RS485, DC8-30V, No Wireless Module)

Code	Parameter	Options
A	Pipe Diameter	DN15~DN40 (Single Channel); DN50~DN300 (Dual Channel)
B	Pipe Material	1.Casted Ductile Iron 2.Carbon Steel 3.Copper 4.Stainless Steel
C	Communication Interface	0.None 1.RS485 2.M-BUS (Standard: RS485)
D	Output Signal/Power	0.None 1.DC8-30V 2.4-20mA 3.OCT1 4.OCT2 5.TTL Output (Standard: DC8-30V)
E	Wireless Module	0.None 1.RF Module 2.GPRS Module

Core Applications

🏙️

Urban Water Supply

Residential/commercial water consumption measurement, bi-directional flow monitoring.

💧

Water Resources Management

River/lake water flow monitoring, irrigation system flow measurement.

🏭

Industrial Production

Process water/sewage flow measurement, automation system integration.

🌳

Landscape & Irrigation

Garden irrigation, landscape water supply flow control and monitoring.

FAQ

What is the protection level of the GUF142?

All components of the GUF142 reach IP68 protection level, allowing continuous operation in 2 meters of water, suitable for harsh humid environments.

What pipe diameters is the meter compatible with?

It supports DN15~DN40 (single channel, copper material) and DN50~DN300 (dual channel, casted ductile iron/carbon steel material), covering most urban and industrial pipeline sizes.

How long is the battery life?

The built-in 3.6V 19Ah lithium battery provides up to 6 years of service life with power consumption ≤2.7Ah/Year. Optional DC8~36V external power supply is also available for long-term operation.

What communication interfaces are supported?

Standard interfaces include RS485, M-BUS, and MODBUS. Optional wireless modules (GPRS/RF) support remote meter reading, and infrared communication is available for on-site data download and software upgrade.

Can it measure non-water liquids?

The standard version is designed for water, sewage, and seawater. Measurement of other liquids is available through customization—contact the manufacturer to confirm compatibility for specific liquids.
