Handheld Ultrasonic Flow Meter

GUF100 Handheld Ultrasonic Flow Meter | GAIMC

Product Overview

The GUF100 is a portable handheld ultrasonic flow meter developed by Xi'an Gavin Electronic Technology Co., Ltd. Based on transit-time ultrasonic principle, it adopts non-intrusive clamp-on transducers for flow measurement without pipe cutting or production shutdown—eliminating pressure drop and fluid contamination risks.

Equipped with a 4×16 character backlit LCD display, it supports multiple languages (Chinese, English, Italian, customizable) and built-in 24K data logger (stores over 2000 lines of data). The rechargeable Ni-MH battery provides over 12 hours of continuous operation, making it ideal for on-site inspection and mobile measurement.

Compatible with pipe diameters from DN32mm to DN6000mm (bracket transducers up to DN7000mm), measuring medium temperature from -30℃ to 160℃. It is widely used for ultra-pure liquids, potable water, chemicals, sewage, cooling water, oil, beverages, and plant effluent.

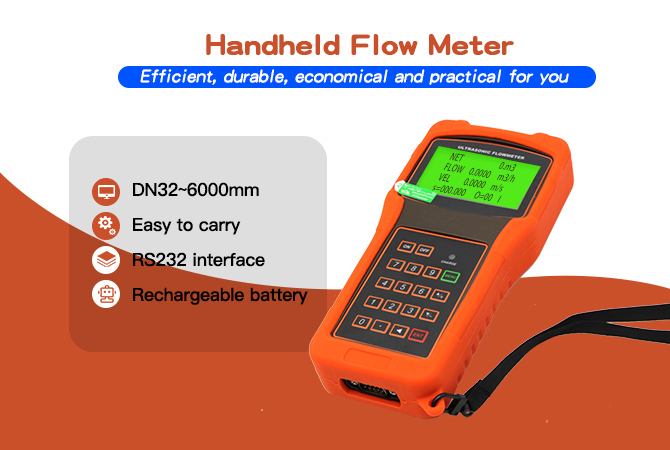

GUF100 Handheld Ultrasonic Flow Meter Main Unit

Key Features

📊

±1% High Accuracy

Transit-time ultrasonic principle ensures precise flow measurement for various single-phase liquids.

📏

Wide Pipe Range

DN32~DN6000mm (standard transducers); up to DN7000mm with bracket transducers.

🔋

Long Battery Life

Rechargeable Ni-MH battery provides over 12 hours of continuous operation.

🔧

Non-Invasive Measurement

Clamp-on transducers, no pipe cutting, no pressure drop or fluid disturbance.

🌐

Multi-Language Support

Chinese, English, Italian (customizable) menu for global users.

💻

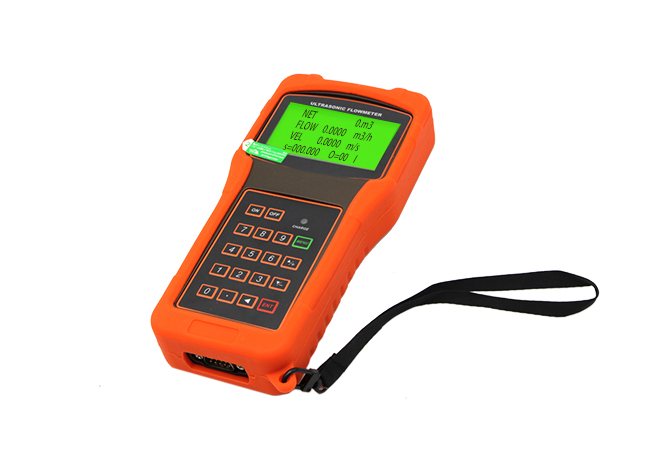

Large LCD Display

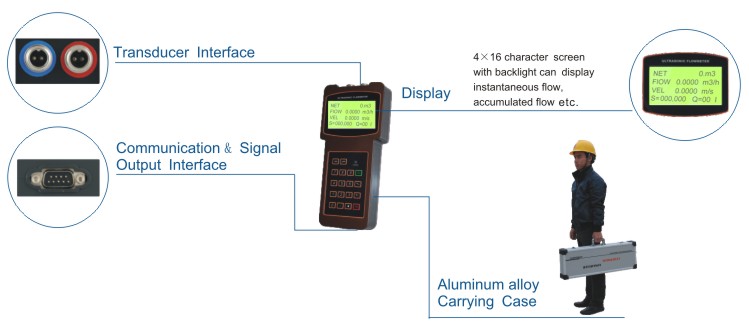

4×16 character backlit screen, shows instantaneous/accumulated flow, velocity, working status.

Technical Specifications

Parameter	Details
Measurement Principle	Transit-time ultrasonic
Accuracy	±1% of reading
Display	4×16 character LCD with backlight, multi-language support
Data Logger	Built-in 24K memory, stores over 2000 lines of data

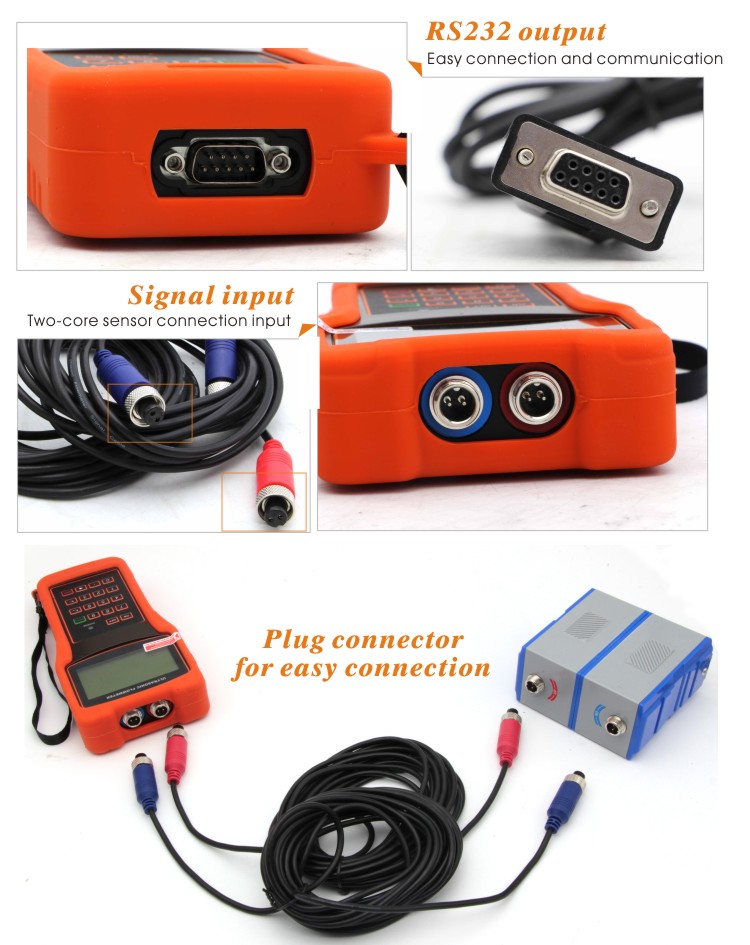

Communication Interface	Isolated RS232 (software upgradeable); optional RS485 (transmission distance >1000m)

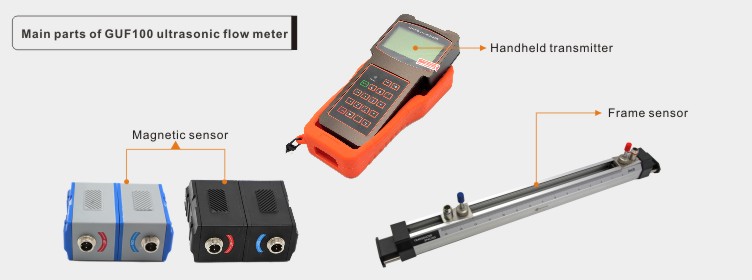

Pipe Diameter Range	Standard transducers: DN32~DN6000mm; Bracket transducers: DN15~DN7000mm
Measuring Medium	Water (hot/chilled/city/sea/waste), oil (crude/lubricating/diesel), chemicals, sewage, beverages, ultra-pure liquids, etc.
Medium Temperature	-30℃ ~ 160℃
Flow Velocity Range	0 ~ ±10 m/s
Turbidity	≤10000ppm, low bubble content
Pipe Material	Steel, stainless steel, cast iron, copper, cement, PVC, aluminum, glass fiber (liner allowed)
Power Supply	3×AAA Ni-MH rechargeable batteries (1.2V); 90~260VAC adapter
Battery Life	Over 12 hours of continuous operation
Dimensions	Converter: 200×93×32mm
Protection Level	Transducer: IP67

Ordering Code & Standard Configuration

Example: GUF100-TM+10m

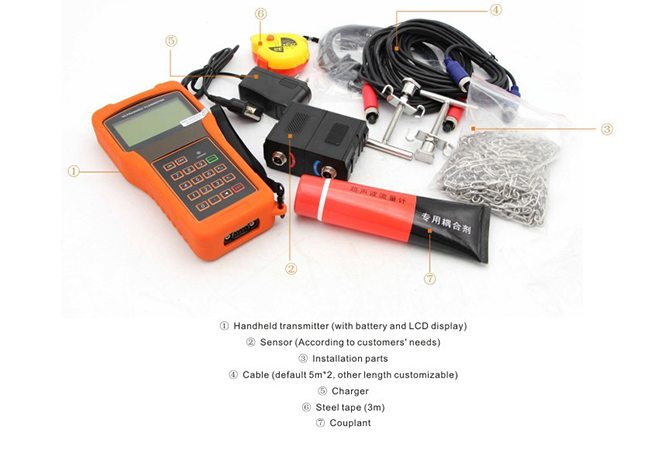

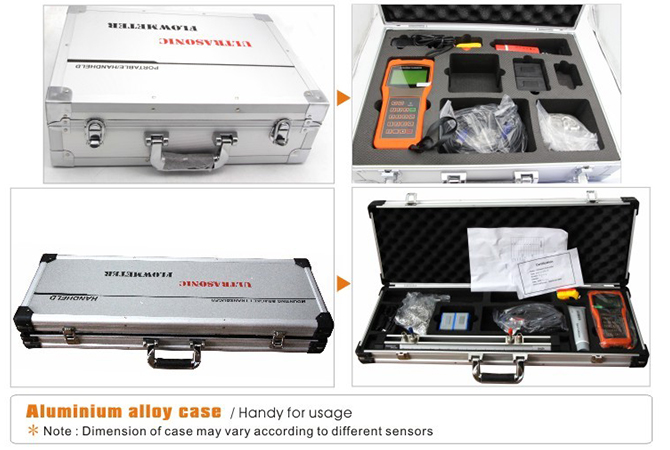

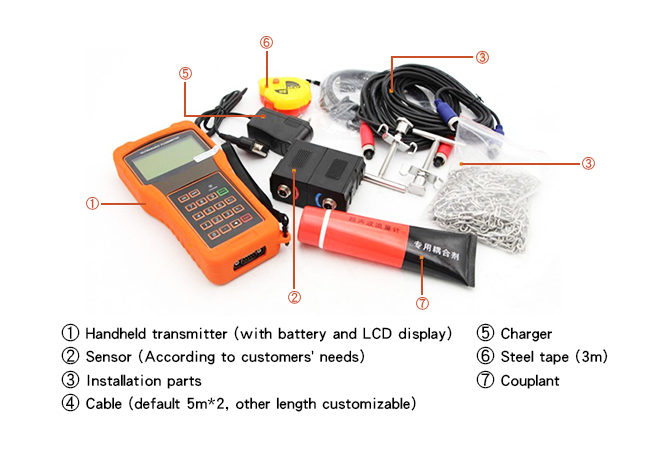

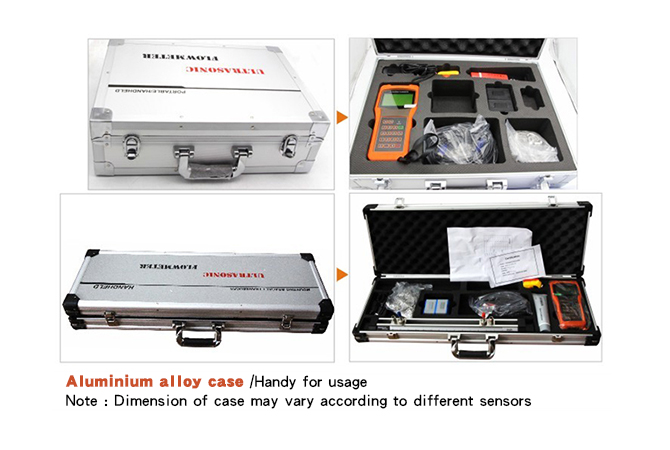

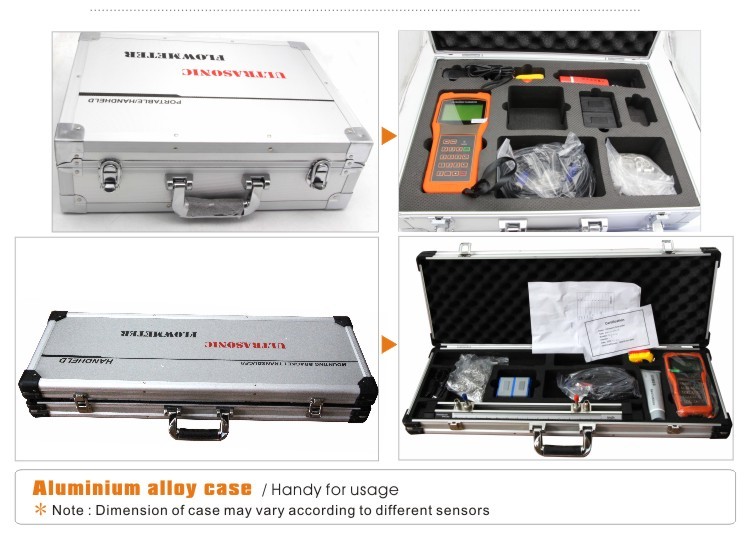

Standard Inclusions: GUF100-TM Transducer + 5m×2 twisted-pair cable + Stretcher + Couplant (1pc) + Carrying case + Ruler

Model	Transducer Type	Cable Length Option
GUF100	TS	Customizable (standard 5m, max 50m)
	TM	Customizable (standard 5m, max 50m)
	TL	Customizable (standard 5m, max 50m)
	TS-HT	Customizable (standard 5m, max 50m)
	TM-HT	Customizable (standard 5m, max 50m)
	TL-HT	Customizable (standard 5m, max 50m)
	TC-1	Customizable (standard 5m, max 50m)
	TC-2	Customizable (standard 5m, max 50m)

Core Applications

🏭

Industrial On-site Inspection

Mobile measurement of cooling water/chemical liquid flow, no production shutdown.

💧

Water Treatment

Sewage/reclaimed water flow monitoring in municipal/industrial wastewater plants.

🛢️

Oil & Chemical

Crude oil/lubricating oil/alcohol flow measurement, non-invasive no contamination.

🍶

Beverage & Food

Pure water/beverage flow inspection, portable design for multi-point measurement.

FAQ

What is the measurement accuracy of the GUF100?

The GUF100 has a measurement accuracy of ±1% of reading, ensuring reliable data collection for various single-phase liquid flow measurements.

What pipe diameters is the meter compatible with?

Standard clamp-on transducers support DN32mm~DN6000mm; bracket transducers can extend to DN7000mm, compatible with steel, stainless steel, PVC, cement and other pipe materials.

How long does the battery last on a single charge?

The built-in rechargeable Ni-MH battery provides over 12 hours of continuous operation, suitable for all-day on-site measurement. An AC adapter (90~260VAC) is also provided for long-term use.

What languages does the display support?

The 4×16 character backlit LCD supports Chinese, English, and Italian by default. Other languages can be customized according to user needs.

How to export the stored measurement data?

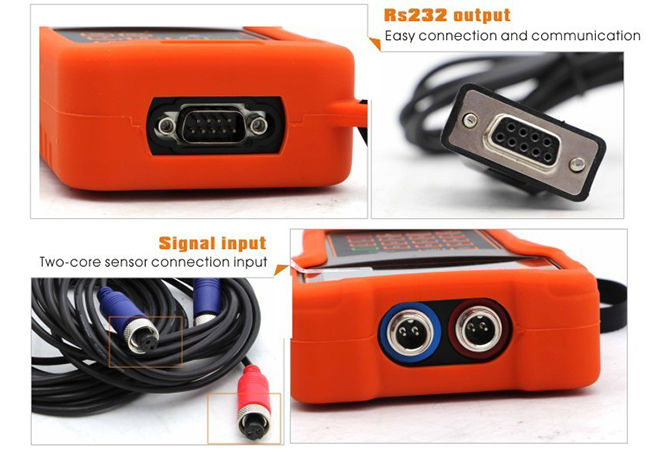

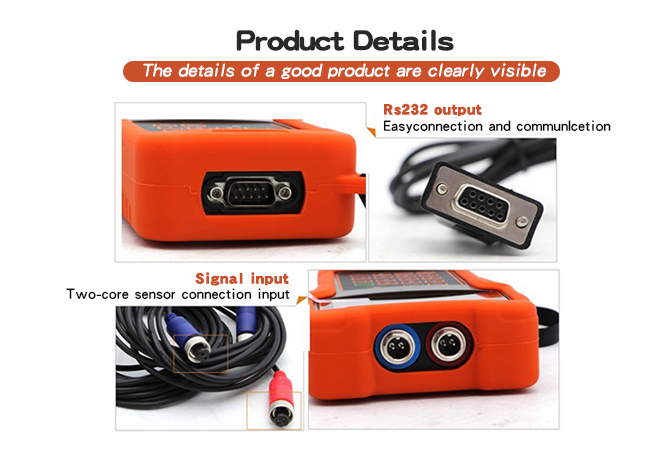

The meter is equipped with an isolated RS232 serial interface, which can connect to a computer to export data or upgrade software. Optional RS485 interface supports long-distance data transmission (over 1000m).

Portable Flow Measurement Solution

Customize the GUF100 handheld ultrasonic flow meter for your on-site measurement needs—contact us for transducer selection, cable length, and language customization.
