GVF100 Digital Gas Vortex Flow Meter | GAIMC

Product Overview

The GVF100 Digital Gas Vortex Flow Meter operates on the Karman Vortex Street principle, designed for measuring the flow rate of various gases (air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.). It can be used as a flow transmitter in automatic control systems, featuring advanced differential technology, isolated measurement, shielding, and filtering—ensuring excellent anti-vibration performance and signal stability.

With a unique sensor encapsulation and protection technology, the GVF100 guarantees a long sensor service life. It has no moving parts, a simple structure for easy installation and maintenance, and offers pipe-type and insertion-type sensor options to meet diverse on-site needs. The wide measurement range ratio (up to 20:1) and low pressure loss make it suitable for various industrial gas measurement scenarios.

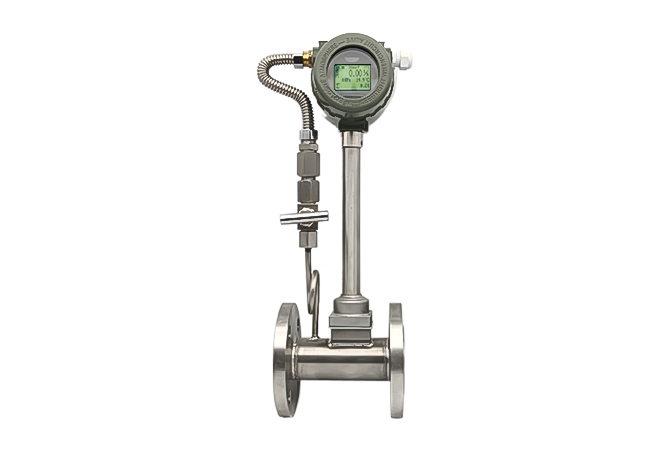

GVF100 Digital Gas Vortex Flow Meter Main Unit

Key Features

🔧

Simple Structure

No moving parts, easy installation and maintenance, reducing operational costs.

📊

Linear Pulse Output

Sensor outputs pulse signals with linear relation to actual medium flow rate for accurate data.

📏

Wide Range Ratio

Up to 20:1 measurement range ratio, adapting to diverse flow rate changes.

⚡

Low Pressure Loss

Minimal pressure loss during measurement, ensuring energy efficiency.

🛡️

Anti-Interference

Equipped with anti-interference circuit and anti-vibration sensor for stable performance.

🔄

Dual Sensor Options

Pipe-type (Class 1.5) and insertion-type (Class 2.5) sensors for different scenarios.

Technical Specifications

Parameter	Details
Measuring Medium	Air, oxygen, nitrogen, coal gas, natural gas, chemical gas, etc.
Accuracy	Pipe type: Class 1.5; Insertion type: Class 2.5
Medium Temperature	-40℃ ~ +350℃
Nominal Pressure	≤1.6MPa (≤2.5MPa, ≤4.0MPa customizable)
Flow Rate Range	5 ~ 60 m/s
Output Signal	Voltage pulse, 4-20mA analog, HART, Modbus, RS485 (optional)
Installation Type	Flange, clamp flange, insertion, thread, clamp connection
Power Supply	12~28VDC; 3.6V lithium battery (on-site display); 85~265VAC (remote display)
Operating Environment	Temperature: -25℃ ~ +60℃; Humidity: 5% ~ 90%
Housing Material	1Cr18Ni9Ti (stainless steel)

Model Selection Specification

Example: GVF100-DN100-F-A-16-M-PT-1-A-2-B (DN100, Remote with Display, Class 1.5, 1.6MPa, ≤250℃, Pressure+Temp Compensation, 12~28VDC, 4-20mA, Flange, Explosion-Proof)

Model Segment	Code	Description
GVF100	-	Product Series (Digital Gas Vortex Flow Meter)
DNXX	DN15~DN1800	Nominal Pipe Diameter (mm)
Structure	F	Remote type with display
Structure	Y	Compact type with display
Accuracy	A	Pipe type: Class 1.5
Accuracy	B	Insertion type: Class 2.5
Nominal Pressure	16	1.6MPa
Nominal Pressure	XX	Customizable (25=2.5MPa, 40=4.0MPa)
Max. Medium Temp	M	≤250℃
Max. Medium Temp	H	>250℃
Additional Function	-	No compensation
	P	With pressure compensation
	T	With temperature compensation
	PT	With pressure & temperature compensation
Power Supply	1	12~28VDC
	2	3.6V lithium battery (on-site display)
	3	85~265VAC (remote display)
Output	A	4-20mA
	M	Voltage pulse
	H	HART
	R2	RS485 (Modbus)
Installation	1	Flange
	2	Clamp flange
	3	Insertion
	4	Thread
	5	Clamp
Explosion-Proof	A	No explosion-proof
	B	Flame-proof
	G	Intrinsic explosion-proof

Core Applications

🏭

Industrial Production

Measurement of natural gas, coal gas, and chemical gas in petrochemical, chemical, and pharmaceutical industries.

💧

Energy & Power

Air and oxygen flow measurement in thermal power plants and biomass energy facilities.

🏙️

Municipal Engineering

Natural gas flow monitoring in urban gas supply networks and heating systems.

🍶

Food & Beverage

Nitrogen and carbon dioxide flow control in food packaging and beverage production.

FAQ

What gases can the GVF100 measure?

The GVF100 is suitable for measuring various non-corrosive gases, including air, oxygen, nitrogen, coal gas, natural gas, and chemical gases. It is not recommended for corrosive or particulate-containing gases unless customized with anti-corrosion materials.

What is the difference between pipe-type and insertion-type sensors?

Pipe-type sensors (Class 1.5 accuracy) are suitable for small-to-medium pipe diameters (DN15~DN300) and require full-pipe flow; insertion-type sensors (Class 2.5 accuracy) are for large diameters (DN300~DN1800), support non-shutdown installation, and have lower pressure loss.

Does the GVF100 support temperature/pressure compensation?

Yes. It offers optional pressure compensation (code "P"), temperature compensation (code "T"), or both (code "PT") to correct flow data based on actual medium temperature and pressure, ensuring accuracy under varying conditions.

What power supply options are available?

Three options: 12~28VDC (for industrial control systems), 3.6V lithium battery (on-site display, low power consumption), and 85~265VAC (remote display for fixed installations).

Is the GVF100 suitable for explosive environments?

Yes. The explosion-proof version (code "B" for flame-proof, "G" for intrinsic safety) meets industrial explosive environment requirements, suitable for oil, gas, and chemical sites with flammable gases.

Custom Gas Measurement Solution

Tailor the GVF100 Digital Gas Vortex Flow Meter to your needs—choose from pipe/insertion types, explosion-proof grades, compensation functions, and output protocols. Our technical team provides on-site installation guidance and calibration support.
