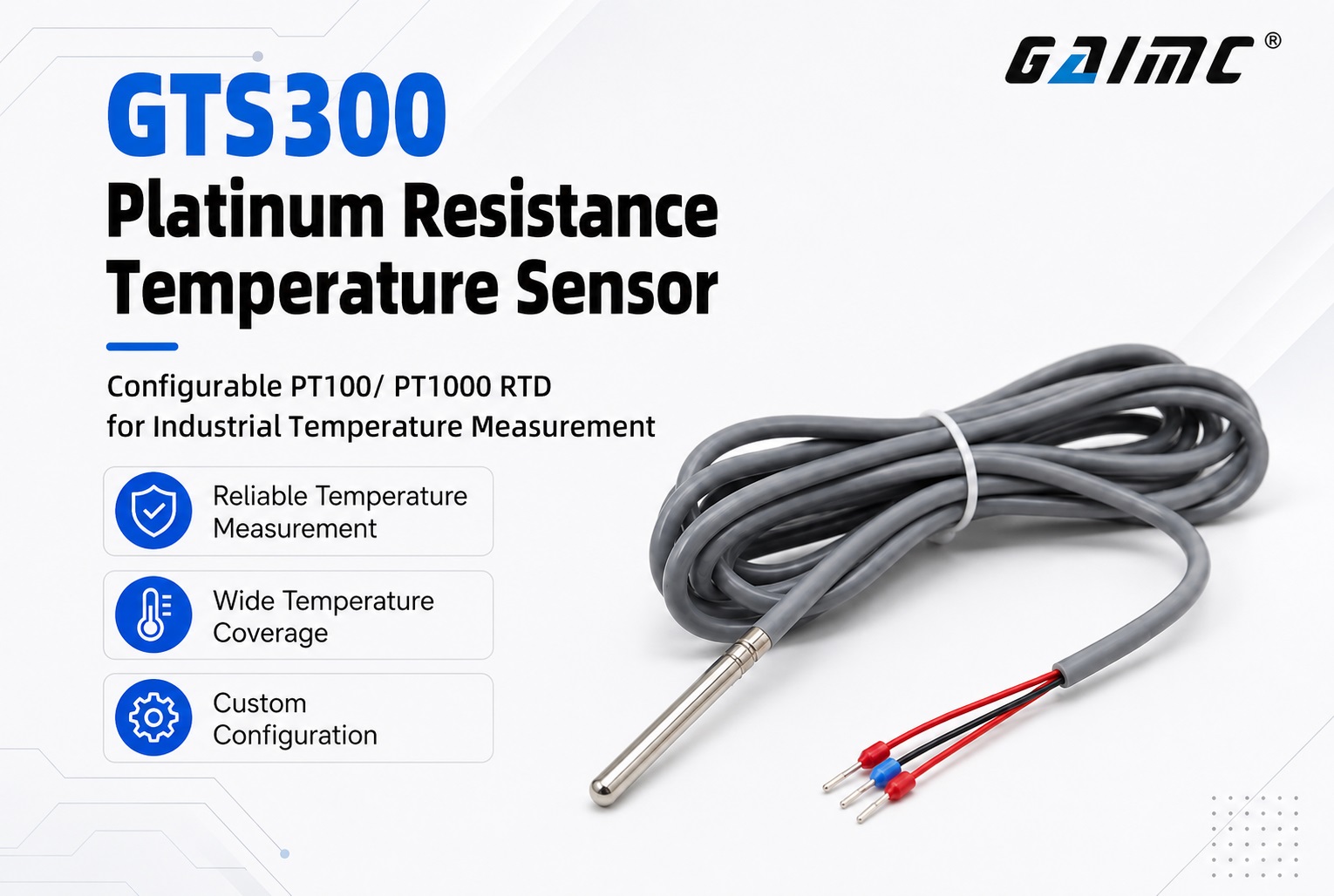

Product Overview

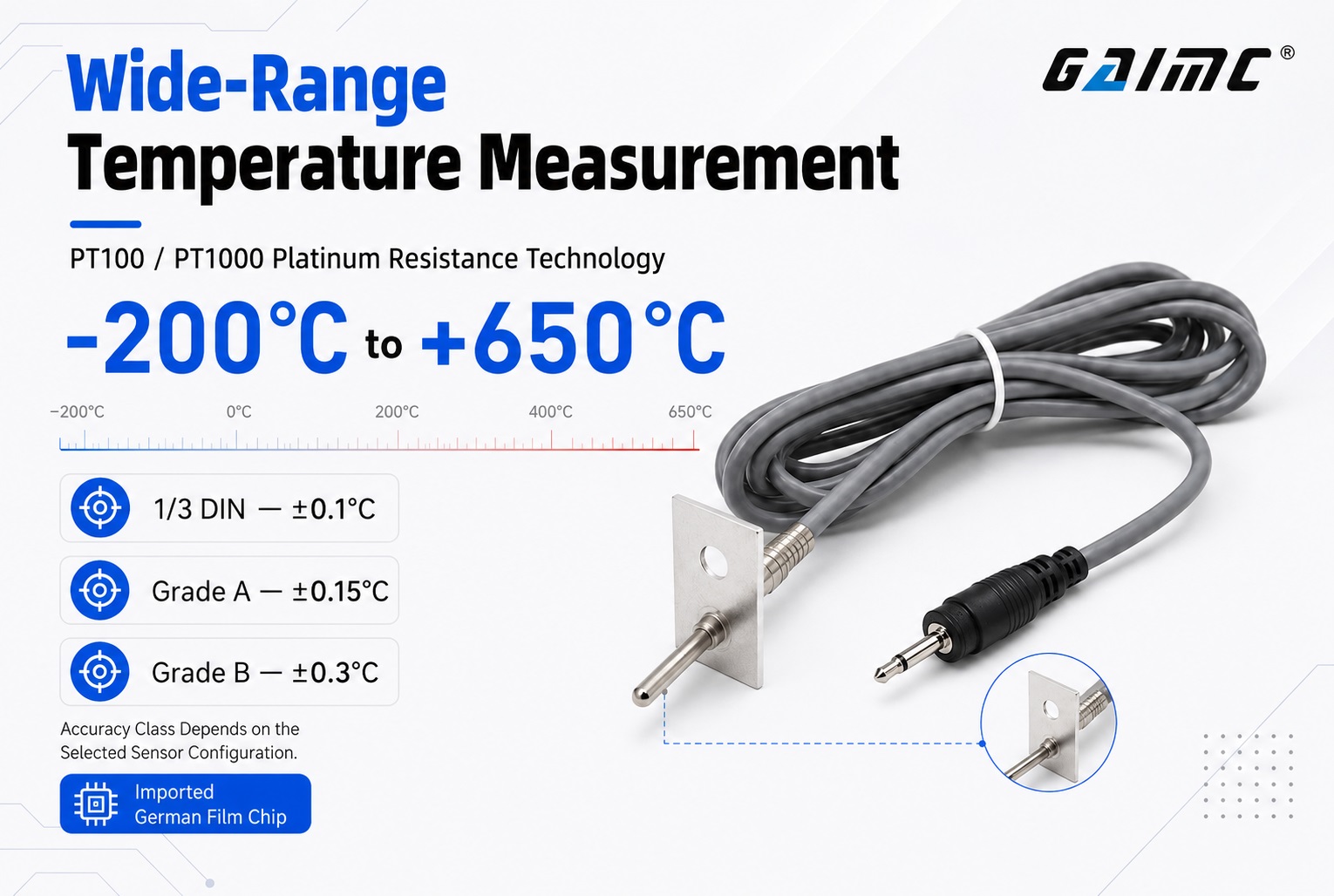

Platinum resistance temperature sensor is a temperature sensor which is made by using the resistance of metal platinum (pt) as a function of temperature. It is widely used because of its high measurement accuracy, large measurement range, reproducibility and stability. Temperature measurement in the range of medium temperature (-200°C – 650°C).

Adopting imported German film chip, the sensor offers excellent long-term stability and interchangeability. Available in PT100 and PT1000 variants to suit various precision applications.

Key Features

🎯

High Precision & Stability

1/3DIN (±0.1℃), Grade A (±0.15℃), Grade B (±0.3℃) accuracy classes for demanding applications.

📈

High Sensitivity & Linearity

Excellent linearity over the entire temperature range, ensuring accurate and repeatable measurements.

⚡

Fast Response & Interchangeability

Small response time and good interchangeability, reducing calibration efforts.

🔧

Compact & Easy Installation

Miniature structure with diameter φ3~φ9mm, length 3~1000mm, easy to integrate.

💧

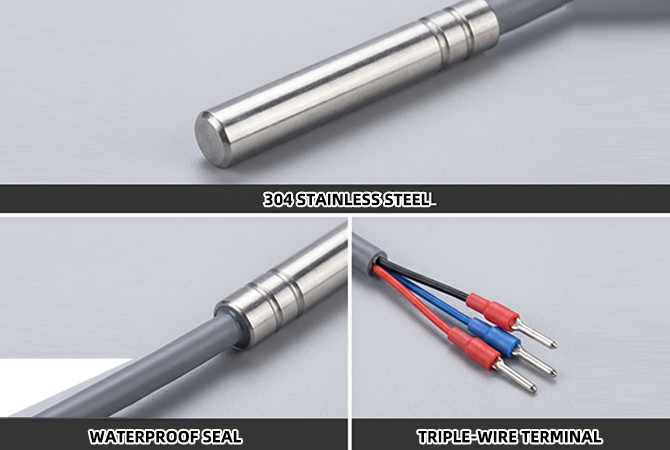

Excellent Waterproofness

Stainless steel, copper, ABS, PVC shells available, suitable for harsh environments.

🇩🇪

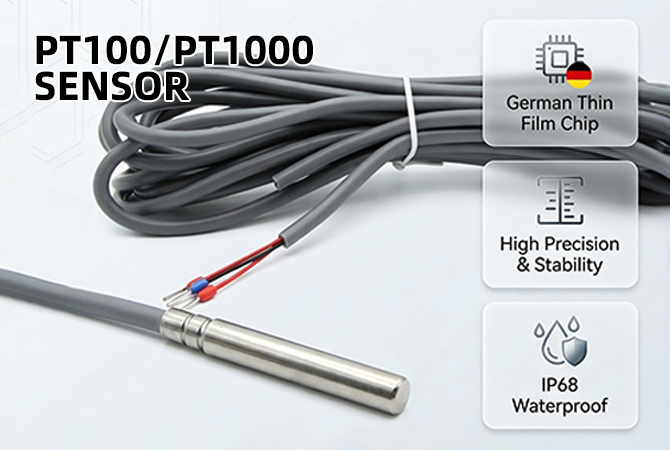

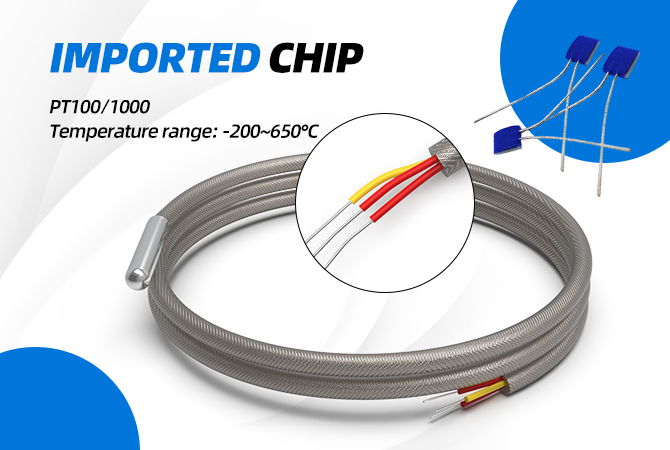

Imported German Film Chip

High-quality German thin-film technology ensures long-term drift-free operation.

Technical Specifications

Item	Details
RTD Type	PT100, PT1000
Accuracy	1/3DIN (±0.1℃), Grade A (±0.15℃), Grade B (±0.3℃)
Temperature Range	1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~+500℃

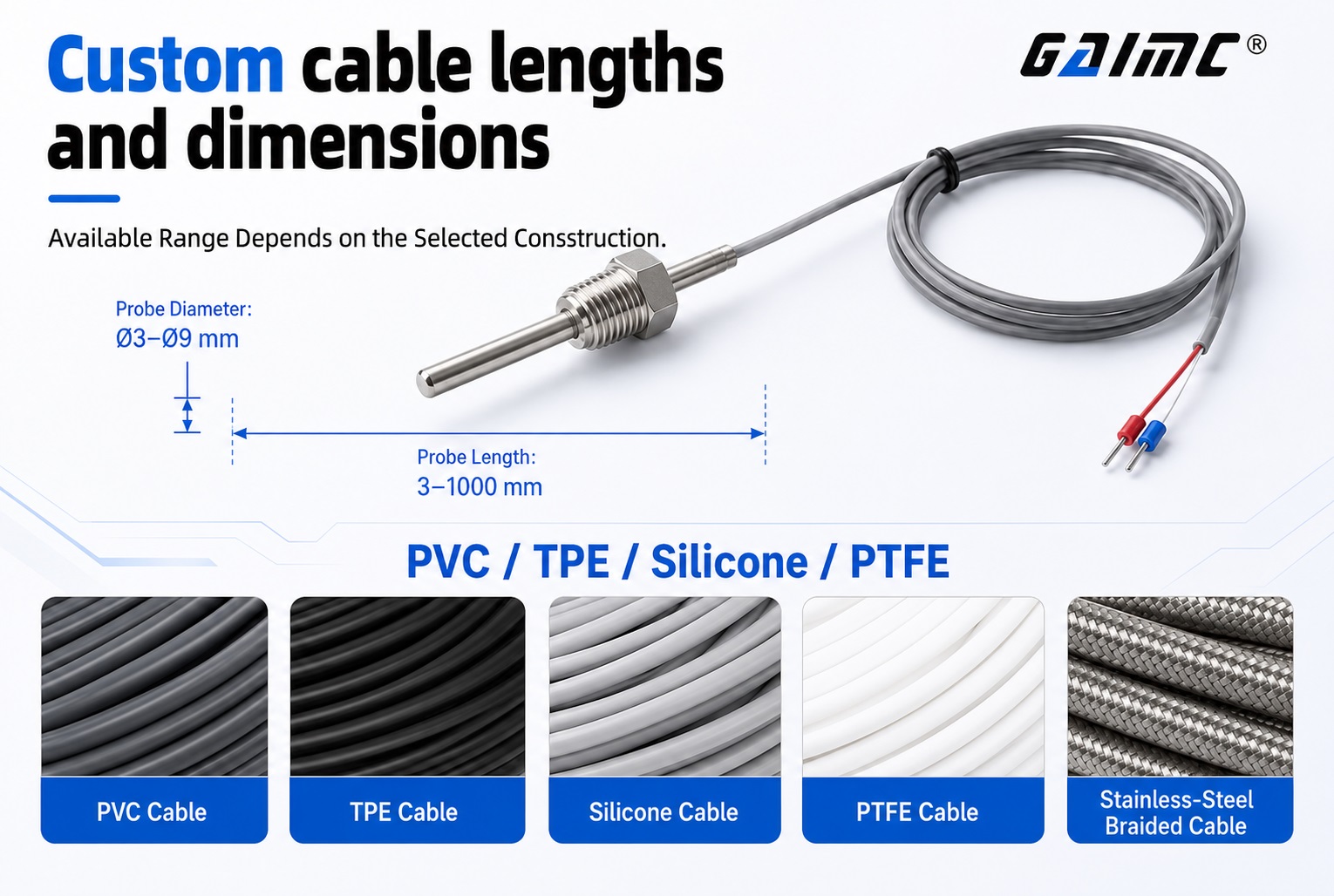

Shell Size	Diameter: φ3~φ9mm, length: 3mm~1000mm

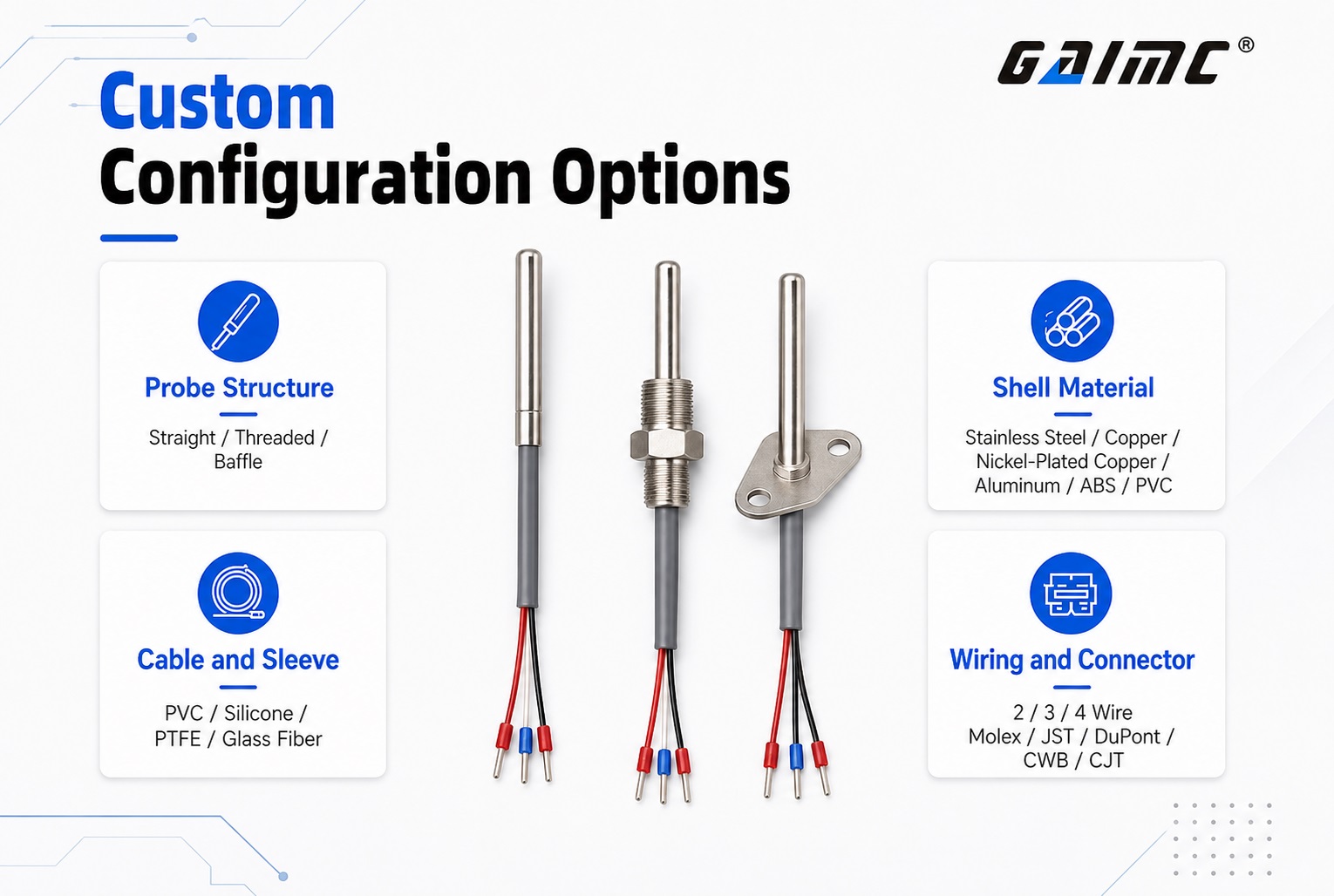

Shell Material	Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC
Wire	UL series (UL1007 etc.), supply line number, using temp. range, outside diameter and material requirements

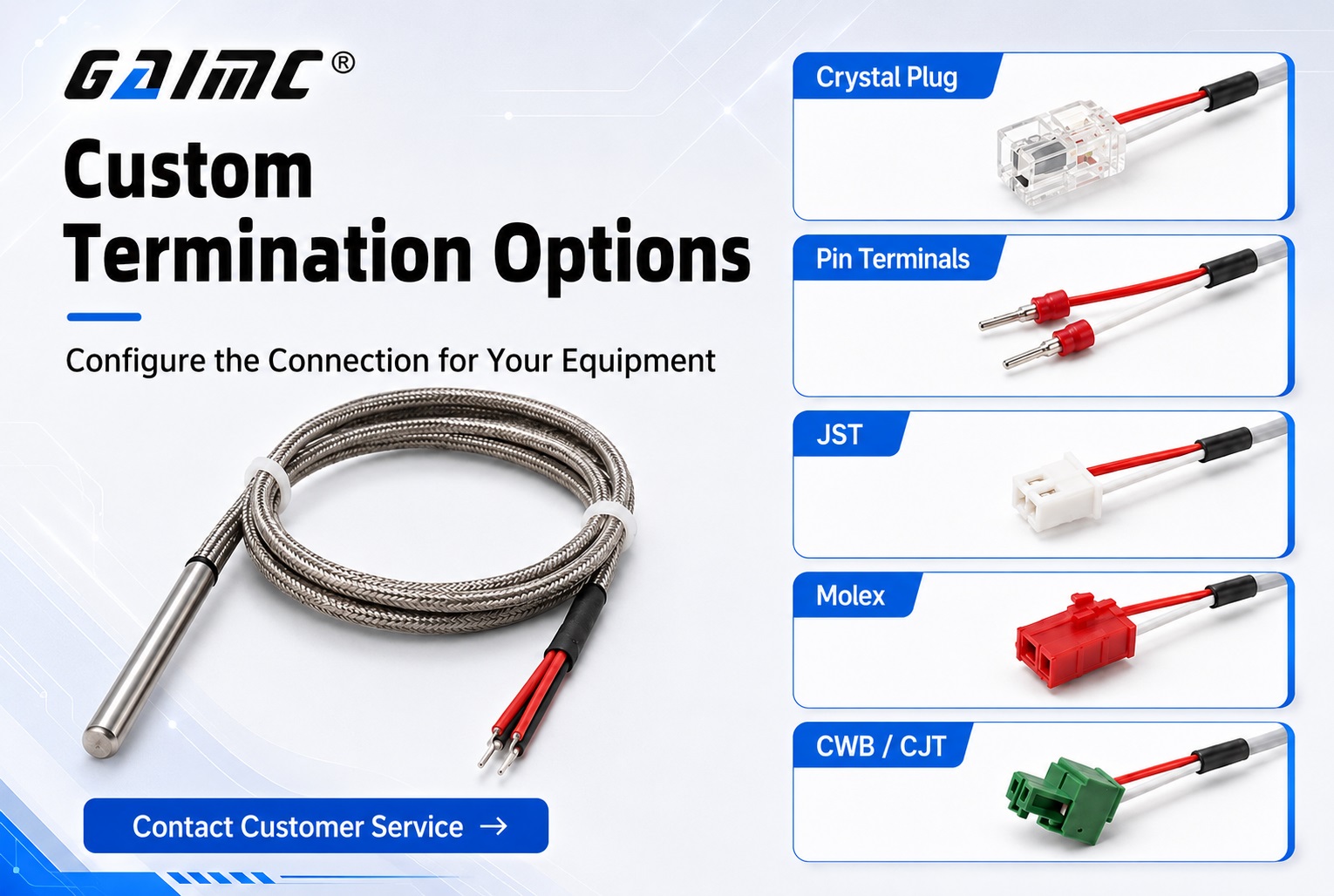

Connector	Molex, JST, DuPont, CWB, CJT, etc.
Heat-shrinkable sleeve	PVC tube; glass fiber tube; teflon tube

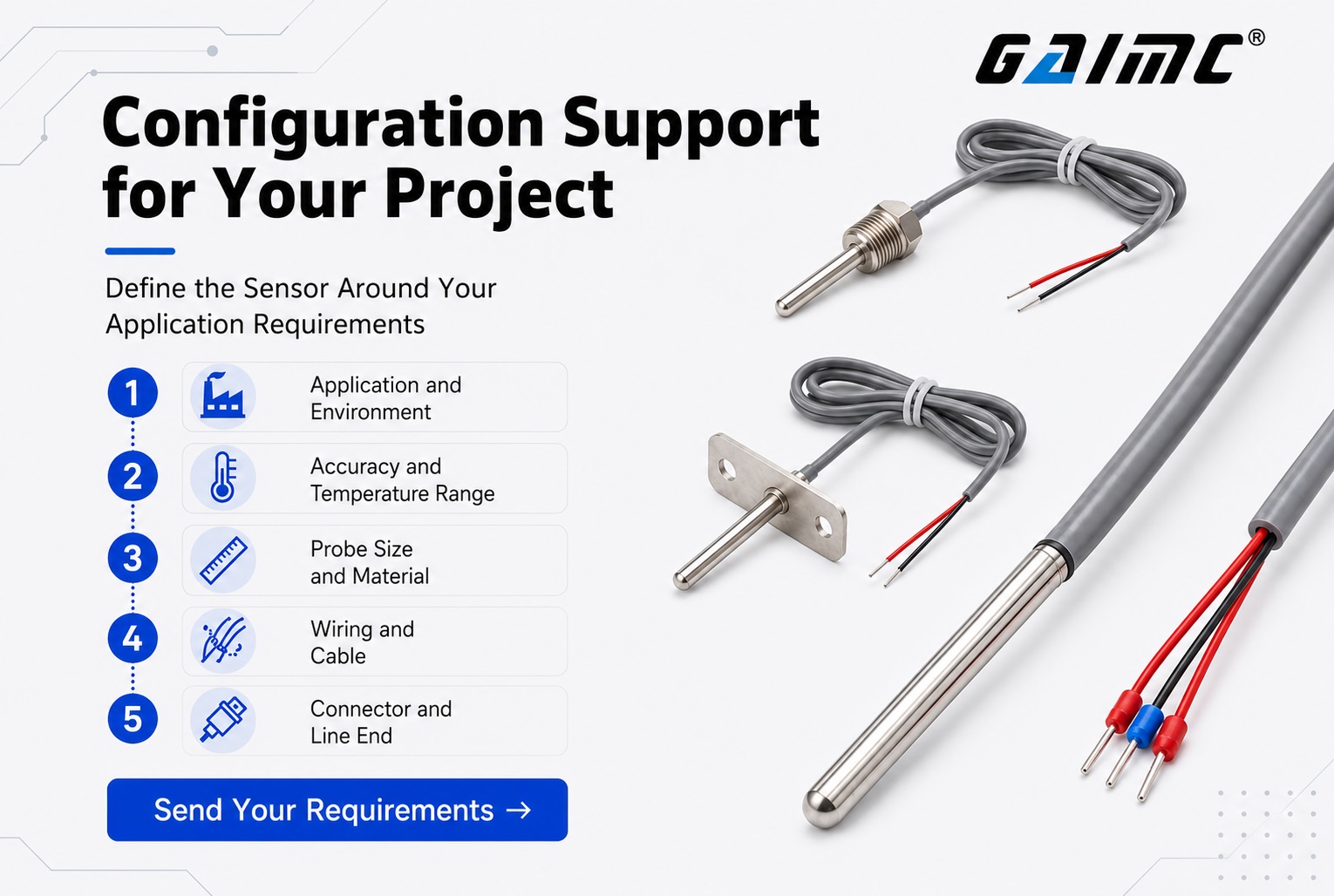

Order Instructions

When placing order, please inform us the following parameters:

Application and working environment (whether to waterproof, acid or alkali and other)
Accuracy requirement (1/3DIN(±0.1℃), Grade A:±0.15℃, Grade B:±0.3℃)
Temperature measurement range (-70~+500℃)
Which wires output (Commonly 2 wires/3 wires/4 wires, Choose one of them)
Shell material (Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC.)
Shell pipe diameter and length (Commonly Size:3*30mm,4*30mm,5*30mm,6*30mm; others can be customized)
Wire material and length (Common PVC, silicone, teflon)
How to deal with end of Line (hung tin, with connector)

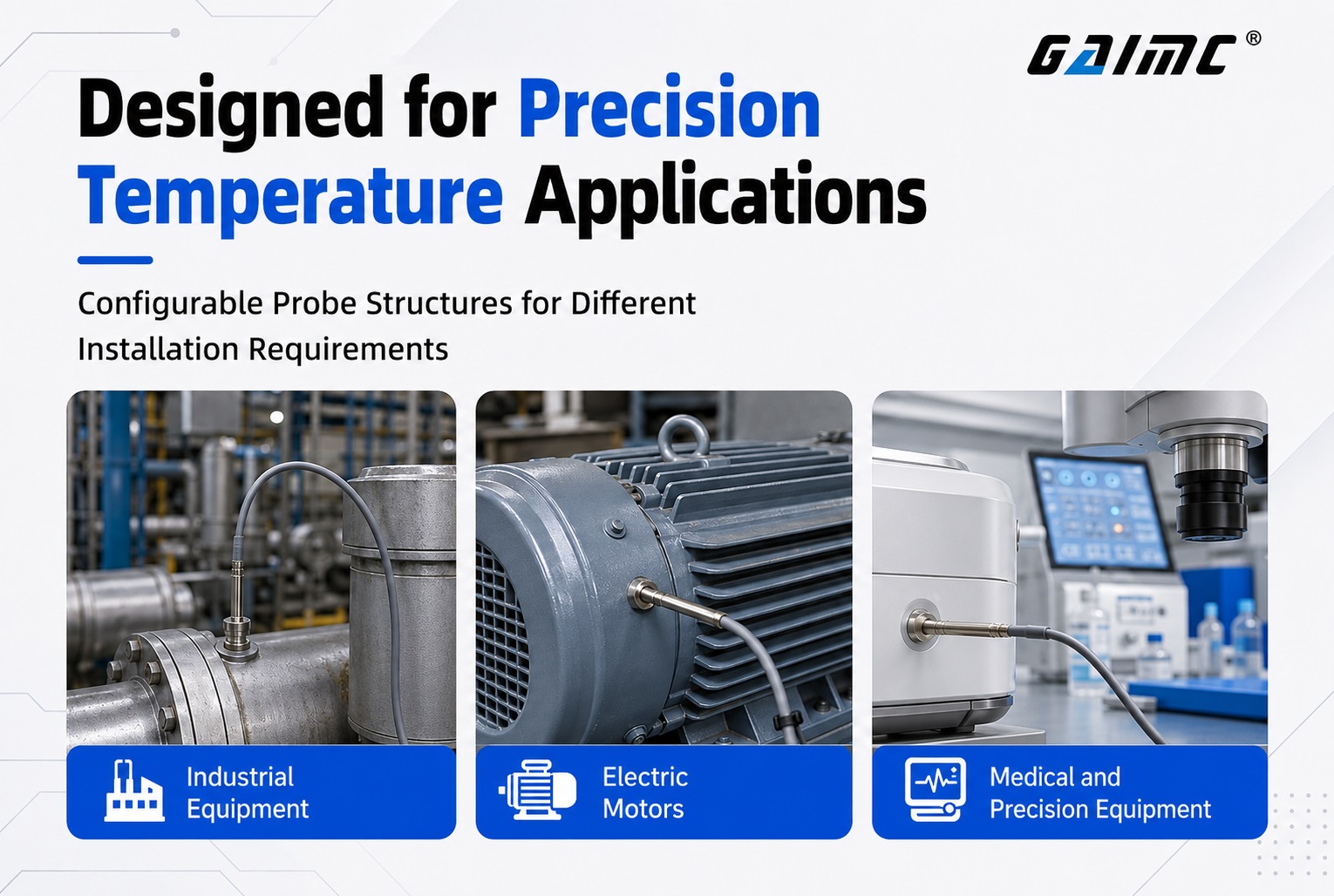

Core Applications

🏥

Medical Equipment

High precision temperature monitoring in medical devices and diagnostic instruments.

⚙️

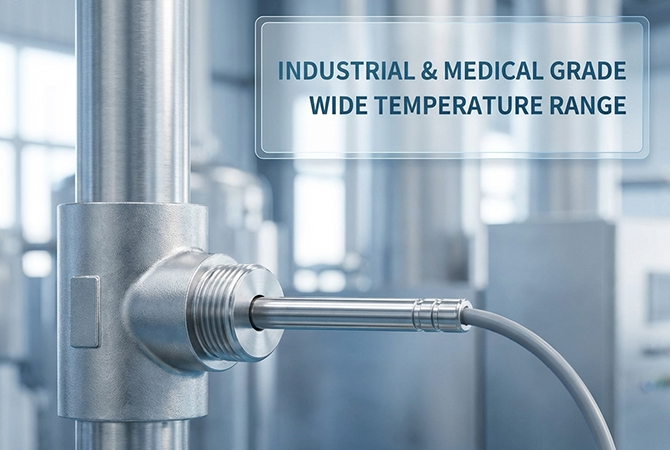

Motor & Industrial

Temperature sensing for motor windings, industrial machinery and process control.

🧮

Temperature Calculation

Used in precision temperature measurement and resistance-to-temperature conversion.

⚡

Resistance Calculation

Reference resistor in circuits and resistance thermometry bridges.

FAQ

What accuracy classes are available for PT100/PT1000?

We offer three accuracy classes: 1/3DIN (±0.1℃), Grade A (±0.15℃), and Grade B (±0.3℃). Each class corresponds to different temperature ranges as specified in the datasheet.

What are the temperature ranges for each accuracy class?

1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~+500℃. Please select according to your application needs.

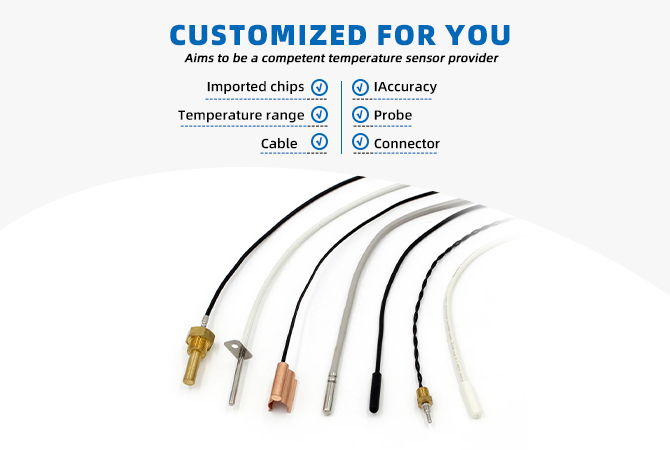

Can I customize the shell material and dimensions?

Yes. Shell materials include stainless steel, copper, copper plated nickel, aluminum, ABS, PVC. Diameter can be φ3~φ9mm and length from 3mm to 1000mm. Common sizes like 3*30mm, 4*30mm etc. are available, and custom sizes are welcomed.

What wire and connector options do you provide?

We support UL series wires (e.g. UL1007), with various temperature ranges and outer diameters. Connectors: Molex, JST, DuPont, CWB, CJT, etc. Also heat-shrinkable sleeves: PVC, glass fiber, teflon.

Precision Temperature Sensing Solutions

PT100/PT1000 platinum RTD with German film chip, accuracy up to 1/3DIN, wide temperature range -70~500°C. Customize shell, wire, connector for your medical, industrial or scientific application.
