GTS200 Digital Temperature Probe | GAIMC

Product Overview

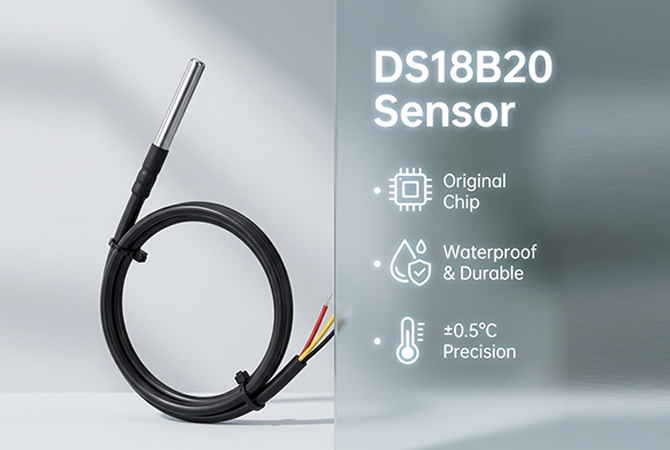

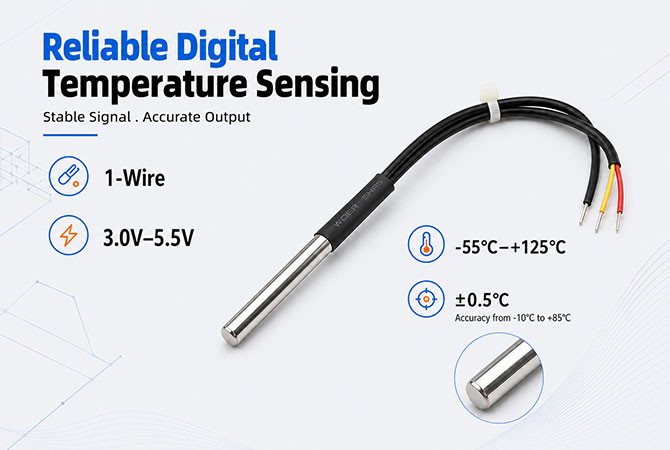

The GTS200 probe adopts the new original imported DS18B20 temperature sensor chip from Dallas Semiconductor. Each pin of the chip is separated by heat-shrinkable tube to prevent short circuit, internal sealing, waterproof and moisture proof. The high quality stainless steel tube package is waterproof, moisture proof and rust proof. The DS18B20 is encapsulated with a highly thermally conductive sealant to ensure high sensitivity and minimal temperature delay. The sensor supports a "one-wire bus" interface (1-Wire) with a temperature range of -55°C to +125°C and an accuracy of ±0.5°C in the range of -10°C to +85°C. The on-site temperature is directly transmitted in digital way via one-line bus, which greatly improves the anti-interference. Suitable for on-site temperature measurement in harsh environments. Each DS18B20 has a unique 64-bit serial number, allowing multiple sensors on the same bus.

Key Features

🌡️

Wide Temperature Range

Operating range -55°C to +125°C, storage -55°C to +125°C, suitable for extreme environments.

🎯

High Accuracy

±0.5°C accuracy in the range -10°C to +85°C, ensures reliable measurement.

🔌

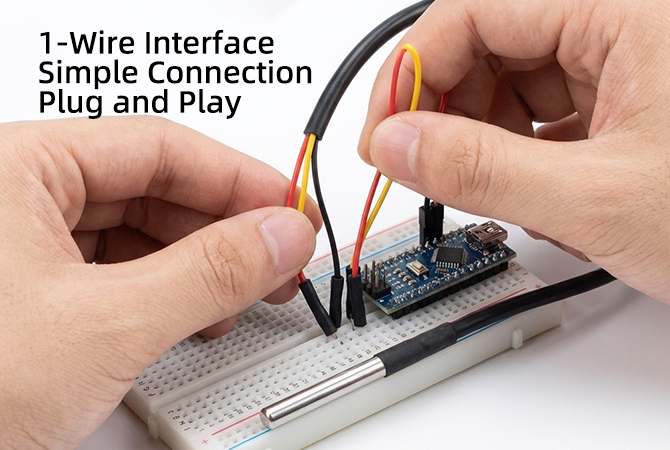

1-Wire Digital Interface

Single bus communication, each sensor has unique 64-bit ROM ID for multi-drop.

💧

Waterproof Stainless Steel

Stainless steel sheath with heat-shrink tube insulation, waterproof and rust-proof.

⚡

Wide Power Supply

Supply voltage 3.0V to 5.5V, compatible with 3.3V and 5V systems.

📏

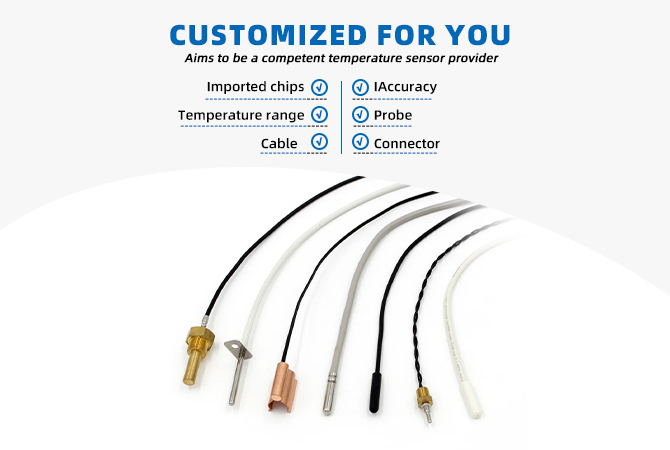

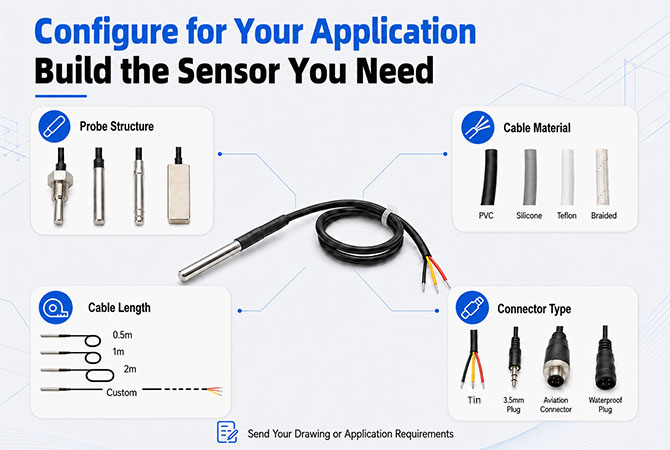

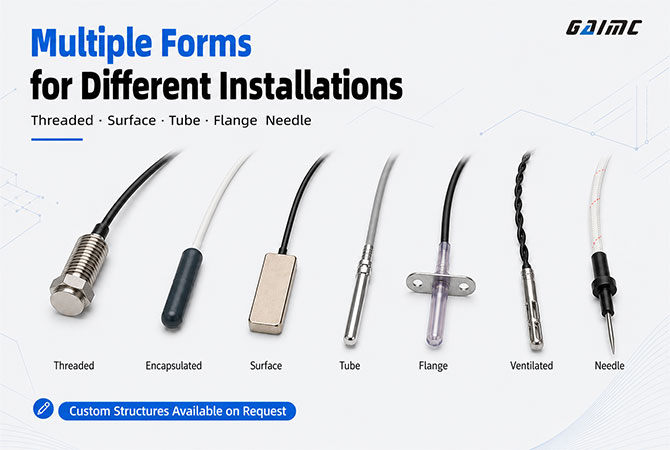

Customizable Sheath

Standard sheath size 6mm*50mm, optional custom sizes available.

Technical Specifications

Item	Details
Model	GTS200 (based on DS18B20)

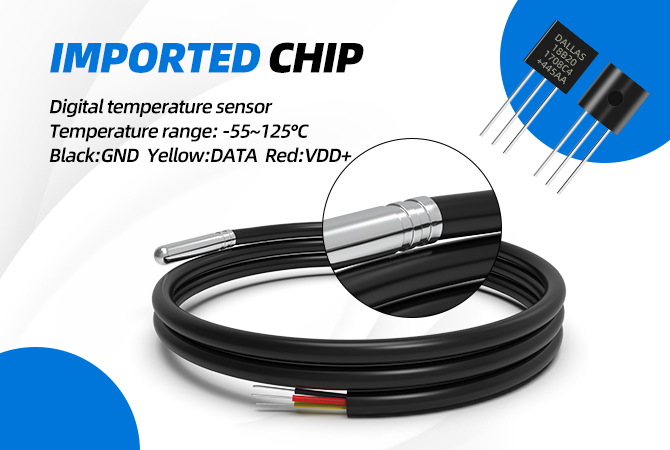

Sensor Chip	Original imported DS18B20 (Dallas Semiconductor)

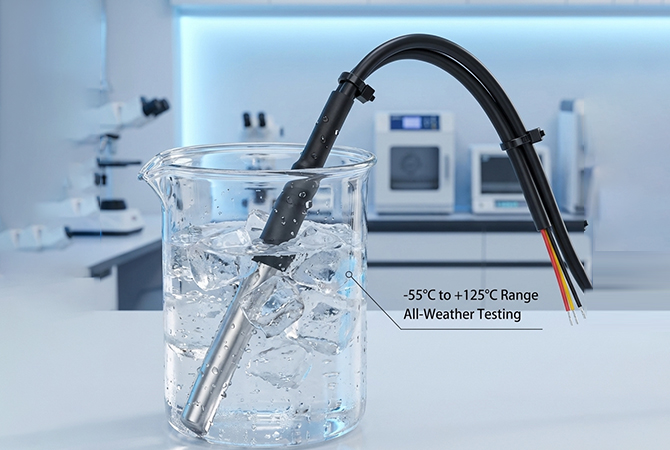

Temperature Range	-55°C to +125°C (operating / storage)
Accuracy	±0.5°C (within -10°C to +85°C)
Power Supply	3.0V ~ 5.5V
Interface	1-Wire bus, unique 64-bit ROM ID
Sheath Material	High-quality stainless steel, waterproof, moisture-proof, rust-proof
Sheath Size	6mm * 50mm (customizable)

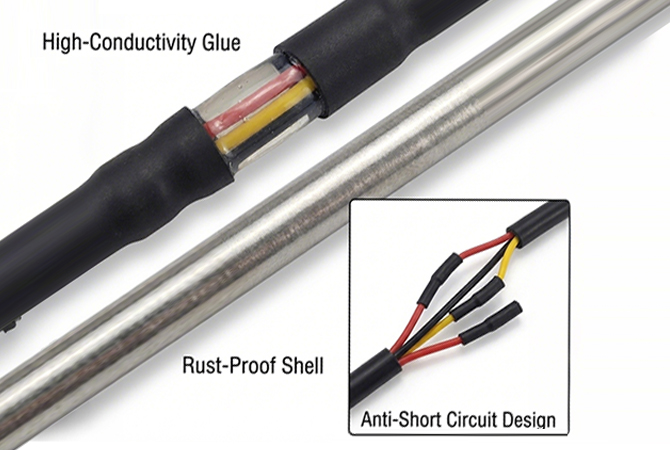

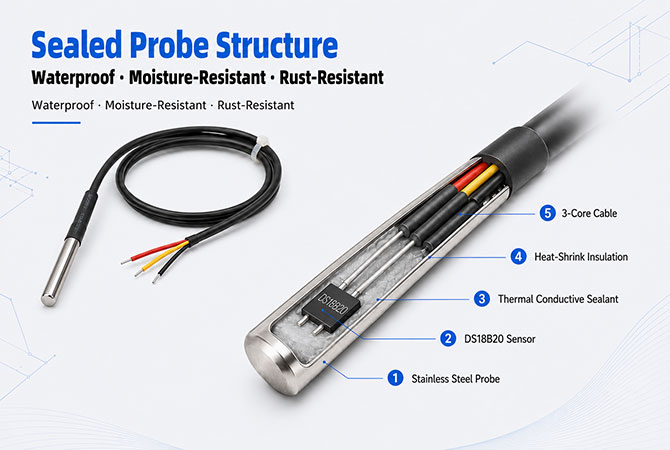

Internal Insulation	Heat-shrinkable tube separating pins, high thermal conductivity sealant
Storage Temperature	-55°C to +125°C
Protection	Waterproof stainless steel encapsulation (IP rating not specified, but waterproof construction)

Core Applications

🧊

Refrigerator Monitoring

Temperature monitoring in refrigerators and cold storage.

💊

Pharmaceutical GMP

GMP monitoring systems in pharmaceutical factories.

🏭

Building Automation

HVAC, telecom rooms, warehouse temperature monitoring.

🌱

Aquaculture & Greenhouse

Water temperature measurement in aquaculture, greenhouse climate control.

FAQ

What is the operating temperature range of GTS200?

The GTS200 operates from -55°C to +125°C and can be stored at the same range.

What is the measurement accuracy?

Within -10°C to +85°C, the accuracy is ±0.5°C. Outside this range, accuracy may vary but the sensor remains functional within -55~125°C.

Does the probe support 1-Wire interface and unique identification?

Yes, it uses the 1-Wire bus. Each DS18B20 chip has a unique 64-bit ROM ID, allowing multiple sensors on the same bus.

Is the probe waterproof? What is the sheath size?

The stainless steel sheath with internal heat-shrinkable tube sealing makes it waterproof and moisture-proof. Standard size: 6mm diameter, 50mm length. Custom sizes are available.

Industrial Digital Temperature Sensing Solution

GTS200 waterproof DS18B20 probe supports wide temperature range, high accuracy, 1-Wire interface, and customizable sheath. Ideal for refrigeration, pharmaceutical, aquaculture, building automation and more.
