Insertion Electromagnetic flow meter

GMF400 Insertion Electromagnetic Flow Meter | GAIMC

Product Overview

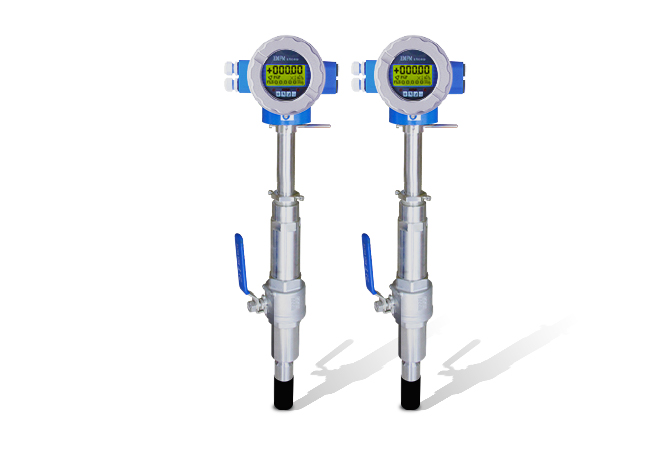

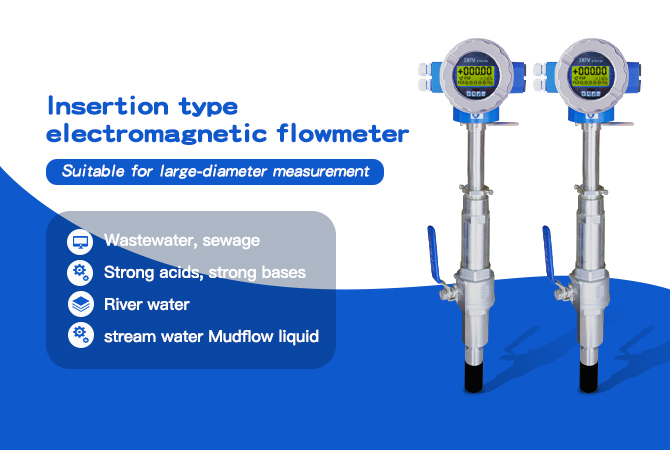

GMF400 Insertion electromagnetic flow meter is composed of insertion electromagnetic sensor and electromagnetic flow converter, used to measure the conductive liquid that electrical conductivity is greater than 5 us/cm³. It is used to measure water, sewage, acid, alkali and other media. Suitable for measuring large pipes with diameter DN300~DN3000mm.

Installation can be divided into online installation type with cut-off valve and water control installation type without stop valves. The simple structure with no moving parts ensures long service life. It doesn't need lining or ground ring, featuring small volume, light weight, and convenient installation.

Insertion electromagnetic flow meter with stop valves can realize installation, disassembly, and easy maintenance when continuous streams are flowing. Flow measurement is only related to insert depth, so it has the feature of wide commonality and strong interchangeability. One model can be applicable to all kinds of pipe flow measurement requirements.

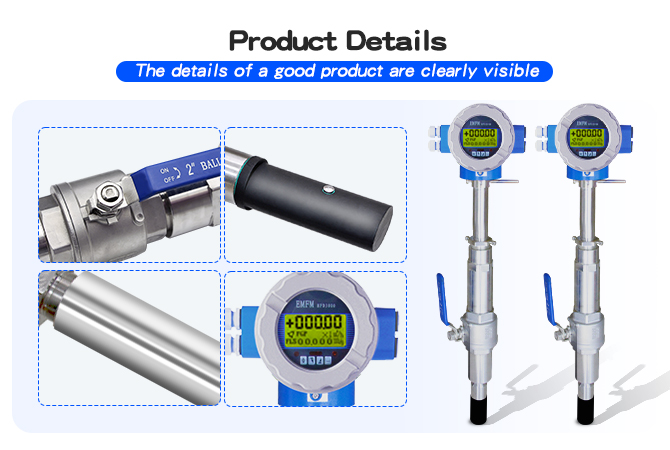

Key Features

🔧

Simple Structure

No moving parts ensures long service life and reliable operation in harsh environments.

📏

Wide Pipe Range

Suitable for large pipes from DN300 to DN3000mm, covering most industrial applications.

⚡

No Lining Needed

Doesn't require lining or ground ring, reducing installation complexity and cost.

🔄

Easy Maintenance

With stop valves for installation/disassembly without interrupting continuous flow streams.

🌐

Wide Applicability

One model applicable to various pipe flow measurements with strong interchangeability.

⚖️

±2.5% Accuracy

Reliable measurement accuracy for water, sewage, acid, alkali and other conductive liquids.

Technical Specifications

Parameter	Details
Medium	Water, sewage water, acid, alkali etc.
Diameter	DN300~DN3000mm
Accuracy	±2.5%
Temperature Range	-20~+150℃
Pressure	1.6 MPa
Flow Rate	0.5~6m/s
Straight Pipe Required	Upstream ≥5DN, downstream ≥3DN
Electrode	316L, Hastelloy C(HC), Titanium(Ti), Tantalum(Ta), Platinum(Pt)
Installation Way	Without a ball valve or with a ball valve
Body Material	Stainless steel
Power Supply	220VAC/24VDC/Lithium battery
Signal Output	Pulse output, 4~20mA
Communication	RS485, Hart, GPRS etc.
Explosion Proof	No
Protection Class	IP65(compact type), IP68(remote type)
Working Environment	Temp. Range: -20~+60℃, humidity: 5%~90%

Flow Rate Table

Size (mm)	Flow Rate (m³/h) at V = 0.5 m/s	Flow Rate (m³/h) at V = 1 m/s	Flow Rate (m³/h) at V = 6 m/s	Flow Rate (m³/h) at V = 10 m/s
300	127	254	1526	2545
350	173	346	2077	3464
400	226	452	2713	4523
450	286	572	3434	5725
500	353	707	4239	7069
600	509	1017	6104	10180
700	692	1385	8308	13847
800	904	1809	10852	18086
900	1145	2289	13734	22891
1000	1413	2826	16956	28260
1200	2035	4069	24417	40694
1400	2769	5539	33234	55390
1600	3617	7235	43407	72346
1800	4578	9156	54937	91562
2000	5652	11304	67824	113040
2200	6839	13678	82067	136778
2400	8139	16278	97667	162778
2600	9552	19104	114623	191038
2800	11078	22156	132935	221558
3000	12717	25434	152604	254340

Type Selection

Category	Code	Description
Structure	F	Remote type (standard with 10m cable)
Structure	Y	Compact type
Electrode	S	316L
	T	Titanium(Ti)
	D	Tantalum(Ta)
	C	Hastelloy C(HC)
	P	Platinum iridium alloy
Power Supply	1	85~250VAC
	2	18~36VDC
	3	Lithium battery (without output signal)
Output Signal	0	No output
Output Signal	1	4~20mA/pulse output
Communication	H	HART Protocol
	R	MODBUS RS485
	G	GPRS
Installation Way	J	Without a ball valve
Installation Way	B	With a ball valve

Core Applications

💧

Water Supply Systems

Large diameter water pipeline flow measurement in municipal water supply networks.

🏭

Sewage Treatment

Wastewater and sewage flow monitoring in treatment plants and industrial facilities.

🧪

Chemical Industry

Acid, alkali and other chemical liquid flow measurement in industrial processes.

⚡

Industrial Cooling

Cooling water system monitoring in power plants and large industrial facilities.

FAQ

What is the measurement accuracy of the GMF400?

The GMF400 has a measurement accuracy of ±2.5%, suitable for large pipe flow measurement applications where high precision is not critical.

What pipe diameters does the GMF400 support?

The GMF400 is designed for large pipes from DN300mm to DN3000mm, making it ideal for municipal water supply, sewage treatment, and industrial applications.

What are the installation options available?

Two installation options: with ball valve (for installation/disassembly without interrupting flow) and without ball valve for standard installation.

What power supply options are available?

The GMF400 offers three power supply options: 220VAC, 24VDC, and lithium battery for flexible installation in different environments.

What media can be measured by GMF400?

The meter can measure any conductive liquid with electrical conductivity greater than 5 us/cm³, including water, sewage, acid, alkali and similar media.

Large Pipe Flow Measurement Solution

Customize the GMF400 insertion electromagnetic flow meter for your large pipe flow measurement needs—contact us for electrode selection, installation type, communication options, and power supply configuration.
