Sanitary Electromagnetic flow meter

GMF200 Sanitary Electromagnetic Flow Meter | GAIMC

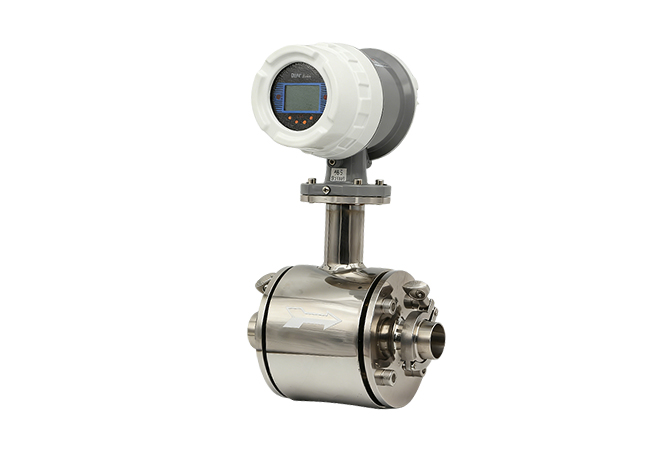

Product Overview

The GMF200 sanitary electromagnetic flow meter is specially designed for measurement of food liquids, like milk, cream, juice of various fruits, and pharmaceutical liquids. It is available with compact or remote version of transmitter and can be installed either horizontally or vertically with a variety of optional end-fittings to meet your requirements.

Measurement results will not be affected by changes of density, viscosity, temperature, pressure and conductive rate. The product has good anti-corrosion and abrasion resistance performance.

With full digital processing, strong anti-interference performance, operating reliability, high accuracy and wide range of flow rate. The LCD display content can be switched between Chinese and English, and other languages (Spanish, Japanese, Korean, French and so on) can be customized.

Key Features

⚖️

±0.5% High Accuracy

Measurement results not affected by density, viscosity, temperature, pressure or conductivity changes.

🍶

Sanitary Design

Specially designed for food & pharmaceutical liquids like milk, juice, cream, and medicine.

🛡️

Anti-Corrosion

Good anti-corrosion and abrasion resistance performance with 316L electrode and PTFE lining.

🌐

Multi-Language

LCD display with Chinese/English switch, customizable for Spanish, Japanese, Korean, French.

🔌

Versatile Power

220VAC/24VDC/lithium battery options with super low voltage EMI switch power supply.

📡

Communication Options

RS485, GPRS, HART protocols; 4-20mA/pulse/frequency output signals available.

Technical Specifications

Parameter	Details
Medium	Food, pharmaceutical industries such as milk, fruit juice, medicine.
Diameter	DN10 ~ DN100mm
Accuracy	±0.5%
Medium Temperature	<180℃
Nominal Pressure	1.6 MPa
Flow Rate	0.3 ~ 10m/s
Straight Pipe Required	Upstream ≥5DN, downstream ≥3DN
Electrode	316L (Standard)
Lining Material	PTFE(F4), Teflon FEP(F46), PFA
Installation Way	Clamp on
Body Material	SUS304(standard), SUS316(optional)
Power Supply	220VAC/24VDC/lithium battery
Signal Output	Pulse and 4 ~ 20mA
Communication	RS485, GPRS, Hart
Explosion-proof	No
Protection Proof	IP65(compact type), IP67, IP68(suitable for remote type)
Work Environment	Ambient temperature: -20 ~ +60℃, Ambient humidity: 5%~90%

Flow Rate Table

Size(D)	Flow Rate (Q) unit (m³/h)
10 mm (3/8")	Min: 0.0848 \| Calibrated: 1.7 \| Max: 2.826
15 mm (1/2")	Min: 0.1909 \| Calibrated: 4 \| Max: 6.362
20 mm (3/4")	Min: 0.3393 \| Calibrated: 7 \| Max: 11.31
25 mm (1")	Min: 0.5302 \| Calibrated: 11 \| Max: 17.67
32 mm (1-1/4")	Min: 0.8686 \| Calibrated: 17 \| Max: 28.95
40 mm (1-1/2")	Min: 1.358 \| Calibrated: 27 \| Max: 45.24
50 mm (2")	Min: 2.121 \| Calibrated: 42 \| Max: 70.69
65 mm (2-1/2")	Min: 3.584 \| Calibrated: 72 \| Max: 119.5
80 mm (3")	Min: 5.429 \| Calibrated: 109 \| Max: 181.0
100 mm (4")	Min: 8.483 \| Calibrated: 170 \| Max: 282.7

Type Selection

Category	Code	Description
Structure	F	Remote type (standard with 10m cable)
Structure	Y	Compact type
Electrode	S	316L
	T	Titanium(Ti)
	D	Tantalum(Ta)
	C	Hastalloy C(HC)
	P	Platinum iridium alloy
Lining Material	F	PTFE
Lining Material	A	PFA
Body Material	S4	SUS304
Body Material	S6	SUS316
Protection Class	L0	IP65(compact type)
	L1	IP67(remote type)
	L2	IP68(remote type)
Power Supply	1	85~265VAC 45~63Hz
	2	20~36VDC
	3	Lithium battery
Signal Output	N	No output
	A	4-20mA
	M	Pulse output
	P	Frequency output
	H	HART protocol
	R2	RS485
	G	GPRS
Grounding	0	Without grounding ring
	1	With grounding ring
	2	With grounding electrode

Core Applications

🥛

Dairy Industry

Precise measurement of milk, cream, and dairy products flow in food processing plants.

🍹

Beverage Production

Juice, soft drinks, and liquid food measurement with sanitary design requirements.

💊

Pharmaceutical

Medicine, liquid drug, and pharmaceutical ingredient flow monitoring in clean environments.

🍯

Food Processing

Honey, syrup, edible oils, and other food-grade liquid measurement applications.

FAQ

What is the measurement accuracy of the GMF200?

The GMF200 has a measurement accuracy of ±0.5%, ensuring reliable data collection for food and pharmaceutical liquid measurements.

What pipe diameters does the GMF200 support?

The GMF200 supports DN10mm to DN100mm pipe diameters, suitable for various food and pharmaceutical processing pipelines.

What languages does the display support?

The LCD display supports Chinese and English by default. Other languages (Spanish, Japanese, Korean, French) can be customized according to user needs.

What power supply options are available?

The GMF200 offers three power supply options: 220VAC, 24VDC, and lithium battery for flexible installation in different environments.

What communication protocols are supported?

The meter supports RS485, GPRS, and HART communication protocols, with 4-20mA, pulse, and frequency output signals available.
