Electromagnetic Flow Meters in Wastewater Treatment
In this comprehensive guide, you'll discover how electromagnetic flow meters solve critical measurement challenges in wastewater treatment applications. You'll learn about their working principles, key advantages for handling industrial wastewater with suspended solids, best practices for installation and maintenance, and how to select the right flow meter for your specific application. This knowledge will help you improve measurement accuracy, reduce maintenance costs, and enhance your wastewater treatment process efficiency.
Why Electromagnetic Flow Meters Excel in Wastewater Applications

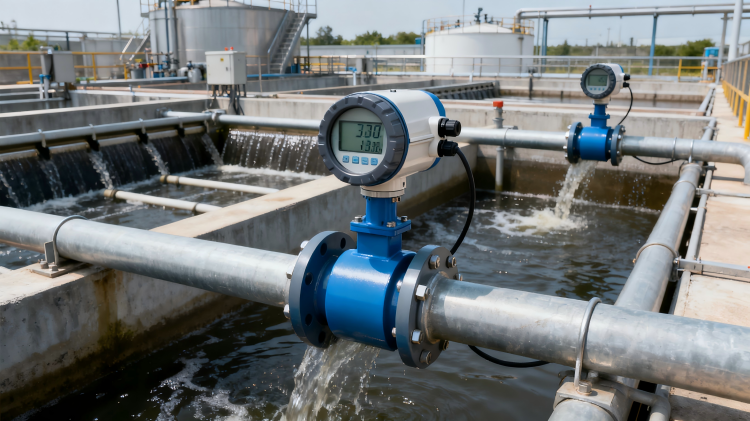

Electromagnetic flow meters, commonly known as mag meters, have become the preferred solution for measuring wastewater flow in industrial and municipal treatment facilities. Their unique operating principle makes them exceptionally well-suited for challenging fluids containing suspended solids, abrasive particles, and various contaminants that would damage or clog other flow measurement technologies.
Unlike mechanical flow meters that have moving parts susceptible to wear and clogging, electromagnetic flow meters measure flow without physical contact with the fluid. This non-intrusive design ensures long-term reliability and minimal maintenance even when handling aggressive industrial wastewater streams.
Working Principle of Electromagnetic Flow Meters
Electromagnetic flow meters operate on Faraday's Law of electromagnetic induction. When a conductive fluid flows through a magnetic field generated by the flow meter, it induces a voltage that is proportional to the flow velocity. This voltage is detected by electrodes and converted into a flow rate measurement.
Key Components:
-
Flow Tube: Provides the passage for fluid and houses the field coils
-
Field Coils: Generate the magnetic field perpendicular to flow direction
-
Electrodes: Detect the voltage induced by the flowing fluid
-
Liner: Protects internal components from corrosive or abrasive fluids
Advantages for Industrial Wastewater Measurement
Superior Handling of Suspended Solids and Slurries
Electromagnetic flow meters maintain accurate measurement regardless of the presence of suspended solids, fibers, or other particulate matter in the wastewater. This makes them ideal for applications such as:
-
Primary effluent measurement
-
Mixed liquor recirculation
-
Sludge transfer lines
-
Industrial process wastewater
-
Mining and mineral processing wastewater
No Pressure Drop or Flow Obstruction
With no moving parts and a full-bore design, electromagnetic flow meters don't create pressure drops or flow restrictions that could lead to sedimentation or clogging in wastewater applications. This is particularly valuable in wastewater systems where solids accumulation can be a significant operational challenge.
Wide Turndown Ratio and Measurement Range
Modern electromagnetic flow meters offer turndown ratios up to 1000:1, allowing accurate measurement across the wide flow variations common in wastewater treatment processes, from low-flow conditions to peak stormwater events.
Best Practices for Installation and Maintenance

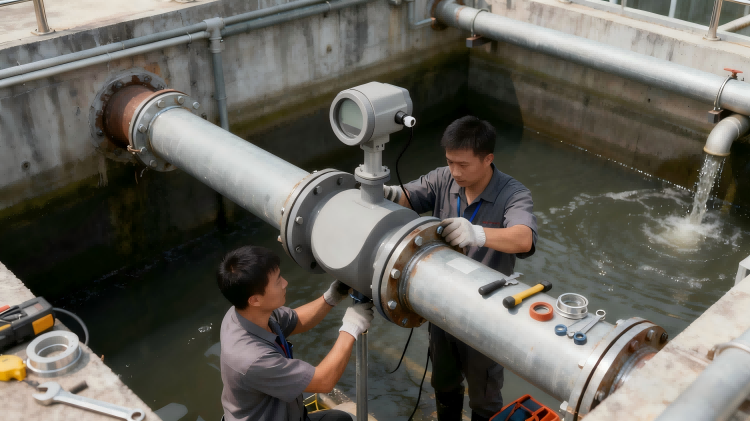

Proper Installation Guidelines
To ensure optimal performance of your electromagnetic flow meter in wastewater applications:
-
Maintain sufficient upstream and downstream straight pipe runs (typically 5-10 pipe diameters)
-
Ensure the pipe is always full during operation
-
Install in locations avoiding air entrapment or sediment accumulation
-
Follow manufacturer's grounding requirements for accurate measurement
Maintenance Considerations
While electromagnetic flow meters require minimal maintenance, periodic checks should include:
-
Verification of electrode condition and cleaning if necessary
-
Inspection of liner for wear or damage
-
Calibration verification according to your maintenance schedule
-
Checking electrical connections and grounding
GAIMC Electromagnetic Flow Meter Solutions for Wastewater Treatment
Specifically engineered for challenging wastewater applications, the EMF-8000 series features:
-
Advanced electrode designs resistant to coating and fouling
-
Robust liners for abrasive and corrosive fluids
-
IP68 rated enclosures for harsh environments
-
Advanced diagnostics for predictive maintenance
-
Communication options including HART, Profibus, and Modbus
Explore our complete range of wastewater treatment solutions for comprehensive flow management.
For complete process control, pair your flow meter with our multi-parameter water quality monitoring system that measures pH, conductivity, turbidity, and temperature alongside flow rate.
Frequently Asked Questions
What is the minimum conductivity required for electromagnetic flow meters to work accurately in wastewater?
Most electromagnetic flow meters require a minimum conductivity of 5 μS/cm for accurate measurement. However, specialized models like the
GAIMC electromagnetic flow meters can measure fluids with conductivity as low as 1 μS/cm, making them suitable for various industrial wastewater streams.
How do electromagnetic flow meters handle abrasive particles in industrial wastewater?
GAIMC electromagnetic flow meters feature wear-resistant liners made of materials like ceramic, polyurethane, or hard rubber that withstand abrasive particles. The non-intrusive measurement principle means there are no moving parts to wear out, ensuring long service life even in demanding applications.
Can electromagnetic flow meters measure bidirectional flow in wastewater treatment processes?
Yes, most modern electromagnetic flow meters, including GAIMC models, can measure flow in both directions. This is particularly useful in applications like recirculation systems, backwashing processes, and equalization tanks where flow direction may change.
What maintenance is required for electrodes in wastewater applications?
In wastewater applications, electrodes may require periodic cleaning to remove buildup. GAIMC offers several solutions including mechanical cleaning devices, ultrasonic cleaning options, and electrodes with anti-fouling coatings to minimize maintenance requirements.
