Flow Measurement Technology Overview
Selecting the right flow meter technology is critical for accurate measurement, process efficiency, and cost-effectiveness in industrial applications. This detailed comparison examines two leading technologies: ultrasonic flow meters and magnetic flow meters (magmeters).
Understanding the fundamental differences, advantages, and limitations of each technology will help engineers and plant managers make informed decisions based on specific application requirements.
Ultrasonic Flow Meters
Ultrasonic flow meters measure fluid velocity by transmitting ultrasonic waves through the medium. The two primary technologies are transit-time (time-of-flight) and Doppler ultrasonic flow meters.
How Ultrasonic Flow Meters Work
Transit-time ultrasonic meters measure the time difference between ultrasonic pulses traveling with and against the fluid flow. Doppler meters use the frequency shift of ultrasonic waves reflected by discontinuities in the fluid (bubbles, particles).
Advantages
-
Non-intrusive installation (clamp-on models)
-
No pressure drop
-
Bidirectional flow measurement
-
Suitable for large pipe diameters
-
Works with conductive and non-conductive fluids
-
Minimal maintenance requirements

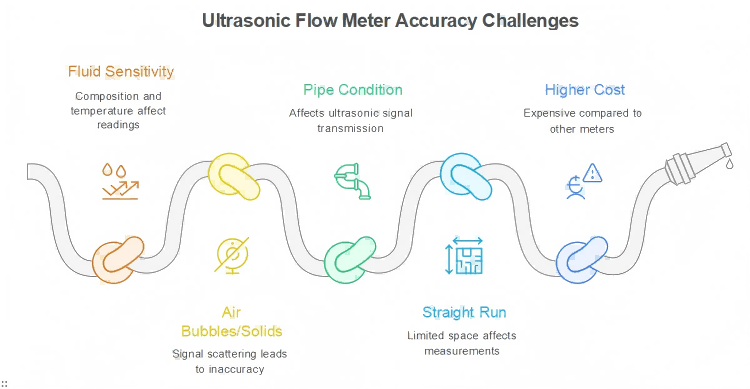

Limitations
-
Sensitive to fluid composition changes
-
Performance affected by air bubbles or solids
-
Requires straight pipe runs
-
Higher initial cost for clamp-on models
-
Pipe condition affects accuracy
GAIMC GUF Series Ultrasonic Flow Meter
The GAIMC GUF Series represents the cutting edge in ultrasonic flow measurement technology. Engineered for reliability and precision, these meters deliver exceptional performance across diverse industrial applications.
-
Advanced Signal Processing: Enhanced algorithms for accurate measurements in challenging conditions
-
Robust Construction: IP68 rating for harsh environments
-
Wide Application Range: Suitable for water, chemicals, oils, and gases
-
User-Friendly Interface: Intuitive configuration and comprehensive diagnostics
Magnetic Flow Meters
Magnetic flow meters (magmeters) operate on Faraday's Law of electromagnetic induction, measuring the voltage induced when a conductive fluid flows through a magnetic field.
How Magnetic Flow Meters Work
Magmeters generate a magnetic field perpendicular to the flow direction. As conductive fluid moves through this field, it induces a voltage proportional to flow velocity, which is measured by electrodes.

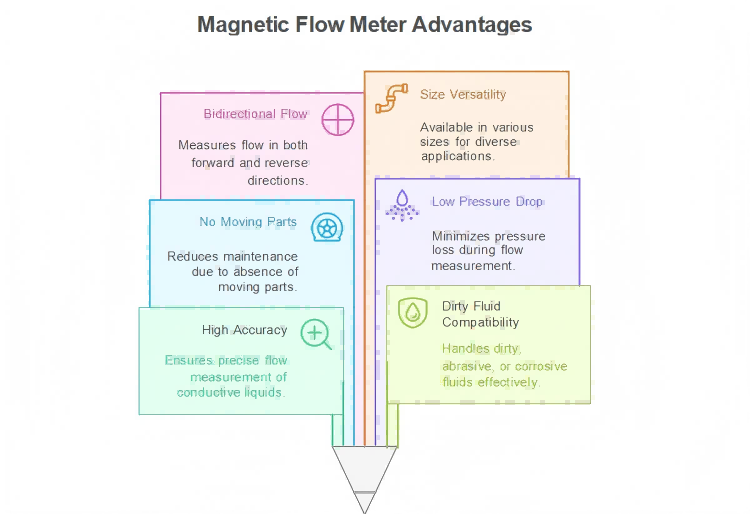

Advantages
-
High accuracy with conductive fluids
-
Unaffected by temperature, pressure, viscosity changes
-
No moving parts - minimal maintenance
-
Excellent for dirty, abrasive, or corrosive fluids
-
Bidirectional flow measurement
-
Wide range of sizes available

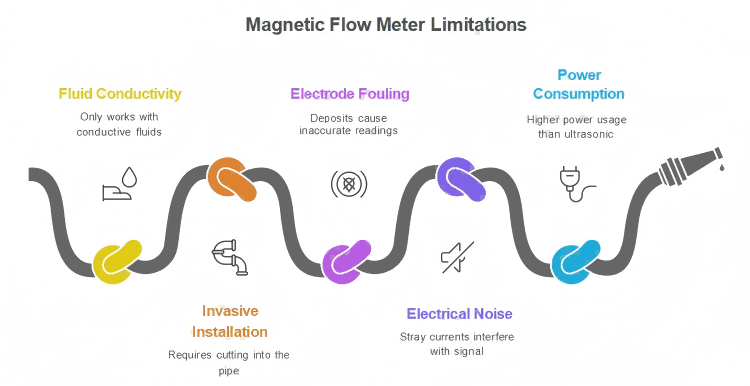

Limitations
-
Requires conductive fluid (minimum 5 μS/cm)
-
Invasive installation requiring pipe cutting
-
Electrode fouling potential
-
Sensitive to electrical noise
-
Higher power consumption
-
Liner compatibility considerations
GAIMC GMF Series Magnetic Flow Meter
The GAIMC GMF Series combines precision engineering with robust design to deliver exceptional performance in demanding flow measurement applications.
-
Superior Accuracy: Advanced electrode technology for precise measurements
-
Enhanced Durability: Multiple liner options for chemical compatibility
-
Noise Immunity: Advanced signal processing for stable readings in electrically noisy environments
-
Flexible Configuration: Wide range of sizes and output options
Conclusion
Both ultrasonic and magnetic flow meters offer distinct advantages for different industrial applications. Ultrasonic meters excel in non-invasive measurements and handling non-conductive fluids, while magnetic meters provide superior accuracy with conductive liquids.
For applications requiring non-intrusive installation and versatility with various fluid types, the GAIMC GUF Series Ultrasonic Flow Meter delivers exceptional performance. For high-accuracy measurement of conductive fluids in demanding environments, the GAIMC GMF Series Magnetic Flow Meter is the optimal choice.
Consult with our technical experts to determine the best solution for your specific flow measurement requirements.
