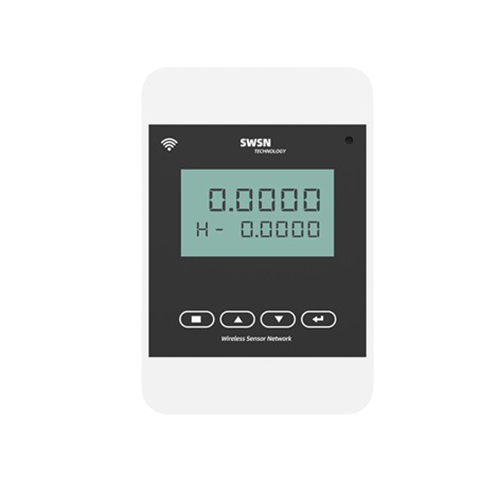

SWSN Wireless temperature and humidity transmitter

GTHT290 wireless temperature and humidity transmitter is a high-precision, low-power wireless temperature and humidity detection instrument. Using high-precision imported chips and large-capacity lithium battery power supply, the longest data transmission distance can reach 1000m. With the wireless gateway, it can receive data from up to 128 wireless temperature and humidity transmitters on site, and transmit the data to the back-end collection equipment through the RS485 or Ethernet interface. It is widely used in temperature and humidity measurement and monitoring in heating, cold storage, agricultural greenhouses, breeding farms, laboratories and other scenarios.

Product Highlight
Ultra-low Power Consumption
SWSN GFSK mode data transmission mode has been developed on the basis of traditional LORA transmission, so that the power consumption of the product can be less than 1% of the conventional, the collection rate of 5 seconds once, and the product life can reach 10 years.
Super convenient networking method
Through SWSN or Lora protocol, one G2 wireless gateway can receive data from up to 128 wireless temperature and humidity transmitters. The gateway can transmit data to the back-end server through RS485 or Ethernet to achieve remote monitoring and control.
Long Transmission Distance
For long-distance wireless communication, we have developed wireless modules with more transmission advantages. The communication distance of products can reach up to 10km, which has obvious advantages in long-distance wireless monitoring.
Product Transmission

Wireless gateway is used to receive SWSN series field wireless measuring instrument data, and transferred to the third party data acquisition equipment by RS485 interface, each wireless data gateway can support more than 96 multi-function wireless measuring instrument data reception and management.

Application
Customer Case

Telecom building temperature and humidity monitoring

Background

The computer room equipment in the telecommunications building needs to monitor temperature and humidity, because too high or too low temperature and humidity may affect the normal operation of the equipment and even cause equipment damage. Real-time monitoring of temperature and humidity can detect abnormal situations in time and take corresponding measures to ensure the normal operation of the equipment.

Pain Point

1. Wireless transmission, no wiring required

2. Long transmission distance, up to 5000m (open environment)

3. Low power consumption, powered by large-capacity lithium battery, battery life up to 5 years

4. Easy networking, the gateway can mount up to 128 transmitters

5. Convenient communication, gateway optional RS485/Ethernet output

6. Convenient power supply, the gateway can be customized for POE power supply

7. Easy to install, magnetic or wall-mounted

Solutions

The entire temperature and humidity monitoring system consists of an outdoor temperature and humidity transmitter, an indoor temperature and humidity transmitter, a wireless receiver and a monitoring system. By measuring the temperature and humidity of the outdoor and indoor environments, not only can the operating mode of the air conditioning system in the building computer room be adjusted in time to ensure the normal operation of the equipment, but also equipment damage can be prevented and the service life of the equipment can be extended. At the same time, the energy utilization efficiency is improved, energy consumption is reduced, and the purpose of energy conservation and environmental protection is achieved.

Recommended Products

GTT230

SWSN/Lora Wireless temperature transmitter

View More

GTT280

4G wireless temperature transmitter

View More

GTHT270

SWSN/Lora Wireless temperature and humidity transmitter

View More

GTHT290

SWSN Wireless temperature and humidity transmitter

View More
