GAIMC-GLM101 Mass Flow Meter for Diesel Fuel Measurement

TIME: 2025.11.25 NUMBER OF VIEWS 8

Are you facing challenges with accurate diesel fuel measurement in your oil and gas operations? In this South African case study, discover how advanced Coriolis mass flow meters are transforming diesel monitoring with precision measurement, real-time data, and automated control. Learn how the right flow metering solution can enhance accuracy, reduce operational costs, and improve efficiency in your fuel management systems.

Industry Background: Oil & Gas Fuel Management in South Africa

The South African oil and gas industry requires precise fuel management solutions to optimize operations and control costs. Diesel fuel measurement presents unique challenges due to varying flow rates, temperature fluctuations, and the need for reliable data for both operational efficiency and regulatory compliance. Accurate flow measurement is crucial for inventory management, cost allocation, and process optimization in this demanding sector.

Market Dynamics and Requirements

The African energy sector has seen significant growth in recent years, with South Africa playing a pivotal role in regional oil and gas distribution. This growth has intensified the need for reliable fuel measurement systems that can withstand harsh operating conditions while maintaining precision. Regulatory requirements for fuel accounting and environmental compliance further drive the demand for advanced flow measurement technologies.

Critical Challenges in Diesel Flow Measurement

Measurement Accuracy Issues

Traditional flow meters struggle with maintaining accuracy across varying diesel flow rates and conditions, leading to inventory discrepancies and financial losses. Temperature and density variations further complicate accurate measurement.

Limited Real-time Monitoring

Delayed or infrequent flow data prevents timely response to operational issues, potentially leading to process disruptions and safety concerns. Lack of instant visibility into fuel consumption patterns hinders optimization efforts.

High Operational Costs

Inaccurate fuel measurement results in significant financial losses through unaccounted diesel usage and inefficient fuel management practices. Manual data collection adds substantial labor expenses.

Manual Intervention Requirements

Frequent manual checks and calibrations increase labor costs and introduce human error into critical fuel measurement processes. Staff time is consumed by routine monitoring tasks instead of value-added activities.

Environmental Compliance Challenges

Meeting strict environmental regulations requires precise fuel tracking and reporting. Inaccurate measurements can lead to compliance issues and potential regulatory penalties.

System Integration Complexity

Integrating flow measurement data with existing enterprise systems poses technical challenges, limiting the utility of collected data for comprehensive business intelligence.

The GAIMC Solution: Precision Mass Flow Metering for Diesel Applications

Product Introduction: GAIMC-GLM101 Mass Flow Meter

Our South African client selected the GAIMC-GLM101 Coriolis mass flow meter specifically engineered for diesel fuel applications in the oil and gas industry. This advanced flow measurement solution provides direct mass flow reading, eliminating the need for temperature and pressure compensation while delivering unmatched accuracy and reliability.

Technical Specifications

Product Model: GAIMC-GLM101

Flow Meter Type: Coriolis Mass Flow Meter

Media: Diesel Fuel

Temperature Range: 5°C to 45°C

Pipe Diameter: 4 Inches

Flow Range: 100 LPM to 2000 LPM

Pipe Material: Carbon Steel

Working Pressure: 0.1 bar to 10.0 bar

Power Supply: 24 VDC

Output Signal: RS485 + 4-20mA

Connection Type: ASME B16.5 WN-RF Class 150

Wall Thickness: 5.9mm (Schedule 40)

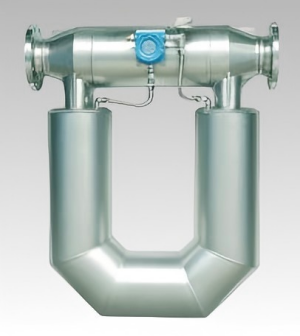

GAIMC-GLM101 Mass Flow Meter for Diesel Fuel Measurement

Advanced Technical Features

Coriolis Measurement Principle

Direct mass flow measurement unaffected by changes in fluid density, viscosity, or flow profile, ensuring consistent accuracy across all operating conditions.

Robust Construction

Carbon steel construction with ASME B16.5 flanges designed to withstand harsh oil and gas environments while maintaining measurement integrity.

Dual Communication Protocol

Simultaneous RS485 and 4-20mA outputs provide flexibility for integration with both modern digital systems and traditional analog controls.

Wide Flow Range Capability

20:1 turndown ratio allows accurate measurement from 100 LPM to 2000 LPM, accommodating varying operational requirements without multiple meters.

Implementation Strategy and Installation Process

1. Site Assessment and Planning

Comprehensive evaluation of installation site, including pipe configuration, accessibility, and environmental conditions to ensure optimal meter placement and performance.

2. System Integration Design

Custom integration planning with existing control systems, including signal routing, power supply configuration, and data communication setup for seamless operation.

3. Professional Installation

Certified technicians perform precise installation with proper alignment, support, and connection to ensure long-term reliability and accuracy.

4. Calibration and Commissioning

Factory calibration verification and on-site commissioning to ensure measurement accuracy meets specified tolerances and operational requirements.

5. Staff Training and Documentation

Comprehensive operator training and technical documentation provided to ensure proper operation, maintenance, and troubleshooting capabilities.

6. Performance Monitoring

Continuous performance tracking and periodic verification to maintain optimal operation and identify potential issues before they affect measurement accuracy.

Transforming Diesel Fuel Management: Measurable Outcomes

High Precision Measurement

Achieved ±0.1% accuracy in diesel flow measurement, providing reliable data for inventory control, cost allocation, and process optimization across the entire flow range.

Real-time Monitoring Capabilities

Enabled continuous flow monitoring with instant data availability, allowing immediate response to flow anomalies and process deviations before they impact operations.

Significant Cost Reduction

Reduced unaccounted diesel losses by 98% through precise measurement, while optimizing fuel usage patterns to achieve 15% reduction in overall fuel consumption.

Enhanced Automation

Automated fuel tracking and reporting reduced manual intervention by 80%, minimizing human error and freeing staff for more critical operational tasks.

Improved Regulatory Compliance

Accurate data logging and reporting capabilities ensured full compliance with environmental regulations and simplified audit processes.

Extended Equipment Lifespan

Reduced maintenance requirements and improved system reliability extended equipment service life while minimizing downtime and repair costs.

Industry Applications and Use Cases

Fuel Distribution Terminals

Precise measurement of diesel transfers between storage tanks, loading racks, and transport vehicles ensures accurate inventory management and billing.

Power Generation Facilities

Monitoring diesel consumption for backup generators and prime power systems optimizes fuel usage and ensures reliable operation during critical periods.

Mining Operations

Accurate fuel measurement for heavy equipment and vehicle fleets in remote mining sites enables cost control and operational efficiency.

Marine Bunkering

Reliable diesel flow measurement during ship refueling operations ensures accurate quantity delivery and prevents disputes.

Industrial Manufacturing

Monitoring diesel usage for process heating, steam generation, and equipment power in manufacturing facilities supports energy management initiatives.

Transportation Fleets

Bulk fuel management for trucking companies and public transportation systems provides accurate consumption data for route optimization and cost analysis.

Frequently Asked Questions

Why choose Coriolis mass flow meters for diesel measurement? +

Coriolis mass flow meters provide direct mass measurement unaffected by changes in fluid properties, making them ideal for diesel applications where temperature and composition variations can affect volumetric flow accuracy. They offer superior precision, require no additional temperature or pressure compensation, and provide density measurement as a bonus parameter.

What are the advantages of dual RS485 and 4-20mA output signals? +

The 4-20mA analog signal provides robust, industry-standard communication for basic flow monitoring and control, while RS485 digital communication enables advanced features like configuration changes, diagnostics access, and multiple parameter reading (mass flow, density, temperature) through Modbus RTU protocol.

How does the flow meter handle varying diesel temperatures? +

Since Coriolis meters measure mass flow directly, temperature variations do not affect measurement accuracy. The meter compensates for thermal effects on the measuring tube, maintaining specified accuracy throughout the entire operating temperature range of 5°C to 45°C without requiring external temperature compensation.

What maintenance is required for long-term reliable operation? +

The GAIMC-GLM101 requires minimal maintenance due to its no-moving-parts design. Recommended maintenance includes periodic zero calibration (typically annually), visual inspection for physical damage, and verification of electrical connections. The meter's robust construction ensures reliable operation in demanding oil and gas environments.

Can this flow meter be integrated with existing SCADA systems? +

Yes, the dual output signals make integration straightforward. The 4-20mA output connects directly to most PLC and DCS systems, while the RS485 Modbus RTU interface provides comprehensive data access for SCADA systems, enabling advanced monitoring, data logging, and remote configuration capabilities.

What is the typical installation timeline for this system? +

Standard installation typically requires 2-3 days, including site preparation, physical installation, electrical connections, and commissioning. Complex integrations or sites with accessibility challenges may require additional time. Our project team provides detailed timeline estimates during the planning phase.
