HYDROPONICS · PRECISION NUTRIENT MANAGEMENT
GWQ-MP200 Multi-Parameter Analyzer
Optimizing Nutrient Solution for Greenhouse Hydroponics
Real-time monitoring of pH, EC, dissolved oxygen, residual chlorine, and temperature | Protect root health, maximize yield, and reduce water & fertilizer waste
Request Quote
The Rise of Controlled Environment Agriculture
Greenhouse hydroponics is transforming food production — from a 20000m² smart greenhouse in Thailand achieving 25 tons/mu yield with 22-day growth cycles, to high-tech facilities supplying premium produce to global markets . Unlike soil-based farming, hydroponic systems deliver nutrients directly to plant roots via water. This makes water quality the single most critical success factor — pH, EC, dissolved oxygen, and temperature must be precisely controlled to avoid nutrient antagonism, root rot, and yield loss .
Why GWQ-MP200 for Hydroponics?
-
Monitor up to 6 key nutrient parameters simultaneously
-
Ensure EC/pH stability for optimal nutrient uptake
-
2x RS485 + Modbus-RTU → integrate with fertigation controllers
-
Proven results: 12% yield increase, 64% EC fluctuation reduction
Top 4 Nutrient Solution Management Pain Points
Challenges that impact crop health, yield, and operational efficiency
EC/pH Instability
Nutrient solution pH and EC fluctuate with crop uptake and water evaporation, causing nutrient lockout and physiological disorders.
Low Dissolved Oxygen
Warm nutrient solutions hold less oxygen. DO below 6 mg/L can trigger root rot, especially in deep water culture (DWC) systems.
Biofilm & Pathogen Risk
Nutrient lines and emitters are prone to biofilm growth. Without residual chlorine monitoring, pathogen outbreaks can devastate entire crops.
Inefficient Manual Testing
Traditional handheld meters require labor-intensive, discrete sampling. Missed daily EC/pH swings lead to suboptimal yield and wasted fertilizer.
Hydroponics-Specific Configuration
Parameter selection based on greenhouse soilless cultivation requirements

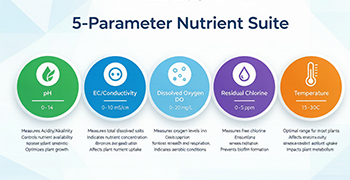

Recommended 5-Parameter Nutrient Suite
|
Parameter
|
Critical Role in Hydroponics
|
Typical Range
|
|
pH
|
Nutrient availability & uptake (ideal: 5.5–6.5)
|
0–14
|
|
EC / Conductivity
|
Fertilizer concentration control; real-time nutrient strength
|
0–10 mS/cm
|
|
Dissolved Oxygen (DO)
|
Root respiration; prevents root rot and hypoxia
|
0–20 mg/L
|
|
Residual Chlorine
|
Prevents biofilm and pathogen spread in irrigation lines
|
0–5 ppm
|
|
Temperature
|
Affects DO saturation, root metabolism, and uptake rates
|
15–30°C
|
✔ Up to 6 channels | Compatible with digital sensors for nutrient solution & source water

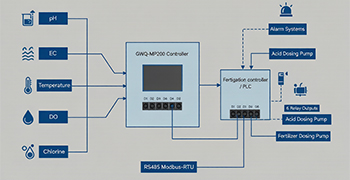

Integration with Fertigation Systems
GWQ-MP200 Controller + Digital Sensors
RS485 to fertigation controller / PLC
6 relays → acid/fertilizer dosing pumps & alarms
-
Communication: 2x RS485 (Modbus-RTU) + 2x 4-20mA
-
Storage: 8GB TF card records pH/EC trends for crop traceability
-
Automatic temperature compensation for accurate EC readings
pH & EC closed-loop control — GWQ-MP200 relays can trigger acid/alkali or fertilizer dosing pumps, maintaining nutrient solution stability automatically [citation:2].
Data-driven fertigation — continuous EC monitoring enables precise fertilizer injection, reducing waste and ensuring consistent crop quality [citation:4].
GWQ-MP200 in Greenhouse Hydroponics
Real installations: NFT systems, deep water culture, and fertigation control rooms
📊 GWQ-MP200 monitoring nutrient solution in greenhouse control room
🔧 Digital pH/EC sensors installed in nutrient tank
📱 Real-time nutrient parameter dashboard on mobile
Actual deployment: Shandong smart greenhouse & commercial hydroponic farms — contact us for more photos
Real Case: 20,000 m² Smart Greenhouse (Thailand)
Challenge: Nutrient solution instability causing physiological disorders and yield loss
Facility Background
This high-tech glass greenhouse produces hydroponic leafy vegetables (lettuce, herbs) for premium supermarket chains. Before upgrading, the farm relied on manual handheld meters for pH and EC — just 2–3 checks per day. Nighttime pH drift and EC fluctuations remained undetected, resulting in 15–20% yield loss from tip burn and calcium deficiency [citation:4]. Additionally, dissolved oxygen levels in the return nutrient solution frequently dropped below 4 mg/L, causing root rot in NFT channels.
GWQ-MP200 Implementation
Installed one GWQ-MP200 with 5 digital sensors: pH, conductivity, dissolved oxygen, residual chlorine, and temperature. Integrated with the existing fertigation controller via RS485 (Modbus-RTU). Configured relays for: low DO → signal to increase aeration pump speed; high EC → dilute with RO water; high residual chlorine → trigger carbon filter bypass .

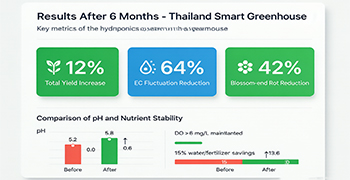

Results after 6 months
12%
Total yield increase [citation:2]
64%
EC fluctuation reduction [citation:2]
42%
Blossom-end rot reduction [citation:2]
“The GWQ-MP200 transformed our nutrient management. Continuous pH/EC monitoring allows us to maintain stable conditions 24/7. Our lettuce now grows faster, with better uniformity and fewer physiological disorders.”
— Greenhouse Operations Manager
Key Metrics Improvement
✅ Nutrient solution pH: from swings of 5.2–7.0 → stable 5.8–6.2
✅ DO levels maintained above 6 mg/L, preventing root disease
✅ Water & fertilizer savings: 15% reduction [citation:2]
Financial Impact
Total investment recovered in 9 months through yield increase + fertilizer savings. Crop uniformity improved, enabling premium pricing with supermarket buyers.
GWQ-MP200: Designed for Hydroponic Agriculture
Multi-parameter flexibility — up to 6 channels, combine pH/EC/DO/chlorine/temperature to suit any hydroponic system (NFT, DWC, aeroponics).
Relay control for fertigation — 6 relays can directly trigger acid/fertilizer dosing pumps or aeration equipment.
Seamless integration — 2x RS485 (Modbus-RTU) + 2x 4-20mA, connects to greenhouse IoT platforms and fertigation controllers [citation:2].
Nutrient recipe logging — 8GB TF card stores years of water quality trends for crop traceability and optimization.
Full Technical Specifications
|
Parameter
|
Specification
|
|
Measurement channels
|
1 to 6, any parameter combination [citation:9]
|
|
Outputs
|
2x isolated 4-20 mA (load <750Ω)
|
|
Communication
|
2x RS485 (Modbus-RTU)
|
|
Relays
|
6 relays, 250VAC/3A [citation:9]
|
|
Data storage
|
TF card 8GB (max 32GB)
|
|
Installation
|
Main unit: wall-mount; Sensors: immersion/thread
|
|
Dimensions
|
223*200*120 mm [citation:9]
|
|
Power supply
|
100–250 VAC, 50/60Hz
|
※ Compatible with digital sensors for nutrient solution, RO water, and source water applications
Configure Your Hydroponic Monitoring System
When ordering, please provide: number of channels, parameter types per channel, measurement ranges, and sensor cable length. Our engineers will recommend the optimal sensor suite for NFT, DWC, or aeroponic systems.
* GWQ-MP200 only works with GAIMC digital sensors — consult sales for complete system compatibility.
