MALAYSIA · WASTEWATER TREATMENT OPTIMIZATION
GMF100 + GWQ-MP200 + GUT742
Integrated Monitoring for Aeration Basins
Flow + Water Quality + Level — Three essential measurements for optimal aeration control | Reduce energy consumption, ensure effluent compliance, prevent overflow
Request Quote
Wastewater Treatment in Malaysia
Malaysia's wastewater treatment sector is expanding rapidly to meet stringent environmental regulations under the Department of Environment (DOE). The country operates over 5,000 sewage treatment plants, with aeration basins being the heart of biological treatment. Aeration typically accounts for 50–60% of a plant's total energy consumption. Under the Green Technology Master Plan, operators are under pressure to optimize energy use while maintaining effluent quality. Real-time monitoring of dissolved oxygen (DO), flow, and basin level is essential for precise aeration control and compliance with Standard A/B discharge limits.
Integrated Solution: Three GAIMC Products
-
GMF100: Electromagnetic flow meter — ±0.5%, DN10–DN2200, RS485, for influent/return sludge flow
-
GWQ-MP200: Multi-parameter analyzer — DO, pH, ORP, conductivity, turbidity
-
GUT742: IP68 ultrasonic level meter — 2–12m range, Bluetooth, ±0.5% accuracy
-
All devices support RS485 (Modbus-RTU) for unified SCADA integration
Top 4 Aeration Basin Pain Points in Malaysia
Challenges impacting energy costs, treatment efficiency, and compliance
DO Control & Energy Waste
Over-aeration wastes energy; under-aeration risks effluent non-compliance. Manual control fails to match real-time oxygen demand.
Flow Imbalance & Sludge Return
Inaccurate flow measurement on influent and return activated sludge (RAS) lines disrupts hydraulic retention time and treatment performance.
Level Fluctuation & Overflow Risk
Basin level spikes during storm events can cause overflow. Manual monitoring lacks the responsiveness needed for real-time control.
Disconnected Data Systems
Separate instruments for flow, DO, and level create data silos, preventing holistic process optimization.
Integrated Aeration Basin Monitoring Solution
Three GAIMC products covering flow, water quality, and level
GMF100 Flow Meter
GMF100 — ±0.5%, DN10~DN2200
|
Specification
|
Details
|
|
Diameter range
|
DN10–DN2200 mm
|
|
Accuracy
|
±0.5%
|
|
Flow rate
|
0.3–10 m/s
|
|
Communication
|
RS485 (Modbus-RTU), GPRS, HART
|
|
Protection
|
IP65/IP67/IP68
|
|
Electrode
|
316L stainless steel
|
✔ Suitable for influent, RAS, and waste sludge flow
GWQ-MP200 Analyzer
GWQ-MP200 — 1~6 channels, RTOS
|
Specification
|
Details
|
|
Parameters
|
DO, pH, ORP, EC, turbidity, etc.
|
|
Channels
|
1 to 6
|
|
Communication
|
2x RS485 (Modbus-RTU)
|
|
Output
|
2x isolated 4-20mA
|
|
Relays
|
6 relays
|
|
Data storage
|
8GB TF card
|
✔ Monitors DO for aeration control & effluent quality
GUT742 Level Meter
GUT742 — IP68, 2–12m range, Bluetooth
|
Specification
|
Details
|
|
Range
|
2m, 5m, 10m, 12m
|
|
Accuracy
|
±0.5%
|
|
Output
|
RS485 / 4-20mA
|
|
Protection
|
IP68 (fully sealed)
|
|
Bluetooth
|
Yes, mobile app configuration
|
|
Shell
|
ABS / PTFE (anti-corrosion)
|
✔ Basin level monitoring & overflow prevention
Integrated Aeration Basin Monitoring Architecture
System Components & Installation Points:
-

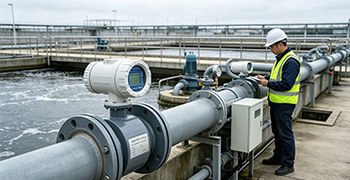

GMF100 — Influent flow, RAS flow, and waste sludge flow measurement
-

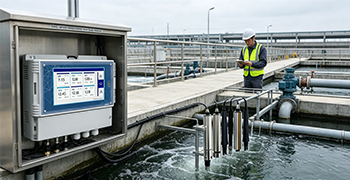

GWQ-MP200 — DO, pH, ORP, and turbidity monitoring in aeration basin
-
GUT742 — Basin water level and overflow protection
-
All devices communicate via RS485 (Modbus-RTU) to central SCADA
Key Integration Benefits:
-
Real-time DO-based aeration control — reduce energy up to 25%
-
Accurate flow balancing for optimal hydraulic retention time
-
Early warning for basin overflow and process upsets
-
Historical data for compliance reporting and trend analysis
Integrated Aeration Basin Monitoring Deployments
Real installations: municipal wastewater treatment plants and industrial effluent facilities

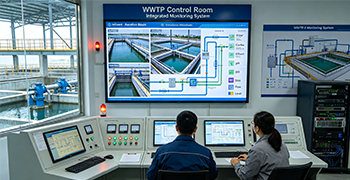

📊 Integrated monitoring system in WWTP control room
🔧 GUT742 ultrasonic level meter on aeration basin
📱 Real-time DO and flow dashboard on mobile
Based on deployments in Malaysian wastewater treatment facilities — contact us for detailed case photos
Real Case: Municipal WWTP (Selangor, Malaysia)
Challenge: High energy consumption and unstable effluent quality in a 150,000 PE plant
Facility Background
A municipal wastewater treatment plant in Selangor serving 150,000 population equivalent (PE) was facing rising energy costs and occasional effluent non-compliance. The aeration basin relied on manual DO measurements (twice per day) and fixed-speed blowers running at constant output—regardless of actual oxygen demand. Basin level was monitored by visual inspection only, creating overflow risks during monsoon season. Flow to the aeration basin was not continuously measured, making it difficult to balance hydraulic loading.
Integrated GAIMC Implementation
Deployed a complete monitoring system: GMF100 electromagnetic flow meters on influent and RAS lines; GWQ-MP200 with DO, pH, and ORP sensors in the aeration basin; and GUT742 IP68 ultrasonic level meters for basin level and overflow protection. All devices integrated via RS485 (Modbus-RTU) to the plant's SCADA system, enabling automatic blower control based on real-time DO.
Results after 6 months
25%
Reduction in aeration energy
100%
Effluent compliance maintained
“The integrated GAIMC system gave us precise control over our aeration process. We've cut energy costs significantly while maintaining excellent effluent quality. The level monitoring has also eliminated our monsoon overflow worries.”
— Plant Manager, Municipal WWTP, Selangor
Key Metrics Improvement
✅ Aeration energy: reduced by 25% through DO-based control
✅ DO monitoring: from 2x/day → continuous real-time
✅ Basin level: real-time monitoring with overflow alerts
Financial Impact
Total investment recovered in under 12 months through energy savings alone. The plant now serves as a model for other municipal facilities in Malaysia aiming to meet Green Technology Master Plan targets.
Why GAIMC's Integrated Solution for Aeration Basins?
Complete measurement coverage — Flow, water quality, and level from a single supplier for simplified integration.
Automated aeration control — GWQ-MP200 relays can trigger blower speed changes based on real-time DO.
Unified communication — All devices support RS485 (Modbus-RTU) for seamless SCADA integration.
Data-driven optimization — Historical logging enables trend analysis, energy reporting, and compliance documentation.
Combined Technical Specifications
|
Product
|
Measurement
|
Key Specs
|
|
GMF100
|
Flow
|
DN10–DN2200, ±0.5%, RS485
|
|
GWQ-MP200
|
DO, pH, ORP, EC, turbidity
|
1–6 channels, 2x RS485, 6 relays
|
|
GUT742
|
Level
|
2–12m, ±0.5%, IP68, Bluetooth
|
※ All products support RS485 Modbus-RTU for integrated process control
Configure Your Aeration Basin Monitoring System
For complete aeration basin monitoring, please provide: pipe diameters, basin dimensions, water quality parameters, and communication requirements. Our engineers will recommend the optimal configuration combining GMF100, GWQ-MP200, and GUT742.
