PHILIPPINES · HVAC & COOLING WATER OPTIMIZATION
Integrated Flow & Water Quality Monitoring for HVAC Systems
Real-time cooling water quality (pH, conductivity, ORP) + flow measurement | Prevent scaling, fouling, and Legionella risks | Cut energy costs
Request Quote
HVAC Water Treatment in the Philippines
The Philippines' tropical climate drives year-round demand for HVAC systems in commercial buildings, hotels, and resorts. Cooling towers, chillers, and closed-loop systems require rigorous water treatment to prevent scale, corrosion, and microbiological growth — all of which reduce efficiency and increase energy costs [citation:12]. Recent studies show that proper cooling water management can significantly reduce condenser approach temperature and annual energy expenditure [citation:3]. Additionally, Legionella risk management has become a priority for hospitality and commercial sectors in the Philippines, with major water providers now offering in-house testing services.
Integrated Solution: GWQ-MP200 + GMF100
-
GMF100: Electromagnetic flow meter — ±0.5% accuracy, DN10–DN2200, RS485 Modbus-RTU, ideal for cooling tower water circulation
-
GWQ-MP200: Multi-parameter water quality analyzer — pH, conductivity, ORP, residual chlorine, turbidity, etc.
-
Seamless integration via RS485 Modbus-RTU for unified cooling water management
-
Proven results: Significant energy savings and improved system reliability
Top 4 HVAC Cooling Water Management Pain Points
Challenges that impact energy efficiency, equipment life, and regulatory compliance
Scaling & Fouling
High water hardness and conductivity cause scale formation in chillers and cooling towers, reducing heat exchange efficiency and increasing energy consumption.
Legionella Risk
Warm cooling water environments promote Legionella growth — a major health and compliance concern for hotels and commercial buildings in the Philippines.
Manual, Infrequent Monitoring
Traditional water quality testing relies on manual sampling, missing critical daily fluctuations in pH, conductivity, and ORP that affect treatment efficacy.
Flow & Quality Data Silos
Flow meters and water quality analyzers are often separate systems, making unified analysis and automated control difficult.
Integrated Solution: Flow + Water Quality Monitoring for HVAC
Recommended configuration for cooling tower and chiller water management
GMF100 Electromagnetic Flow Meter
GMF100 — ±0.5% accuracy, DN10~DN2200
|
Specification
|
Details
|
|
Measurement range
|
DN10–DN2200 mm
|
|
Accuracy
|
±0.5%
|
|
Medium temperature
|
<60°C
|
|
Communication
|
RS485 (Modbus-RTU), GPRS, HART
|
|
Output
|
Pulse & 4-20mA
|
|
Protection
|
IP65/IP67/IP68
|
✔ Suitable for domestic water, industrial water, cooling water, raw water
GWQ-MP200 Multi-Parameter Analyzer
GWQ-MP200 — 1~6 channels, RTOS, touchscreen
|
Specification
|
Details
|
|
Parameters
|
pH, ORP, conductivity, TDS, DO, residual chlorine, turbidity, etc.
|
|
Channels
|
1 to 6
|
|
Communication
|
2x RS485 (Modbus-RTU)
|
|
Output
|
2x isolated 4-20mA
|
|
Relays
|
6 relays
|
|
Data storage
|
8GB TF card (max 32GB)
|
✔ Compatible with digital sensors for cooling water monitoring
Integrated HVAC Monitoring Architecture
System Components:
-
GMF100 — Installed on cooling water supply/return lines for real-time flow measurement
-
GWQ-MP200 — Monitors pH, conductivity, ORP, residual chlorine in cooling tower water
-
Both devices communicate via RS485 (Modbus-RTU) to a central BMS/SCADA
-
Data visualized on dashboard and accessible via mobile app
-
Relays on GWQ-MP200 can trigger automated chemical dosing and alarm systems
Key Integration Benefits:
-
Unified data platform for flow and water quality
-
Real-time alerts for flow anomalies and water quality deviations
-
Historical data logging for compliance and optimization
-
Supports both cooling tower and chiller systems
HVAC Water Monitoring Deployments
Real installations: cooling towers, chiller plants, and hotel facilities in the Philippines

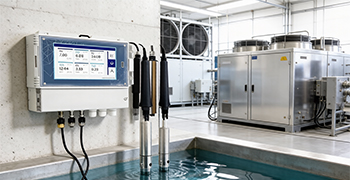

📊 GWQ-MP200 monitoring system in chiller plant

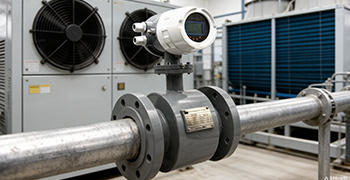

🔧 GMF100 flow meter installed on cooling water supply line
📱 Cooling Water Case Studies
Based on deployments in Philippine hospitality and commercial facilities — contact us for detailed case photos
Real Case: Cooling Water Optimization for a Multinational Hospitality Chain (Philippines)
Challenge: Soaring energy costs due to scaling and suboptimal cooling water treatment
Facility Background
A premier multinational hospitality chain in the Philippines with two chiller plants (200 TR × 2 and 90 TR × 1) faced severe scaling in their cooling tower system due to high water parameters and ineffective chemical treatments. This led to frequent descaling and higher-than-expected energy consumption. The condenser approach temperature was recorded at 7.5°C at only 44% load, indicating significant efficiency loss [citation:3].
GWQ-MP200 + GMF100 Implementation
Deployed one GMF100 electromagnetic flow meter on the cooling water circulation line for real-time flow monitoring. Installed one GWQ-MP200 with pH, conductivity, and ORP sensors to continuously monitor critical parameters. Both devices integrated via RS485 (Modbus-RTU) to the facility's BMS. Relays on the GWQ-MP200 were configured for automated chemical dosing and alarm triggers when parameters deviated from set points.
Results after 4 months
3.9°C
Condenser approach temperature improved (from 7.5°C) [citation:3]
74%
Load increased while approach temperature decreased [citation:3]
✔
No further descaling required
“The integrated flow and water quality monitoring system transformed our cooling water management. We achieved substantial annual energy cost savings and eliminated unplanned downtime.”
— Facility Operations Manager, Hospitality Chain [citation:3]
The system also supported Legionella risk management through continuous ORP and residual chlorine monitoring, aligning with Philippine health and safety standards [citation:6][citation:9].
Key Metrics Improvement
✅ Condenser approach temperature: 7.5°C → 3.9°C (48% improvement)
✅ Energy savings: Significant annual cost reduction
✅ Chemical dosing: Automated and optimized based on real-time data
Financial & Operational Impact
Reduced energy consumption through improved heat exchange efficiency. Eliminated frequent descaling costs. Enhanced compliance with Legionella safety requirements. System now serves as a model for other hospitality facilities in the Philippines .
Why GWQ-MP200 + GMF100 for HVAC?
Complete monitoring solution — Flow (GMF100) + water quality (GWQ-MP200) in one integrated system.
Automated chemical dosing — GWQ-MP200 relays trigger treatment pumps based on pH, conductivity, and ORP thresholds .
Remote monitoring — RS485 Modbus-RTU enables integration with BMS and mobile alerts .
Compliance logging — 8GB TF card stores years of cooling water quality data for audit and reporting .
Combined Technical Specifications
|
Feature
|
GMF100
|
GWQ-MP200
|
|
Measurement
|
Flow rate (0.3–10 m/s)
|
pH, ORP, conductivity, DO, residual chlorine, etc.
|
|
Accuracy
|
±0.5%
|
Sensor-dependent
|
|
Communication
|
RS485 (Modbus-RTU), GPRS, HART
|
2x RS485 (Modbus-RTU)
|
|
Outputs
|
Pulse & 4-20mA
|
2x 4-20mA + 6 relays
|
|
Data storage
|
—
|
8GB TF card (max 32GB)
|
|
Protection
|
IP65/IP67/IP68
|
IP65 (controller), IP68 (sensors)
|
※ Both products support RS485 Modbus-RTU for seamless BMS integration
Configure Your HVAC Water Monitoring System
For integrated flow + water quality monitoring in HVAC systems, please provide: cooling water pipe diameter (DN), desired water quality parameters, and communication requirements. Our engineers will recommend the optimal GMF100 + GWQ-MP200 configuration for your facility.
* GWQ-MP200 only works with GAIMC digital sensors — GMF100 available in DN10–DN2200. Consult sales for complete system compatibility.
