📍 Project Location: Bavaria, Germany — Industrial Biotech & Fermentation Facility
🧫 Application Scenarios: Stainless steel fermenters (10,000 L & 50,000 L), microbial and cell culture processes, nutrient feed monitoring, harvest line quality control

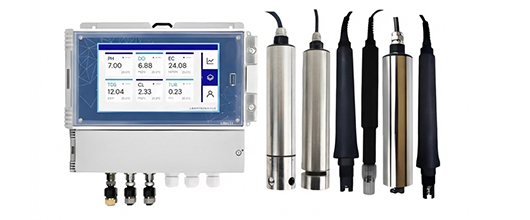

📅 Implementation: 2024 – present  |  Equipment: GAIMC GWQ-MP200 Multi-parameter Water Quality Analyzer (supports pH/DO/Conductivity/Turbidity/Temperature, digital sensors)

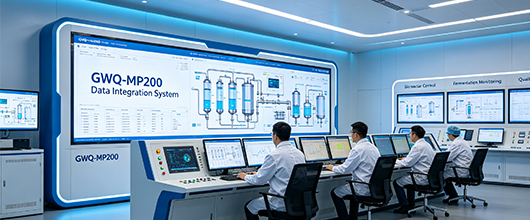

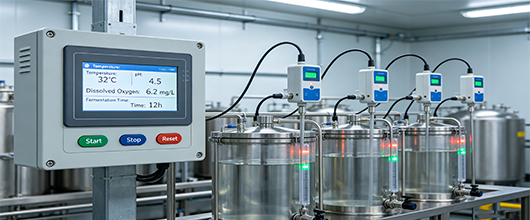

In industrial fermentation (pharmaceuticals, food, biofuels), precise control of critical parameters — pH, dissolved oxygen (DO), conductivity (nutrient concentration), and turbidity (cell density) — is essential for maximizing yield, consistency, and batch success. Traditional offline sampling introduces contamination risks and delayed response, leading to suboptimal conditions, lower productivity, and batch failures. The GWQ-MP200 multi-parameter analyzer features a high-reliability real-time OS (RTOS) and connects digital sensors for pH, DO, conductivity, turbidity, and temperature. It enables 24/7 online monitoring directly inside fermenters or on recirculation loops. Data is transmitted via RS485 (Modbus-RTU) and 4-20mA to the facility's Bioprocess Control System (BCS) / SCADA for automated nutrient feeding, aeration control, and harvest timing, ensuring optimal cell growth conditions and batch-to-batch reproducibility.

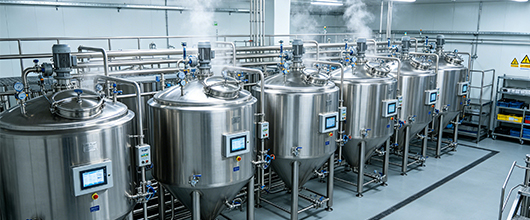

At the Bavaria biotech facility, two GWQ-MP200 analyzers were deployed across multiple 10,000 L and 50,000 L fermenters producing pharmaceutical-grade proteins. Key parameters (pH, DO, conductivity, turbidity) were monitored online and fed into the BCS for automated glucose feeding, DO-stat aeration control, and harvest timing. After 9 months of operation:

• Average product yield increased by 17% thanks to tighter pH (±0.05) and DO (±2%) control;
• Batch-to-batch variability (CV) reduced by 23%, improving overall process robustness;
• Nutrient consumption optimized through conductivity-based feeding — 12% reduction in feed media;
• Manual sampling frequency decreased by 85%, significantly reducing contamination risk;
• Complete batch data logs provided full traceability for regulatory audits (German and EU GMP requirements).

Based on industrial fermentation requirements, GWQ-MP200 recommended configuration:

• Standard fermenter monitoring (4 channels): pH + Dissolved Oxygen + Conductivity + Temperature — core parameters for most microbial and cell culture processes;
• Advanced biomass estimation (add turbidity): add 5th channel for turbidity-based cell density monitoring to determine harvest timing;
• Nutrient feed optimization: use conductivity as a proxy for nutrient concentration to control feed pump relays automatically.

When ordering, specify number of channels, parameter type per channel, measurement range, and cable length. Compatible only with digital sensors. Sterilizable / autoclavable sensor options available for in-situ bioreactor installation.

“The GWQ-MP200 has become an essential part of our fermentation control strategy. The real-time pH and DO stability we achieved is remarkable — our batch reproducibility has never been better. The conductivity-based feeding logic alone saved us 12% in media costs. Plus, having all batch data automatically logged has made our regulatory audits smooth and stress-free. Highly recommended for any bioprocess facility looking to scale up with confidence.” — Senior Bioprocess Engineer, Bavaria Biotech GmbH
