GWQ-MP160 Universal Water Quality Analyzer

Online Water Quality Analyzer

Multi-Parameter Online Monitoring & Real-Time Data Transmission

Automatic Sensor Recognition & Plug-and-Play Operation

Robust IP65/IP68 Protection for Harsh Environments

Isolated 4-20mA & RS485 Output for Reliable Signal Integrity

Large Color Display with Intuitive User Interface

Long-Term Power-Off Protection & Watchdog Function

Get Quotes

Advanced Universal Water Quality Analyzer for Continuous Monitoring

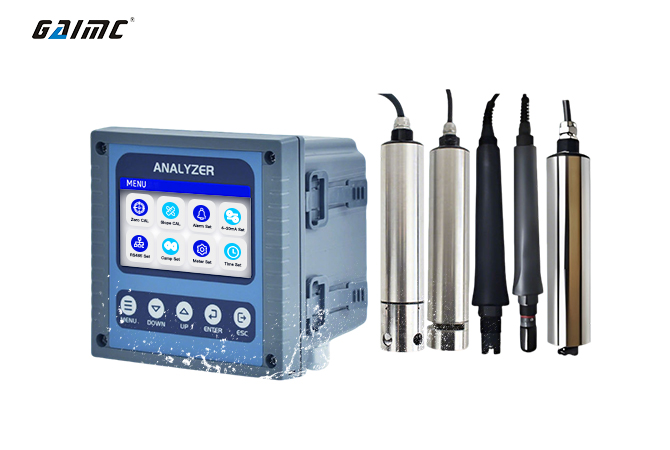

The GWQ-MP160 Universal Water Quality Analyzer represents the next generation of intelligent water quality monitoring solutions. Developed by GAIMC, this advanced analyzer works seamlessly with digital sensors to provide continuous, online measurement of critical parameters including pH, conductivity, dissolved oxygen, residual chlorine, turbidity, COD, BOD, and more. With remote data transmission via 4-20mA or RS485 outputs, it offers reliable performance for environmental protection, wastewater treatment, power generation, aquaculture, food processing, and numerous other industrial applications.

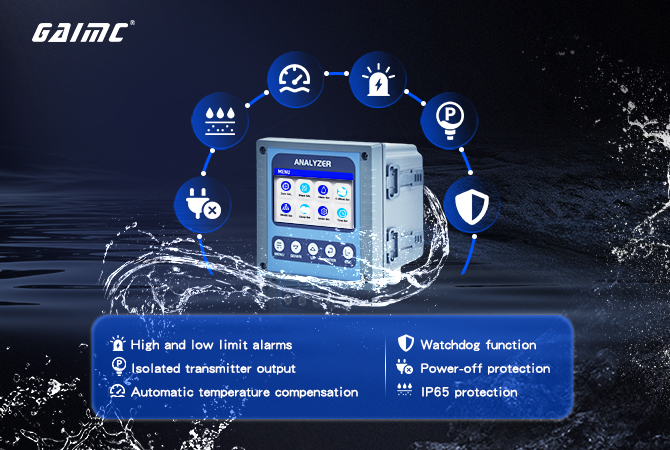

Key Features & Benefits

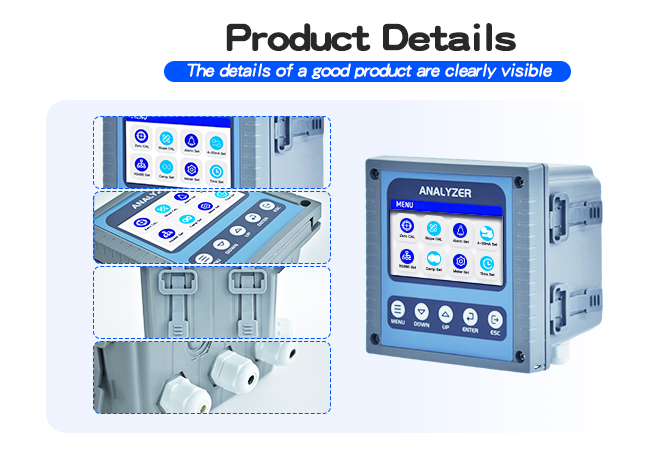

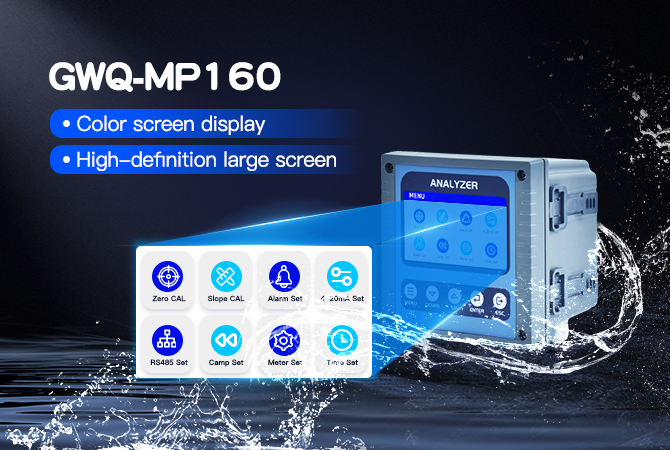

Large Full-Color Display

Clear, intuitive interface for easy reading and operation.

Automatic Sensor Recognition

Effortlessly connects and identifies various digital sensors without manual configuration.

Automatic Temperature Compensation

Ensures accurate readings across varying temperature conditions.

Isolated Transmitter Output

Provides reliable signal transmission with minimal interference.

High/Low Limit Alarms

Instant alerts for out-of-range parameters to maintain process control.

Watchdog Function

Prevents system crashes and ensures continuous operation.

Power-Off Protection

Retains data and settings for over 10 years without power.

IP65 & IP68 Protection

Rugged design suitable for harsh industrial environments.

Technical Specifications

Measurement Parameters	pH, ORP, Conductivity, TDS, Salinity, Dissolved Oxygen, Residual Chlorine, Ozone, Turbidity, Suspended Solids, Sludge Concentration, Water Hardness, COD, BOD, Ammonia Nitrogen, Chlorophyll, Blue-Green Algae, Ions, and more.
Output	1 isolated 4-20mA output (load < 750Ω)
Communication	1 RS485 (Modbus-RTU) communication interface
Relays	2 relays (250VAC/10A)
Power Supply	100–250VAC or 12–36VDC
Protection Rating	IP65 (controller), IP68 (sensor)
Operating Environment	Temperature: 0–60°C; Relative humidity: ≤90% RH
Dimensions	144 × 144 × 115 mm
Panel Cutout Size	138 × 138 mm

Note: Only one sensor can be connected at a time. Measurement range, accuracy, and temperature compensation depend on the selected sensor model.

Ideal for a Wide Range of Industries

Environmental Protection
Wastewater Treatment
Thermal Power Plants
Aquaculture
Food & Beverage Processing
Printing & Packaging
Metallurgy
Pharmaceuticals
Chemical Industry
Municipal Water Supply

Ready to Enhance Your Water Quality Monitoring?

Contact us today to learn more about the GWQ-MP160 Universal Water Quality Analyzer and how it can be tailored to meet your specific monitoring needs.
