Multiparameter Water Quality Meter-GAIMC Brand

GWQ-MP100 Multi-parameter Water Quality Analyzer | GAIMC

Product Overview

The GWQ-MP100 is an online multi-parameter water quality analyzer independently developed by GAIMC, featuring high stability, excellent repeatability and multi-functional integration. It can accurately measure 1~6 parameters in solutions simultaneously, meeting comprehensive water quality monitoring needs of various industries.

Equipped with standard temperature compensation, 4-20mA signal output, RS485 communication (partially compatible with MODBUS protocol) and 4-way relay alarms, the analyzer supports wall-mounted installation with IP65 protection grade. It is widely applied in environmental protection, sewage treatment, thermal power, breeding, food processing, printing, metallurgy, pharmaceutical, fermentation, chemical and tap water industries for online detection of pH, residual chlorine, turbidity, conductivity, dissolved oxygen and suspended solids.

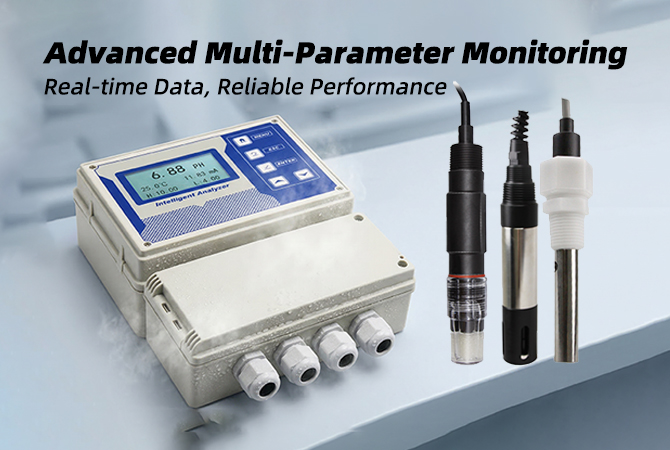

GWQ-MP100 Multi-parameter Water Quality Analyzer Host

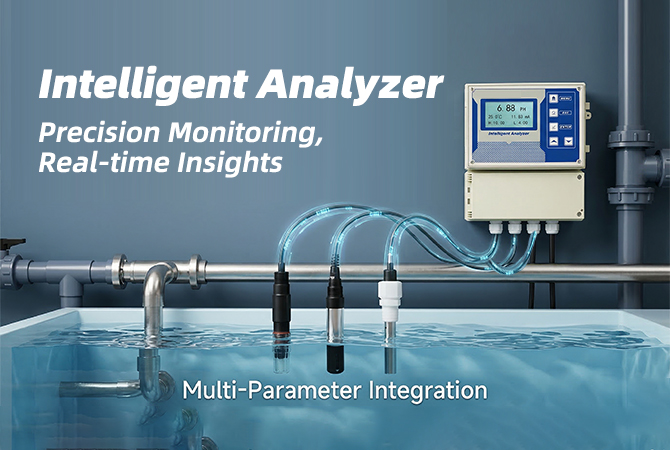

GWQ-MP100 Industrial Water Quality Monitoring Scene

Key Features

📊

Multi-parameter Combination

Supports simultaneous monitoring of 1~6 parameters, flexible combination of pH/ORP/conductivity/DO/turbidity/residual chlorine/suspended solids.

🎯

High Precision & Stability

Superior measurement accuracy and repeatability, with standard temperature compensation (0~60℃) to ensure data reliability.

📡

Rich Output & Communication

Standard 4-20mA signal output and RS485 communication (partially compatible with MODBUS protocol) for remote monitoring.

🔔

Reliable Alarm Function

4-way relay alarms (2 high/low limit alarms each) for real-time early warning of abnormal water quality parameters.

🛡️

Dual Protection Mechanisms

IP65 protection grade and watchdog function, recoverable factory settings for stable operation in harsh environments.

⚡

Flexible Power & Installation

Supports 24VDC/220VAC dual power supply; wall-mounted host installation, thread/immersion electrode installation.

Technical Specifications

Item	Details
Model	GWQ-MP100
Measuring parameters & range	pH: 0~14pH; ORP: ±1999mV; Conductivity: 0~20ms/cm (customizable up to 300ms/cm); Dissolved Oxygen: 0~20mg/L; Turbidity: 0~10000NTU; Residual Chlorine: 0~20mg/L; Suspension Solid: 0~10000mg/L
Measurement accuracy	pH: ±0.02pH; ORP: ±1mV; Conductivity: ±2%F.S; Dissolved Oxygen: ±1%F.S; Turbidity: ±2%F.S; Residual Chlorine: ±2%F.S; Suspension Solid: ±2%F.S
Temperature compensation	Standard function, 0~60℃; Temperature accuracy: ±0.3℃
Signal output	1 way 4-20mA (standard)
Communication	1 way RS485 (partially compatible with MODBUS protocol)
Relay alarm	4 way relays (2 high and low alarms each)
Power supply	24VDC / 220VAC
Protection grade	IP65
Installation	Host: Wall mount; Electrode: Thread / Immersion (depending on electrode type)
Host dimensions (mm)	218×183×126
Cable length	Standard 5m; Customized length available

Model Selection

GWQ-MP100	Measuring Parameters (Max 6)	Power Supply	Cable Length	Note
GWQ-MP100-□-□-□	pH	-	-	pH: 0~14pH
	ORP			ORP: ±1999mV
	EC(K**)			Conductivity: 0~20ms/cm (customizable up to 300ms/cm)
	DO			Dissolved Oxygen: 0~20mg/L
	TUR(**)			Turbidity: 0~10000NTU (actual range to be confirmed)
	CL			Residual Chlorine: 0~20mg/L
	SS(**)			Suspension Solid: 0~10000mg/L (actual range to be confirmed)
	-	24	-	24VDC
	-	220	-	220VAC
	-	-	05	5m (standard)
	-	-	**	Customized length
	Example: GWQ-MP100-pH-ORP-EC(K1.0)-DO-TUR(500)-SS(200)-24-05 Interpretation: pH(0~14pH) + ORP(±1999mV) + Conductivity(0~2000us/cm) + DO(0~20mg/L) + Turbidity(0~500NTU) + Suspension Solid(0~200mg/L), 24VDC, 5m cable

Core Applications

♻️

Environmental Protection

Comprehensive water quality parameter monitoring in environmental detection projects.

🏭

Wastewater Treatment

Multi-parameter online detection in industrial and municipal wastewater treatment.

⚡

Thermal Power Industry

Water quality monitoring in power plant cooling and production water systems.

🐟

Breeding Industry

Water quality parameter detection in aquaculture ponds.

🍜

Food Processing

Production water and wastewater multi-parameter monitoring.

💊

Pharmaceutical & Chemical

Water quality detection in pharmaceutical and chemical production processes.

FAQ

How many parameters can GWQ-MP100 measure simultaneously?

The GWQ-MP100 supports flexible combination of 1~6 parameters for simultaneous monitoring. The optional parameters include pH, ORP, conductivity, dissolved oxygen (DO), turbidity, residual chlorine and suspension solid (SS), which can be customized according to actual monitoring needs.

What communication protocols and signal outputs does the analyzer support?

The analyzer is equipped with standard 1 way 4-20mA analog signal output and 1 way RS485 communication interface (partially compatible with MODBUS protocol), which can be easily connected to back-end control systems, data recorders and computers for remote monitoring and data management.

What power supply and installation methods are available for GWQ-MP100?

Power supply: Supports dual options of 24VDC and 220VAC, adapting to different on-site power supply conditions; Installation method: The host adopts wall-mounted installation, and the electrode can be installed by thread or immersion (depending on the electrode type), which is flexible and convenient.

What is the conductivity range and electrode selection principle of the analyzer?

The conventional maximum conductivity range is 20ms/cm, and it can be customized up to 300ms/cm. The corresponding electrode should be selected according to the actual measurement range: K0.01 (0-20us/cm), K0.1 (0-200us/cm), K1.0 (0-2000us/cm), K10.0 (0-20000us/cm). In addition, the actual ranges of turbidity and suspension solid need to be confirmed before customization.

Industrial Online Multi-parameter Water Quality Monitoring Solution

GWQ-MP100 multi-parameter water quality analyzer supports 1~6 parameters simultaneous monitoring, with high precision, rich output functions and IP65 protection.
Ideal for environmental protection, wastewater treatment, thermal power, breeding, food processing and pharmaceutical industries' comprehensive water quality monitoring needs.
