Online Conductivity meter

GWQ-EC200 Conductivity Meter | GAIMC

Product Overview

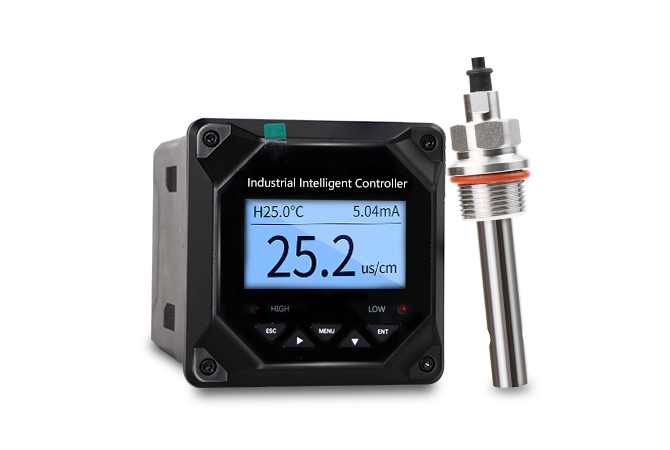

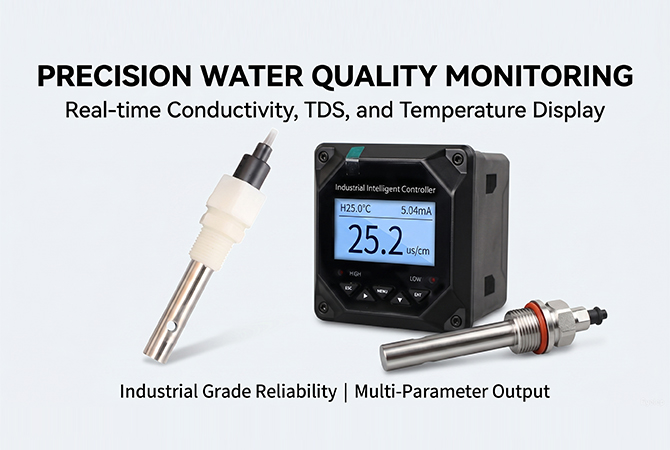

The GWQ-EC200 is an industrial intelligent online conductivity analyzer, a professional smart chemical analysis equipment for continuous monitoring of EC value, TDS and temperature values of solutions. It can transmit monitoring data to recorders for remote monitoring and recording, and is equipped with an isolated RS485 interface that can be easily connected to computers for data monitoring and recording through MODBUS-RTU protocol.

Widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, tap water and other industries, the equipment has the characteristics of high measurement accuracy, stable performance, multiple protection functions, and easy operation, which fully meets the online monitoring needs of industrial sites.

Key Features

📊

Multi-parameter Display

Simultaneously display EC/TDS, output current and temperature values for comprehensive monitoring.

🛡️

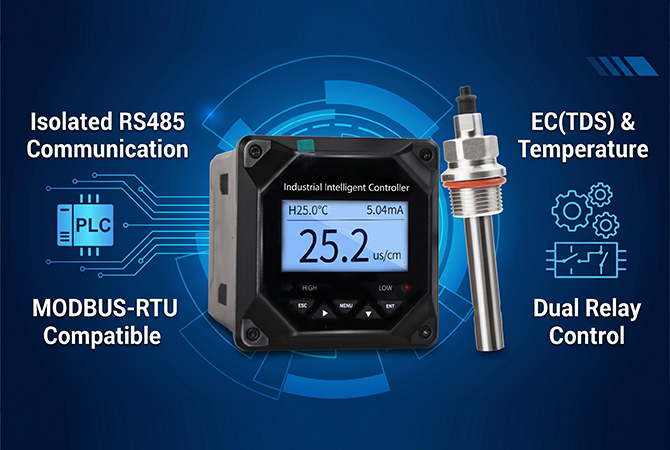

Isolated Output

Isolated transmission output and RS485 communication, effectively reduce external interference.

🌡️

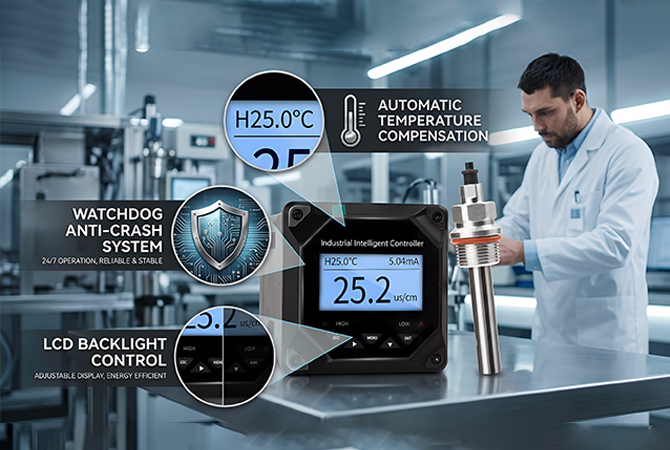

ATC Function

Automatic temperature compensation function, ensure measurement accuracy under different temperatures.

🔒

WDT Protection

Watchdog program prevents the instrument from crashing, stable operation for a long time.

💡

Backlight Switch

Configurable LCD backlight switch function, easy to operate in dark industrial environment.

⚠️

Dual Relay Alarm

Two-way relay, can control EC(TDS) and temperature alarm at the same time, real-time early warning.

Technical Specifications

Controller Technical Parameters

Item	Details
Model	GWQ-EC200
Measuring range (EC)	0.02~20uS/cm(K=0.01) \| 0.2~200uS/cm(K=0.1) \| 2.0~2000uS/cm(K=1.0) \| 20~20000uS/cm(K=10)
Measuring range (TDS)	0.01~10ppm(K=0.01) \| 0.1~100ppm(K=0.1) \| 1.0~1000ppm(K=1.0) \| 10~10000ppm(K=10)
Accuracy (EC/TDS)	±2%FS
Temperature range	-10 ~ +130 ℃
Accuracy (Temperature)	±0.5 ℃
Relay alarm	250VAC/3A
Current Output	Isolated transmission 4-20mA output, maximum loop 750Ω,≤±0.2%FS
Communication	RS485 (compatible with MODBUS RTU)

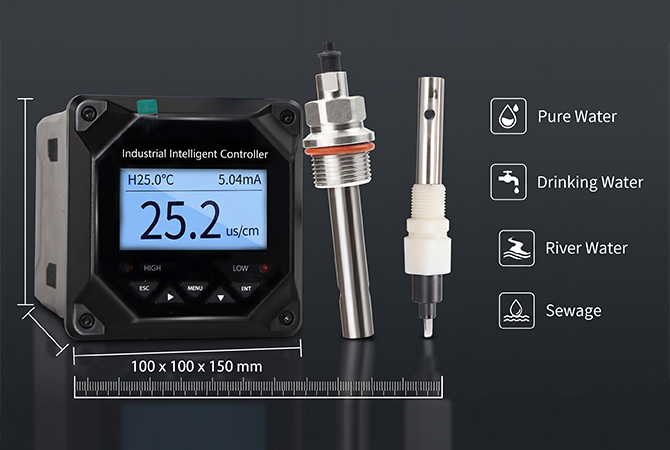

Dimensions (mm)	100100150
Opening size (mm)	92.5*92.5
Weight	0.65Kg
Power supply	AC220V±10% , 50Hz
Protection grade	IP54

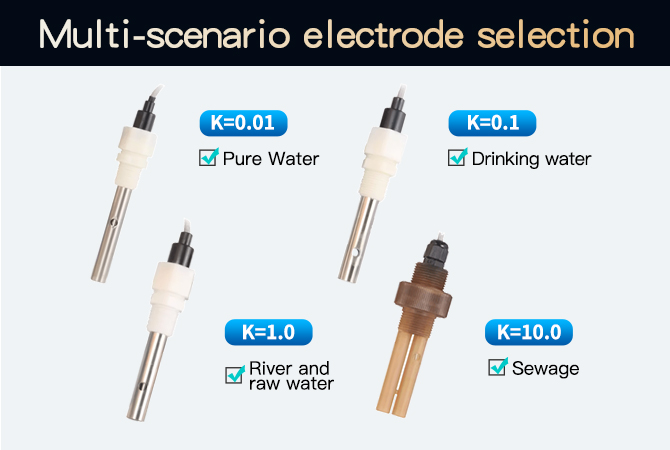

Electrode Technical Parameters

Model	Electrode constant(K)	Measuring range(EC)	Measuring range(TDS)	Connection method	Material	Cable	Application
GEC-EC0.01L	0.01	0.02 ~ 20uS/cm	0.01 ~ 10ppm	1/2NPT	304SS	5m(Standard)	Pure water, ultrapure water
GEC-EC0.1L	0.1	0.2 ~ 200uS/cm	0.1 ~ 100ppm	1/2NPT	304SS	5m(Standard)	Drinking water
GEC-EC1.0L	1.0	2.0 ~ 2000uS/cm	1.0 ~ 1000ppm	1/2NPT	304SS	5m(Standard)	River and raw water
GEC-EC10.0L	10.0	20 ~ 20000uS/cm	10 ~ 10000ppm	3/4NPT	Polysulfone	5m(Standard)	Sewage

Core Applications

⚡

Thermal Power

Solution EC/TDS monitoring in power plant water treatment system.

🧪

Chemical & Fertilizer

Real-time monitoring of chemical solution concentration and temperature.

🚰

Water Supply & Treatment

Tap water, sewage and reclaimed water quality online detection.

🍜

Food & Pharmaceutical

Pure water and solution monitoring in food and biochemical pharmacy.

FAQ

What is the measurement accuracy of the GWQ-EC200?

The GWQ-EC200 has a measurement accuracy of ±2%FS for EC/TDS, and the temperature measurement accuracy is ±0.5 ℃, which meets the industrial on-site monitoring requirements.

What communication protocols does the GWQ-EC200 support?

It is equipped with an isolated RS485 interface, which is compatible with MODBUS-RTU protocol, and can be easily connected to a computer for remote data monitoring and recording.

What is the temperature compensation range of the equipment?

The GWQ-EC200 has an automatic temperature compensation (ATC) function, and the applicable temperature range is -10 ~ +130 ℃, which ensures the accuracy of EC/TDS measurement under different temperature conditions.

What types of electrodes are matched with GWQ-EC200?

It is matched with four types of electrodes: GEC-EC0.01L, GEC-EC0.1L, GEC-EC1.0L and GEC-EC10.0L, with electrode constants of 0.01, 0.1, 1.0 and 10.0 respectively, suitable for different EC/TDS measurement ranges.

What is the protection grade of the GWQ-EC200?

The protection grade of the GWQ-EC200 is IP54, which can effectively prevent dust and splashing water from invading, and is suitable for various industrial site environments.

Industrial Online Conductivity Monitoring Solution

GWQ-EC200 industrial intelligent conductivity meter supports multi-parameter real-time monitoring, isolated output and remote communication.
Customize electrode models and on-site monitoring solutions according to your industrial needs.
