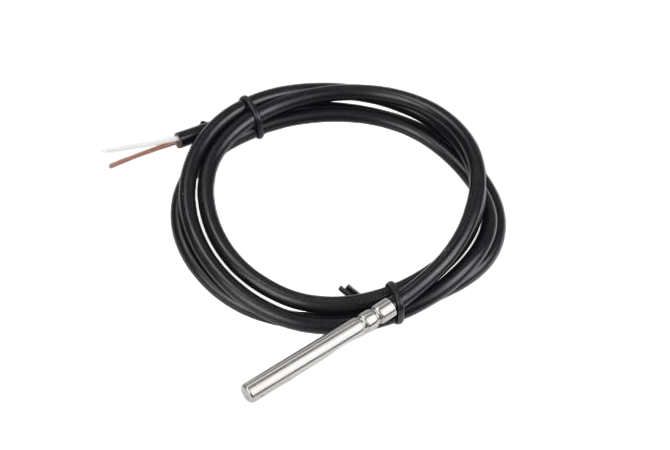

GTS500 PTC Temperature Sensor
  • GTS500 PTC Temperature Sensor

GTS500 PTC Temperature Sensor

-50~250℃ | CE RoHS REACH ISO9001

  • High Reliability: No moving parts, ensuring long-term stability.
  • Self-Protection: Automatically limits current during overheating.
  • Cost-Effective: Simple design and low manufacturing costs.
  • Flexible packaging: Available in tiny chips to sturdy probes for different needs.
  • Easy integration: Simple analog interface and proven solutions for smooth design integration.
  • Wide application: Perfect for consumer electronics, appliances, and automotive temperature control.

Get Quotes

The GTS500 series PTC temperature sensors have a positive temperature coefficient of resistance and are suitable for use in measurement and control systems. It is typically made from ceramic materials (e.g., barium titanate-based semiconductors) or polymer-based composites.

Ceramic PTC

Widely used for their stability and high-temperature performance

Polymer PTC

Often called "resettable fuses", flexible and suited for overcurrent protection

Key Characteristics

📊

Non-linear Response

Resistance remains low below the Curie temperature but rises abruptly above it

🔄

Self-Regulating

Ideal for applications requiring automatic temperature control (e.g., heating systems)

🌡️

Temperature Range

Operates effectively between -50°C to 250°C, depending on material and design

⏱️

Hysteresis

Exhibits a delay in resistance drop during cooling, which can be tailored for specific uses

Parameters

Parameter Specification
Chip PTC thermistor
Temp. range -50°C ~ 250°C
Shell size Diameter: ¢3~¢9mm, length: 3mm~1000mm
Shell material Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC
Cable PVC, silicone, teflon etc. UL series (such as UL1007)
Connector Molex, JST, DuPont, CWB, CJT, etc.

Applications

🔌

Electronic devices

  • Overcurrent protection
  • Temperature control
  • Heating elements
🚗

Automotive applications

  • Seat heating
  • Rearview mirror defoggers
🏭

Industrial applications

  • Overheating protection for motors
  • Transformer protection
🏠

Home appliances

  • Temperature control for air conditioners
  • Refrigerator systems
🏥

Medical devices

  • Temperature monitoring for MRI machines
  • Ventilator systems
📱

Smart homes

  • Internet of Things integration
  • Remote monitoring

Advantages

🛡️

High Reliability

No moving parts, ensuring long-term stability

Self-Protection

Automatically limits current during overheating

💰

Cost-Effective

Simple design and low manufacturing costs
