NTC temperature sensor Manufacturer

NTC Thermistor Series | GAIMC

Product Overview

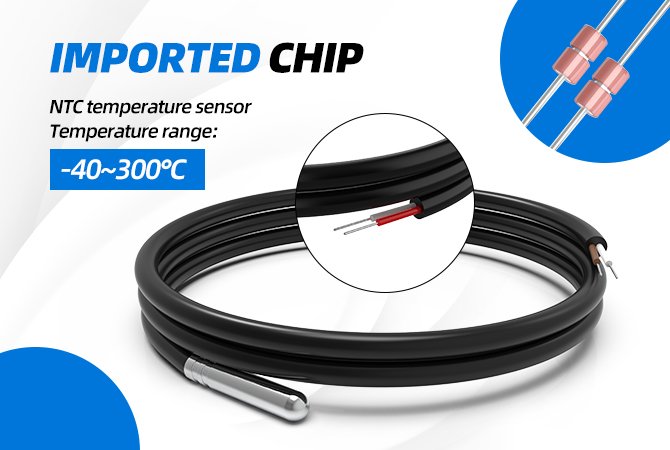

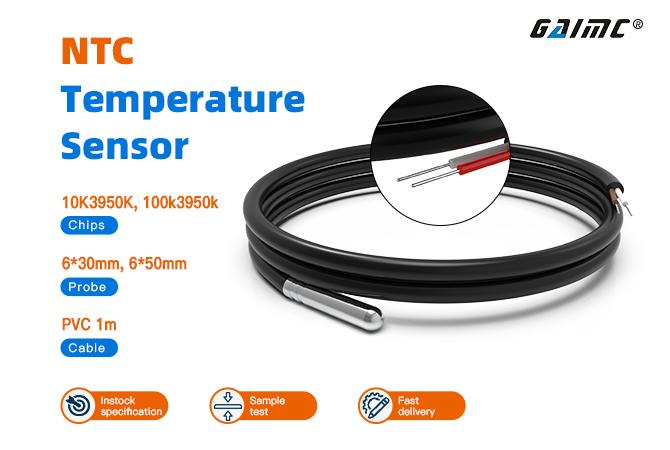

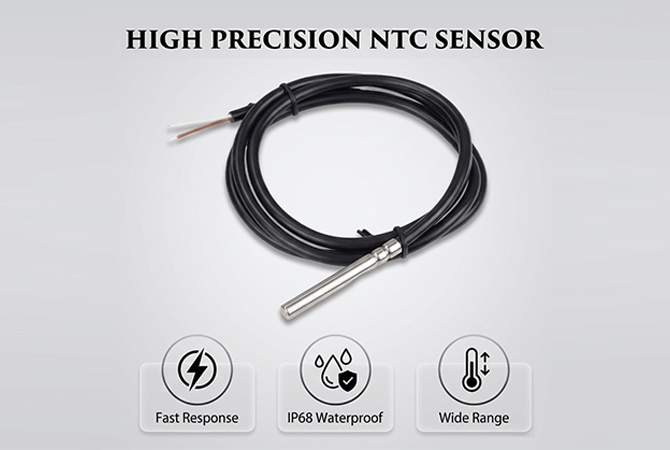

The high-precision, high-reliability NTC thermistor is connected to the wire and encapsulated into the required shape with insulating, heat-conducting and waterproof materials, which is convenient for installation and remote temperature measurement.

Operating temperature range: -40~300°C. With special manufacturing process and reliable sealing structure, the average life of the product can reach more than 10 years (annual resistance value drift rate ≤1‰).

Key Features

📏

Wide resistance range

1KΩ ~ 500KΩ (1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ etc.) high precision, good consistency.

🔬

High precision B value

B25/50: 3270K ~ 4650K (3270,3380,3470,3550,3700,3950,4200,4650K) tolerance ±1%.

🧪

Double-layer sealing

Good insulation, anti-mechanical collision, anti-bending, high reliability, fast response.

⏳

Long-term stability

Annual resistance drift ≤1‰, can work stably for a long time; average life >10 years.

🌡️

Wide temp range

Operating temperature: -40°C ~ +300°C, suitable for extreme environments.

🔌

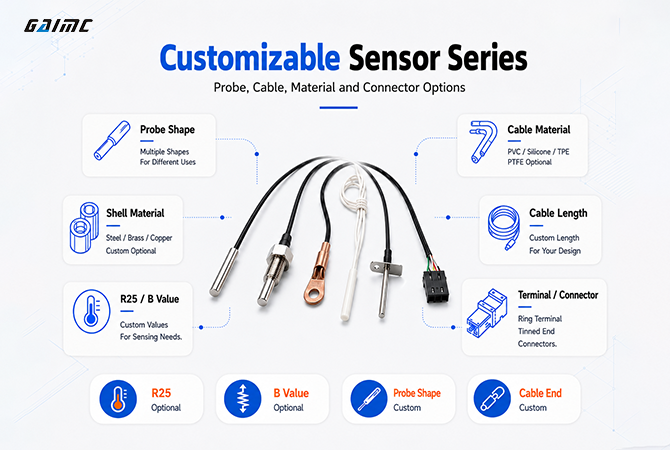

Customizable package

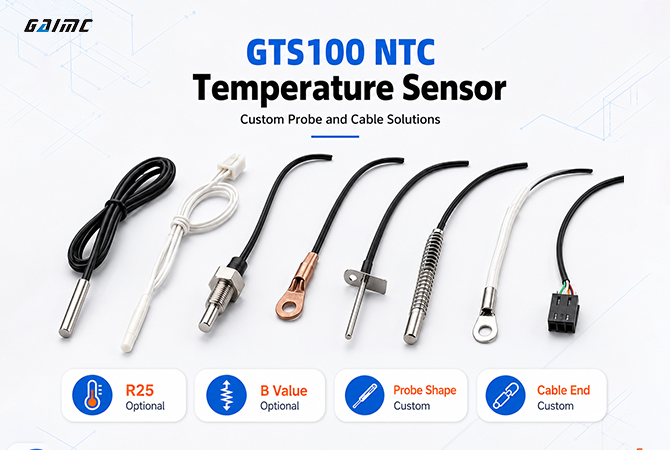

Packaged according to installation conditions: various shell materials, wire length, connector.

Technical Parameters

Parameter	Specification / Options

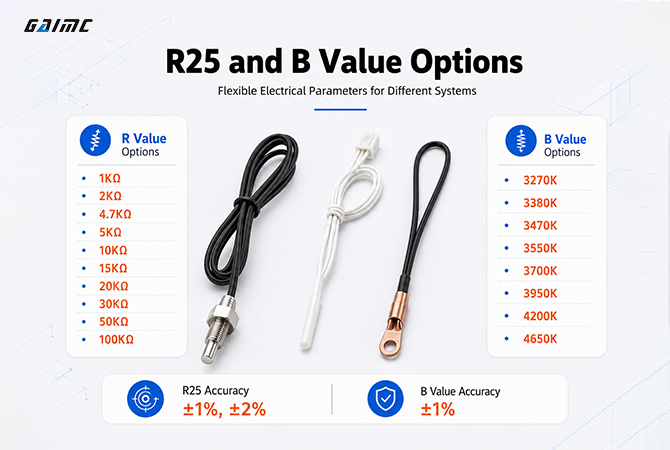

R value (R25)	1KΩ ~ 1400KΩ (1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ, etc.)
B value (R25/50)	3270K ~ 4650K (3270K,3380K,3470K,3550K,3700K,3950K,4200K,4650K) etc.
R25 accuracy	±1% , ±2%
B value accuracy	±1%

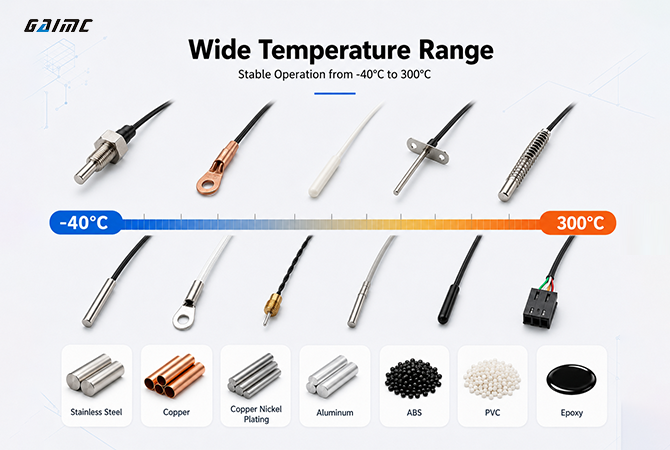

Temperature range	-40 ~ +300°C

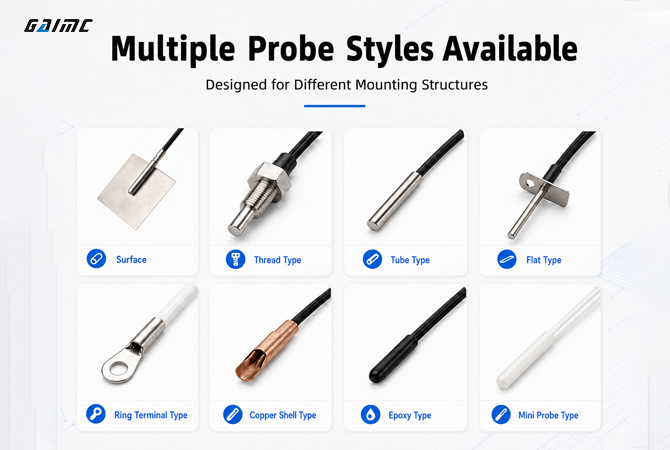

Shell size (diameter*length)	Diameter φ1.5 ~ φ9mm, length 3mm ~ 1000mm

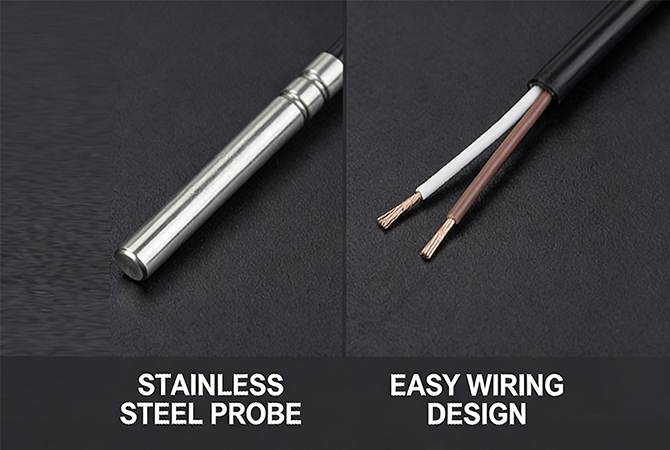

Shell material	Stainless steel, copper, copper nickel plating, aluminum, ABS, PVC, epoxy resin
Wire material	UL Series (UL1007), PVC, silicone, teflon; customizable length

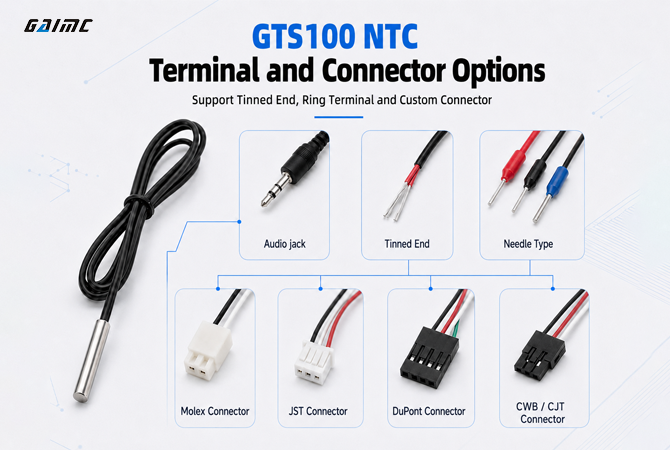

Connector / End	Molex, JST, Dupont, CWB, CJT; hung tin or with connector
Heat-shrinkable sleeve	PVC tube, glass fiber tube, teflon tube

Core Applications

🏠

Household & HVAC

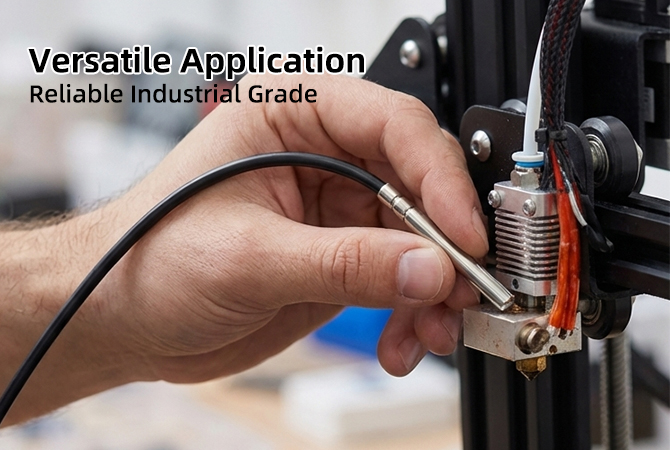

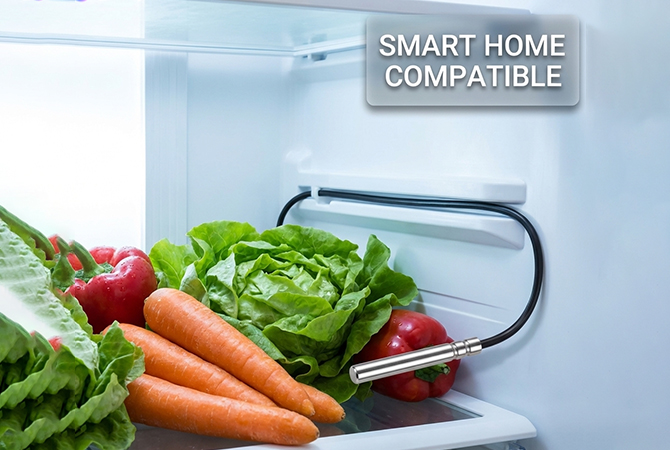

Air conditioners (household/car), refrigerators, floor heating, 3D printers.

🍳

Kitchen appliances

Induction cookers, soya-bean milk makers, electric ovens, deep fryers, barbecue pits.

🏭

Industrial equipment

Temperature monitoring in industrial machines, kitchen utensils, food service equipment.

💧

Floor heating & HVAC

Precise temperature control for underfloor heating and air conditioning systems.

Order Instruction

When placing an order, please inform us the following parameters:

Application and working environment (waterproof, acid/alkali, etc.)
R value R25 (refer to technical parameter table)
B value R25/50 (refer to technical parameter table)
Accuracy (±1% or ±2%)
Temperature range
Shell material (stainless steel, copper, copper nickel, aluminum, ABS, PVC, epoxy)
Shell pipe diameter and length (diameter*length)
Wire material and length (PVC, silicone, teflon)
End of line treatment (hung tin, with connector)

FAQ

What is the maximum operating temperature?

The NTC series can operate continuously from -40°C up to +300°C with special manufacturing process and reliable sealing.

Can the thermistor be used in water or harsh environments?

Yes. It is encapsulated with insulating, heat-conducting and waterproof materials. Optional stainless steel/copper shells and double-layer sealing make it suitable for waterproof and anti-corrosion applications (please specify environment when ordering).

What is the typical long-term drift?

Annual resistance value drift rate ≤1‰, and the average life exceeds 10 years under normal conditions.

What wire and connector options are available?

Common wire materials: PVC, silicone, teflon (UL series). End terminations: hung tin or various connectors (Molex, JST, Dupont, CWB, CJT). Length and type are customizable.

Precision NTC Temperature Sensing Solutions

Wide resistance range 1K~500K, B value 3270K~4650K, accuracy ±1% ~ ±2%, operating up to 300°C.
Customizable shells, wires and connectors for household appliances, automotive, kitchen equipment and industrial applications.
