GEC-EC485 Digital Conductivity Sensor | GAIMC

Product Overview

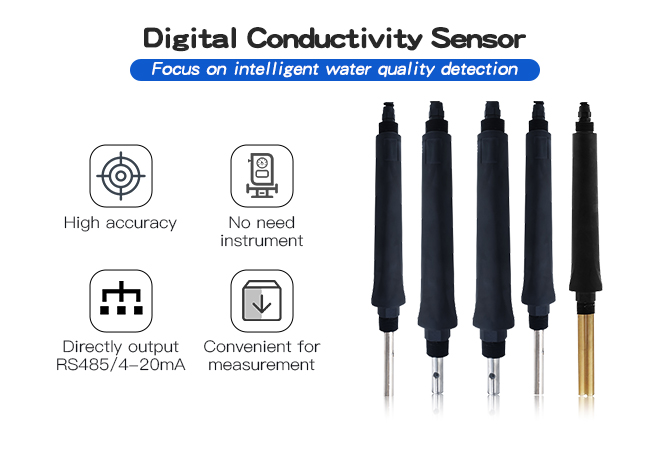

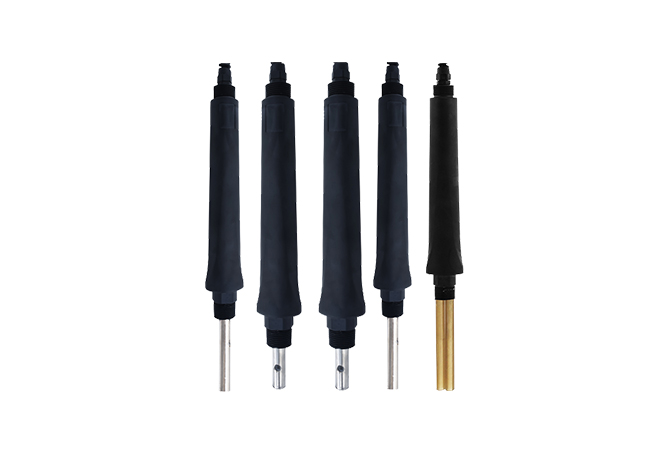

The GEC-EC485 is a new generation intelligent digital conductivity sensor independently developed by GAIMC, which can realize direct measurement without a host. It can detect conductivity (TDS) and temperature values in solutions in real time, and output 4-20mA analog signals to back-end equipment.

Equipped with RS485 interface, it can connect to computers through MODBUS protocol to realize remote data monitoring and recording. With high precision, good stability, long service life, fast response and low maintenance cost, it is widely used in continuous water quality monitoring of thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, food and tap water industries.

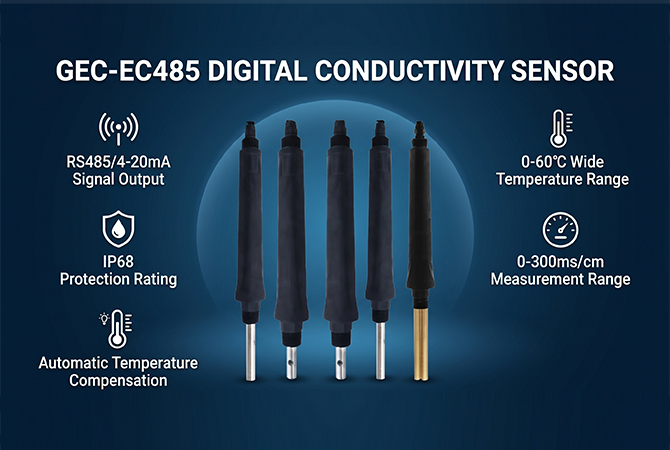

Key Features

🎯

High Accuracy

EC/TDS measurement accuracy up to ±2%F.S, temperature accuracy ±0.3℃ for reliable data.

📏

Wide Measurement Range

0~20ms/cm standard range, customizable to 300ms/cm for various industrial scenarios.

📡

Dual Signal Output

Direct output 4-20mA analog signal and RS485 digital signal, flexible connection with equipment.

🌡️

Automatic Temperature Compensation

Real-time temperature compensation ensures measurement accuracy at 0~60℃ working temperature.

🛡️

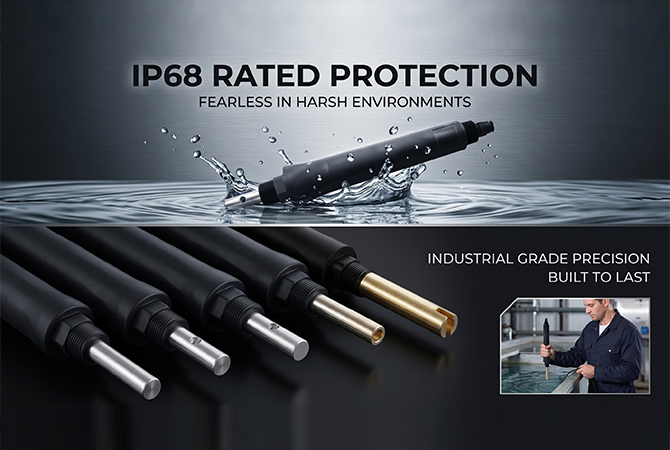

IP68 Protection

High-grade waterproof and dustproof, suitable for harsh industrial on-site water immersion environment.

🔋

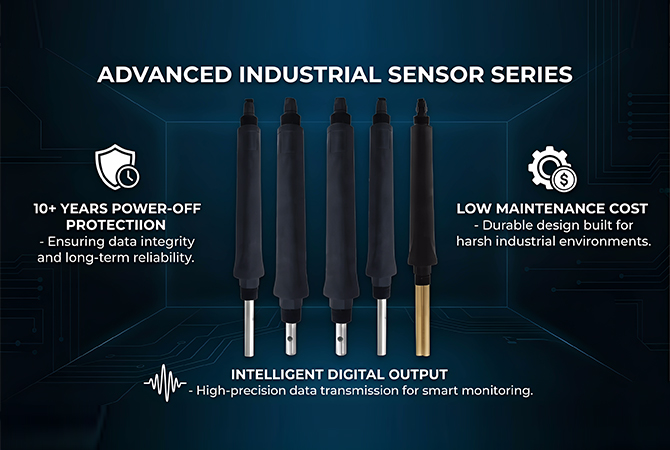

Long-term Power-off Protection

Power failure protection function for more than 10 years, no loss of configuration parameters.

Technical Specifications

Item	Details
Model	GEC-EC485
Measuring range	0~20ms/cm (Customized 300ms/cm)
Accuracy (EC/TDS)	±2%F.S
Temperature range	0~60℃
Temperature accuracy	±0.3℃
Signal Output	4-20mA, RS485 (Modbus protocol)
Power supply	12VDC / 24VDC
Protection grade	IP68
Installation thread	G3/4

Model Selection

GEC-EC485	Range	Power supply	Cable length	Note
GEC-EC485-□-□-□	0.01	-	-	0~20us/cm
	0.1	-	-	0~200us/cm
	1.0	-	-	0~2000us/cm
	10.0	-	-	0~20000us/cm
	30.0	-	-	0~300ms/cm
	-	12	-	12VDC
	-	24	-	24VDC
	-	-	05	5m (standard)
	-	-	**	Customized length
	Example: GEC-EC485-0.1-12-15 → 0~200us/cm, 12VDC, 15m cable

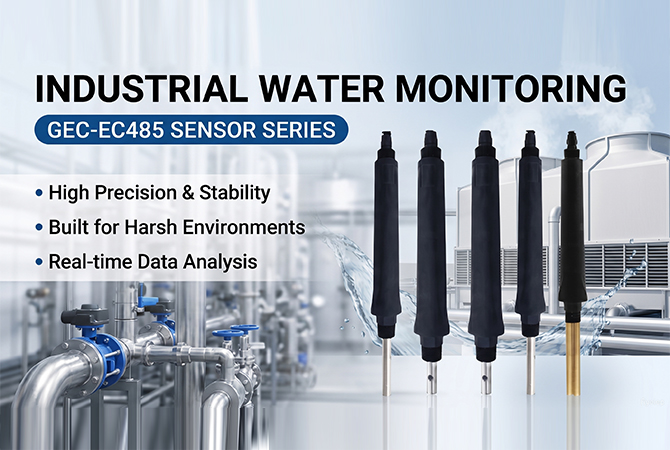

Core Applications

⚡

Thermal Power

Real-time monitoring of conductivity in power plant water treatment systems.

🧪

Chemical & Fertilizer

Solution concentration and conductivity monitoring in chemical production.

🚰

Water Supply & Treatment

Tap water, sewage and reclaimed water quality online detection.

🍜

Food & Pharmaceutical

Pure water and solution conductivity monitoring in food and pharmacy.

FAQ

What is the measurement accuracy of GEC-EC485?

The GEC-EC485 has an EC/TDS measurement accuracy of ±2%F.S and a temperature measurement accuracy of ±0.3℃, which can ensure the reliability of industrial on-site monitoring data.

What signal outputs does the sensor support?

It supports dual signal output: 4-20mA analog signal and RS485 digital signal (compatible with MODBUS protocol), which can be flexibly connected with various back-end equipment and computers.

What is the protection grade of GEC-EC485?

The sensor has an IP68 high-grade protection grade, with excellent waterproof and dustproof performance, and can be used in harsh industrial on-site even water immersion environment.

Intelligent Digital Conductivity Sensing Solution

GEC-EC485 digital conductivity sensor supports host-free direct measurement, dual signal output and IP68 high protection.
Customize measurement range, power supply and cable length according to your industrial on-site needs.
