1. Understanding Your pH Measurement Needs

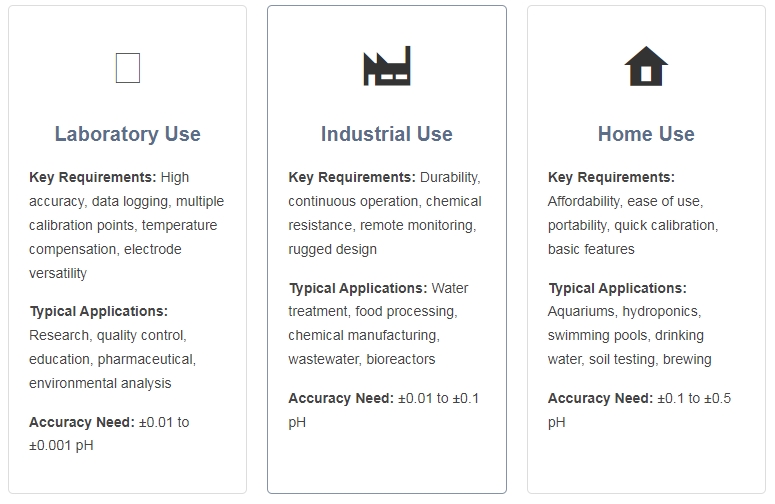

Choosing the right pH meter begins with understanding your specific application. The three main categories—laboratory, industrial, and home use—have fundamentally different requirements for accuracy, durability, features, and budget.
According to market research, the global pH meter market is projected to reach $2.3 billion by 2028, with laboratory instruments holding 42% market share, industrial applications at 38%, and consumer/home use at 20%.
2. Key Selection Criteria Comparison
| Selection Criteria | Laboratory pH Meter | Industrial pH Meter | Home pH Meter |
|---|---|---|---|
| Accuracy | ±0.001-0.01 pH | ±0.01-0.1 pH | ±0.1-0.5 pH |
| Resolution | 0.001-0.01 pH | 0.01-0.1 pH | 0.1 pH |
| Calibration Points | 3-5 points | 1-3 points | 1-2 points |
| Temperature Compensation | Automatic (ATC) with external probe | Automatic (ATC) integrated | Manual or basic ATC |
| Data Logging | Yes, with PC/cloud connectivity | Yes, with 4-20mA/Modbus output | Basic or none |
| Electrode Type | Interchangeable, specialized electrodes | Rugged, chemical-resistant | Fixed or basic combination |
| Price Range | $300 - $2,500+ | $500 - $5,000+ | $20 - $150 |
| Typical Lifespan | 5-10 years (with proper maintenance) | 3-7 years (harsh conditions) | 1-3 years |
3. Laboratory pH Meters: Precision and Versatility
3.1 When to Choose a Laboratory pH Meter
- Research requiring high precision (pharmaceutical, biomedical, chemical)
- Quality control laboratories (food, beverage, environmental)
- Educational institutions (universities, technical schools)
- When multiple sample types require different electrodes
- When data documentation and traceability are required
3.2 Key Features to Look For
Look for 0.001 pH resolution and accuracy of ±0.002-0.01 pH for research applications. Benchtop models typically offer the highest precision.
3 to 5-point calibration ensures accuracy across the entire pH range. Most laboratory meters support at least 3-point calibration.
External temperature probe for precise compensation. Essential for accurate measurements in varying temperature conditions.
Built-in memory, USB/RS232 output, and software connectivity for GLP compliance and data traceability.
BNC connector allows use of specialized electrodes: micro, flat surface, spear tip, and ISFET options.
Good Laboratory Practice features including calibration logging, date/time stamps, and user ID tracking.
Recommended Laboratory pH Meter Specifications:
- Benchtop design with large LCD display
- 0.001 pH resolution
- 3 to 5-point calibration
- Automatic buffer recognition (pH 4.01, 7.00, 10.01)
- Data storage for at least 200 measurements
- USB or RS232 output for PC connection
- GLP-compliant calibration records
4. Industrial pH Meters: Durability and Continuous Operation
4.1 When to Choose an Industrial pH Meter
- Continuous process monitoring (water treatment, chemical plants)
- Harsh environments (high temperature, corrosive chemicals)
- Remote locations requiring wireless monitoring
- Applications requiring integration with control systems (PLC/SCADA)
- When maintenance access is limited
4.2 Key Features to Look For
IP65/IP67 rated enclosures for dust and water resistance. Stainless steel or chemical-resistant housing for harsh environments.
Ultrasonic or mechanical cleaning systems reduce maintenance frequency in fouling applications like wastewater treatment.
Standard industrial signal for integration with PLC, DCS, and SCADA systems. Essential for automated process control.
Specialized electrodes for measurements up to 130°C (266°F) for sterilization and high-temperature processes.
Gel-filled reference systems and solid-state designs reduce refilling requirements. Some offer 12+ months between maintenance.
Wireless options (4G, LoRa, WiFi) for remote site monitoring without physical visits.
Recommended Industrial pH Meter Specifications:
- Panel-mounted or inline process design
- IP65 or higher protection rating
- 4-20 mA isolated output with HART protocol
- Automatic temperature compensation (ATC)
- Self-diagnostic capabilities
- Wide power supply range (12-24V DC or 110-240V AC)
- Replaceable reference junction for extended life
5. Home pH Meters: Affordability and Ease of Use
5.1 When to Choose a Home pH Meter
- Aquarium and fish tank maintenance
- Hydroponics and gardening
- Swimming pool and spa testing
- Home brewing and winemaking
- Drinking water quality checking
- Soil testing for gardening
5.2 Key Features to Look For
$20-$150 range. Basic models start under $30, while premium home meters with ATC cost $80-$150.
One or two-point calibration with automatic buffer recognition. Some models offer single-button calibration.
Handheld or pocket-sized for easy use. Water-resistant design for aquarium and pool applications.
Long battery life (500+ hours) with auto-off feature to preserve power. Replaceable or rechargeable batteries.
IP67-rated electrodes for submersion. Important for aquarium and outdoor use.
Large LCD display with clear pH readings. Some models include temperature display.
Recommended Home pH Meter Specifications:
- Pocket-sized or pen-style design
- 0.1 pH resolution
- One or two-point calibration
- Automatic temperature compensation (ATC) or manual
- Waterproof (IP67) for aquarium use
- Replaceable electrode (premium models)
- Auto-off function to preserve battery
6. Electrode Selection Guide
The electrode is the most critical component of any pH meter. Different applications require different electrode designs:
| Electrode Type | Best For | Key Features |
|---|---|---|
| Standard Combination | General laboratory and field use | Most common, affordable, good for aqueous samples |
| Microelectrode | Small sample volumes (50 μL - 1 mL) | Tip diameter as small as 1.5mm, ideal for microplates |
| Flat Surface | Semi-solids (food, skin, paper, agar) | Flat sensing surface for surface measurements |
| Spear Tip | Solid samples (cheese, meat, fruit, soil) | Sharp tip for piercing without sample preparation |
| High-Temperature | Industrial processes, sterilization | Operates up to 130°C, pressure-resistant |
| Low-Ionic Strength | Deionized water, rainwater, distilled water | Special junction design for high resistance samples |
| ISFET (Solid-State) | High-fouling, food, field use | No glass bulb, break-resistant, no hydration needed |
Important: Always match the electrode to your sample type. Using a standard electrode for semi-solid samples can damage the glass bulb and lead to inaccurate readings.
7. Budget Considerations and Price Ranges
Basic portable meters, ±0.1 pH accuracy, 1-2 point calibration, suitable for aquarium, hydroponics, and general home use
Good quality portable or benchtop meters, ±0.01 pH accuracy, 2-3 point calibration, data storage, ATC
High-precision benchtop meters, ±0.002-0.01 pH accuracy, 3-5 point calibration, GLP compliance, software
Rugged inline systems, ±0.01-0.1 pH, 4-20mA output, self-cleaning, remote monitoring, high durability
7.1 Hidden Costs to Consider
- Electrode Replacement: $50-$300 every 1-3 years depending on usage
- Calibration Solutions: $20-$50 per year for buffer solutions
- Storage Solutions: Electrode storage solution to maintain performance
- Maintenance Kits: Cleaning solutions, refill electrolytes, replacement parts
- Certification: NIST-traceable calibration certificates ($50-$200/year)
8. Selection Checklist and Decision Matrix
Before Purchasing, Ask Yourself:
8.1 Decision Matrix by Application
| Application | Recommended Type | Accuracy | Key Features | Budget Range |
|---|---|---|---|---|
| Pharmaceutical QC | Benchtop Laboratory | ±0.002-0.01 pH | GLP compliance, data logging, multiple electrodes | $800-2,500 |
| Environmental Monitoring | Portable Field | ±0.01-0.02 pH | Rugged, waterproof, data logging, GPS | $400-1,200 |
| Wastewater Treatment | Industrial Inline | ±0.05-0.1 pH | Self-cleaning, 4-20mA output, remote monitoring | $1,500-4,000 |
| Food Processing | Industrial with spear tip | ±0.05-0.1 pH | Sanitary design, high-temperature sterilization | $1,000-3,000 |
| Aquarium/Hydroponics | Home/Pocket | ±0.1 pH | Waterproof, easy calibration, affordable | $30-100 |
| Research Laboratory | Benchtop High-End | ±0.001-0.002 pH | ISFET option, multi-parameter, PC software | $1,200-3,500 |
| Swimming Pool测试/Spa测试 | Home Test Strips/Pocket | ±0.2-0.5 pH | Simple operation, waterproof | $20-60 |
9. Top Brands Comparison
几十年Expertise, wide electrode selection月下旬Excellent portable options, good value月下旬Field applications, multi-parameter月下旬Good educational and starter options月下旬Excellent value home/portable meters| Brand | Laboratory | Industrial | Home/Portable | Price Range | Key Strength |
|---|---|---|---|---|---|
| METTLER TOLEDO; | ★★★★★ | ★★★★★ | ★★★☆☆ | $$$ | Highest accuracy, GLP compliance |
| Thermo Fisher (Orion) | ★★★★★ | ★★★★☆ | ★★★★☆ | $$-$$$ | |
| Hach | ★★★★☆ | ★★★★★ | ★★★☆☆ | $$-$$$ | Industrial ruggedness, process control |
| Hanna Instruments | ★★★★☆ | ★★★★☆ | ★★★★★ | $-$$ | |
| YSI | ★★★★☆ | ★★★★☆ | ★★★★☆ | $$-$$$ | |
| Oakton | ★★★★☆ | ★★★☆☆ | ★★★★☆ | $-$$ | |
| Apera Instruments | ★★★☆☆ | ★★★☆☆ | ★★★★★ | $-$$ |
10. Frequently Asked Questions
Q: Can I use a home pH meter for laboratory work?
A: Not recommended. Home meters lack the accuracy (±0.1 pH vs ±0.01 pH), calibration options, and data traceability required for laboratory applications.
Q: How often should I calibrate my pH meter?
A: Laboratory meters: before each use or daily. Industrial meters: weekly to monthly depending on process. Home meters: weekly for critical applications, or before each use.
Q: What's the lifespan of a pH electrode?
A: With proper care: 1-2 years for general use, 6-12 months for harsh conditions, 2-3 years for high-quality laboratory electrodes.
Q: Is automatic temperature compensation (ATC) necessary?
A: Yes for any application where temperature varies. Without ATC, temperature changes cause significant errors (approximately 0.03 pH per °C).
Q: Can I use the same pH meter for different sample types?
A: Yes if you use appropriate electrodes. Laboratory meters allow electrode swapping. Industrial and home meters often have fixed electrodes.
11. Summary: Quick Selection Guide
Choose a Laboratory pH Meter if: You need high precision (±0.01 pH or better), require data logging for compliance, work with multiple sample types, and have a budget of $300+.
Choose an Industrial pH Meter if: You need continuous process monitoring, require 4-20mA output for control systems, operate in harsh environments, and have a budget of $800+.
Choose a Home pH Meter if: You need basic pH checking for aquariums, hydroponics, or pools, want an affordable and easy-to-use option, and have a budget under $150.
Remember: The best pH meter is the one that meets your specific needs without paying for unnecessary features. Consider total cost of ownership including electrodes, calibration solutions, and maintenance when making your decision.
